396-3815Y1 SureFire PumpRight for Raven RCM 12 Revised 01/16/2018
The recommended check valve for most PumpRight installations is the
10 lb check with 3/8” hose barbs. This works with 3/8” rubber hose which
SureFire recommends for most applications over 10 GPA on 30” rows. The
recommended minimum system operating pressure for this check is 20 psi,
to ensure all checks open fully.
Check Valves

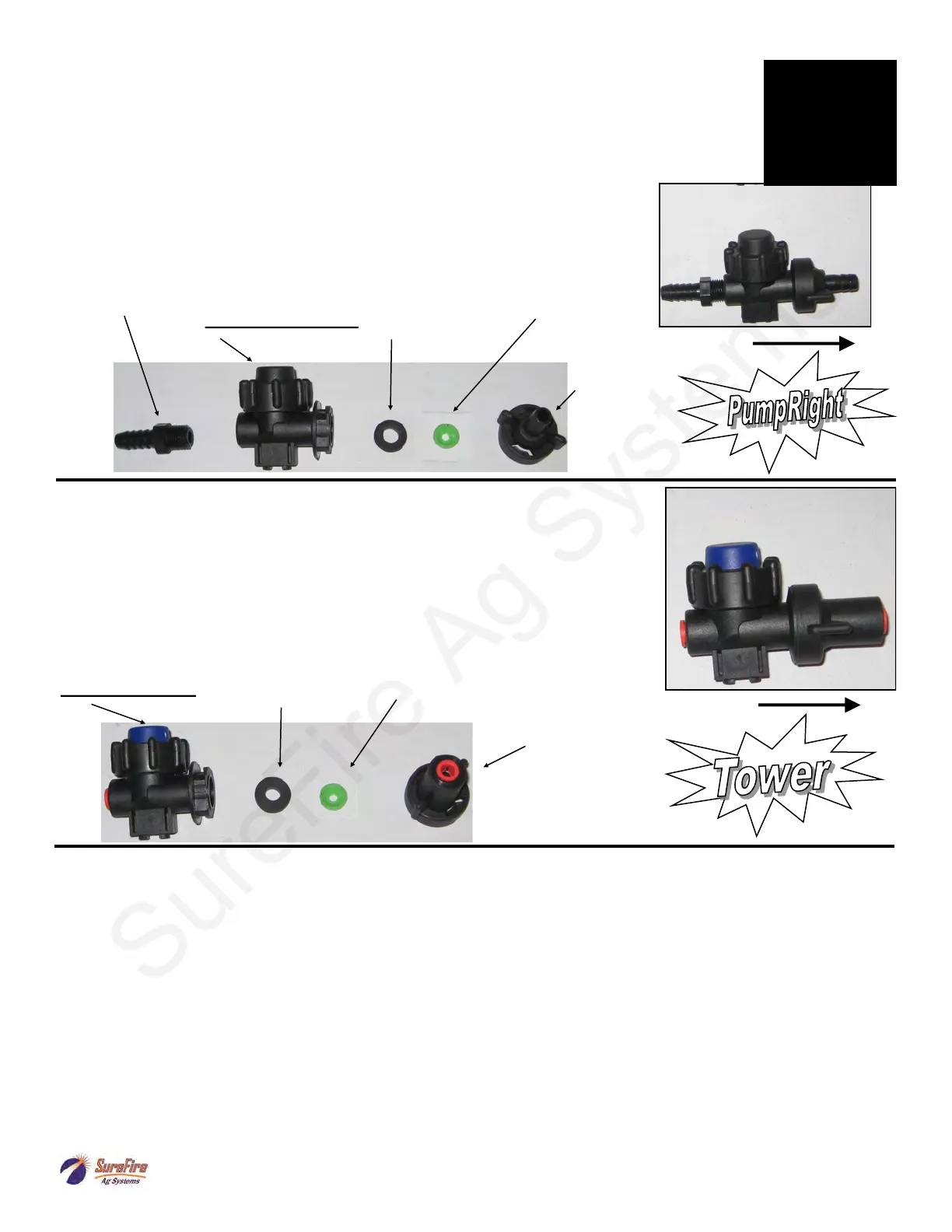

Complete Assembly
PN 136-10-06HB06HB
101-025038-H 133-03-40501-00
Black Cap = 10 PSI
Disc Orifice
(optional)
133-03-40160
Gasket
Inlet
Outlet—
RadialLock
Cap
4 lb check valves are typically used with electric pump systems.
SureFire recommends this valve for use with 1/4” tubing applying up to 10
GPA on 30” rows. The recommended minimum system operating pressure
for this check is 10 psi, to ensure all checks open fully.
133-03-40502-P4
Blue Cap = 4 PSI
Disc Orifice
(optional)
133-03-40160
Gasket
Inlet
Outlet—
RadialLock
Cap
4 lb check valve with 1/4” quick connect fittings
Assembly Part Number Description Suggested Uses (30” rows)
136-10-04QC04QC 1/4" QC x 1/4" QC 10 lb < 10 GPA with PumpRight & 1/4” Tubing
136-10-06QC06QC 3/8" QC x 3/8" QC 10 lb With 3/8” tubing plumbing
136-04-06HB06HB 3/8" HB x 3/8" HB 4 lb > 10 GPA with Electric Pumps
136-04-08HB08HB 1/2" HB x 1/2" HB 4 lb > 50 GPA with PumpRight
136-10-08HB08HB 1/2" HB x 1/2" HB 10 lb > 50 GPA with PumpRight
Special Purpose Check Valve Assemblies
132-40435-05
Complete Assembly
PN 136-04-04QC04QC
10 lb check valve with 3/8” hose barbs
B
Components
Liquid
132-40424-05
FLOW
FLOW
