396-3815Y1 SureFire PumpRight for Raven RCM 13 Revised 01/16/2018

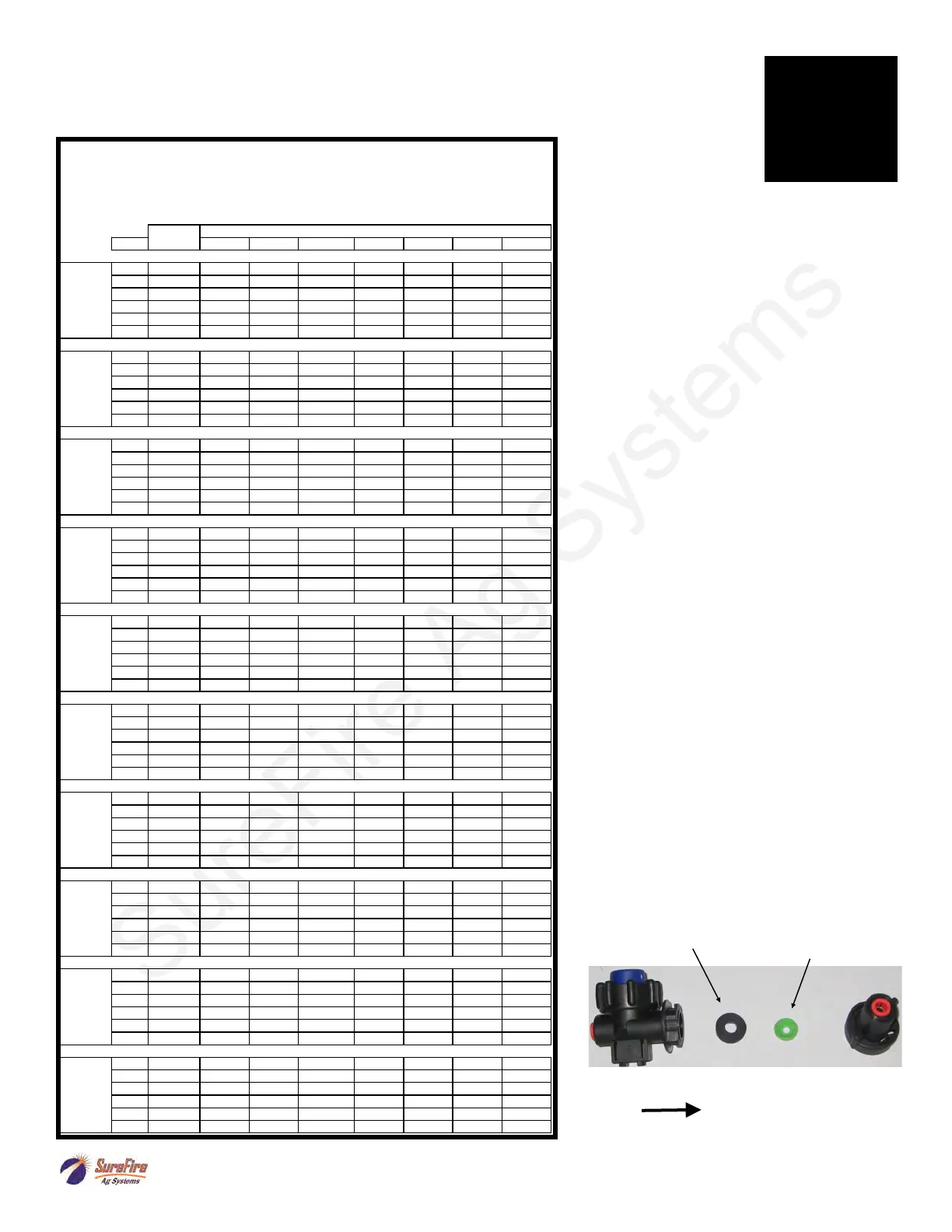

Colored Disc Orifice Chart for 30” rows
B
Components
Liquid
PumpRight Pressure
Recommendations (with 10 lb check
valves):
• Minimum 20 PSI
• Maximum 80 PSI
Tower Electric Pump Pressure
Recommendations (with 4 lb check
valves):
• Minimum 10 PSI
• Maximum 30 PSI
Chart is for 28-0-0 Fertilizer @ 70°
• Heavier fertilizers (like 10-34-0) will
have 5-15% less flow than chart
indicates for a certain pressure
• Cold fertilizers will cause system
pressure to increase at a given
application rate.
• Tower Electric Pump Systems will
have reduced flow and increased
electrical current draw due to cold
fertilizer increasing operating
pressure. Use the largest orifice
possible for cold weather
operation.
PSI 4.0 4.5 5.0 5.5 6.0 6.5 7.0
10 0.033 1.62 1.44 1.30 1.18 1.08 1.00 0.93
20 0.046 2.28 2.02 1.82 1.66 1.52 1.40 1.30
30 0.057 2.80 2.49 2.24 2.04 1.87 1.73 1.60
40 0.065 3.24 2.88 2.59 2.36 2.16 1.99 1.85
50 0.073 3.64 3.23 2.91 2.64 2.42 2.24 2.08
60 0.081 3.99 3.54 3.19 2.90 2.66 2.45 2.28
10 0.050 2.50 2.22 2.00 1.82 1.66 1.54 1.43
20 0.072 3.55 3.15 2.84 2.58 2.37 2.18 2.03
30 0.088 4.34 3.85 3.47 3.15 2.89 2.67 2.48
40 0.101 4.99 4.44 4.00 3.63 3.33 3.07 2.85
50 0.112 5.56 4.95 4.45 4.05 3.71 3.42 3.18
60 0.124 6.13 5.45 4.91 4.46 4.09 3.77 3.50
10 0.070 3.46 3.08 2.77 2.52 2.31 2.13 1.98
20 0.098 4.86 4.32 3.89 3.54 3.24 2.99 2.78
30 0.120 5.96 5.30 4.77 4.33 3.97 3.67 3.40
40 0.139 6.88 6.11 5.50 5.00 4.58 4.23 3.93
50 0.156 7.71 6.85 6.17 5.61 5.14 4.74 4.41
60 0.170 8.41 7.48 6.73 6.12 5.61 5.18 4.81
10 0.094 4.64 4.13 3.71 3.38 3.10 2.86 2.65
20 0.132 6.53 5.80 5.22 4.75 4.35 4.02 3.73
30 0.162 8.02 7.13 6.41 5.83 5.34 4.93 4.58
40 0.187 9.24 8.22 7.39 6.72 6.16 5.69 5.28
50 0.209 10.34 9.19 8.27 7.52 6.89 6.36 5.91
60 0.228 11.30 10.05 9.04 8.22 7.53 6.95 6.46
10 0.119 5.91 5.26 4.73 4.30 3.94 3.64 3.38
20 0.169 8.37 7.44 6.69 6.08 5.58 5.15 4.78
30 0.207 10.25 9.11 8.20 7.45 6.83 6.31 5.86
40 0.239 11.83 10.51 9.46 8.60 7.88 7.28 6.76
50 0.267 13.23 11.76 10.58 9.62 8.82 8.14 7.56
60 0.293 14.50 12.89 11.60 10.55 9.67 8.92 8.29
10 0.149 7.36 6.54 5.89 5.35 4.91 4.53 4.21
20 0.210 10.38 9.23 8.31 7.55 6.92 6.39 5.93
30 0.257 12.70 11.29 10.16 9.24 8.47 7.82 7.26
40 0.296 14.67 13.04 11.74 10.67 9.78 9.03 8.39
50 0.332 16.43 14.60 13.14 11.95 10.95 10.11 9.39
60 0.363 17.96 15.96 14.37 13.06 11.97 11.05 10.26
10 0.218 10.78 9.58 8.62 7.84 7.18 6.63 6.16
20 0.307 15.20 13.51 12.16 11.05 10.13 9.35 8.69
30 0.376 18.62 16.55 14.89 13.54 12.41 11.46 10.64
40 0.435 21.51 19.12 17.21 15.64 14.34 13.24 12.29
50 0.486 24.05 21.38 19.24 17.49 16.03 14.80 13.74
60 0.532 26.33 23.40 21.06 19.15 17.55 16.20 15.04
10 0.351 17.39 15.46 13.91 12.65 11.59 10.70 9.94
20 0.496 24.57 21.84 19.66 17.87 16.38 15.12 14.04
30 0.608 30.09 26.75 24.08 21.89 20.06 18.52 17.20
40 0.702 34.74 30.88 27.79 25.26 23.16 21.38 19.85
50 0.785 38.86 34.54 31.08 28.26 25.90 23.91 22.20
60 0.859 42.53 37.81 34.03 30.93 28.36 26.18 24.31
10 0.506 25.06 22.27 20.05 18.22 16.70 15.42 14.32
20 0.715 35.39 31.46 28.32 25.74 23.60 21.78 20.23
30 0.876 43.37 38.55 34.69 31.54 28.91 26.69 24.78
40 1.009 49.94 44.39 39.95 36.32 33.29 30.73 28.54
50 1.133 56.07 49.84 44.86 40.78 37.38 34.51 32.04
60 1.239 61.33 54.51 49.06 44.60 40.88 37.74 35.04
10 0.686 33.95 30.18 27.16 24.69 22.63 20.89 19.40
20 0.973 48.19 42.83 38.55 35.04 32.12 29.65 27.53
30 1.186 58.70 52.18 46.96 42.69 39.13 36.12 33.54
40 1.372 67.90 60.35 54.32 49.38 45.27 41.78 38.80
50 1.531 75.78 67.36 60.63 55.12 50.52 46.64 43.30
60 1.681 83.23 73.98 66.58 60.53 55.49 51.22 47.56
Brown
(41)
Green
(110)
Orange
(46)
Maroon
(52)
Red (63)
Blue (80)
Yellow
(95)
MPH
Pink (24)
Gray (30)
Black (35)
Gal/Min
28-0-0
Orifice
Color
(Approx
Size)
30” Spacing
Colored Disc Orifice assembles under the
check valve cap in most cases. (Drop the
orifice with the hole down into the cap,
then put the gasket on top of it.) The ori-
fice can also be installed in a manifold
(common on grain drills).
Disc Orifice
Gasket
FLOW
1/4 Turn Cap is Outlet
SureFire Ag Systems
