Suzuki DR-Z400S 2001 User Manual

ENGINE 3-65
PAIR (AIR SUPPLY) SYSTEM
(FOR E-02, 19, 54)

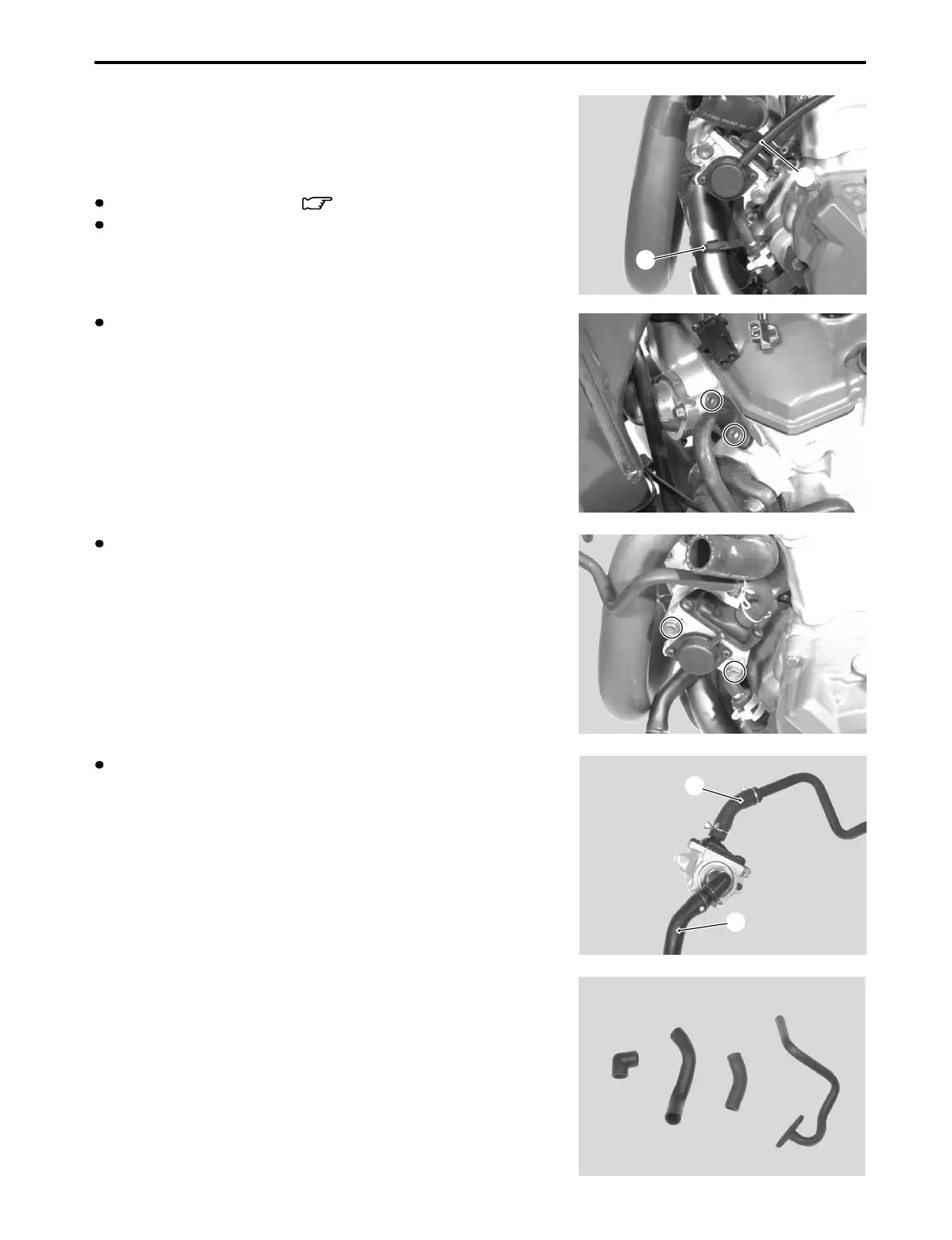

REMOVAL
Remove the left radiator. ( 5-6 and 5-7)
Disconnect the clamp 1 and vacuum hose 2.
Remove the PAIR (air supply) pipe from the cylinder head.
Remove the PAIR (air supply) valve assembly.
Remove the PAIR (air supply) pipe 3 and air cleaner hose 4.
INSPECTION
HOSE AND PIPE
Inspect each hose and pipe for wear or damage. If any damages
are found, replace each hose and pipe with a new one.
1
2
3
4

Suzuki DR-Z400S 2001 Specifications

General

Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Engine Type	398cc, 4-stroke, liquid-cooled, DOHC
Front Brakes	Single hydraulic disc
Rear Brakes	Single hydraulic disc
Ground Clearance	300 mm (11.8 in.)
Wheelbase	1, 485 mm (58.5 in)
Fuel Tank Capacity	10.0 L (2.6 US gal.)
Fuel System	Mikuni BSR36, single carburetor
