CHASSIS 6-17

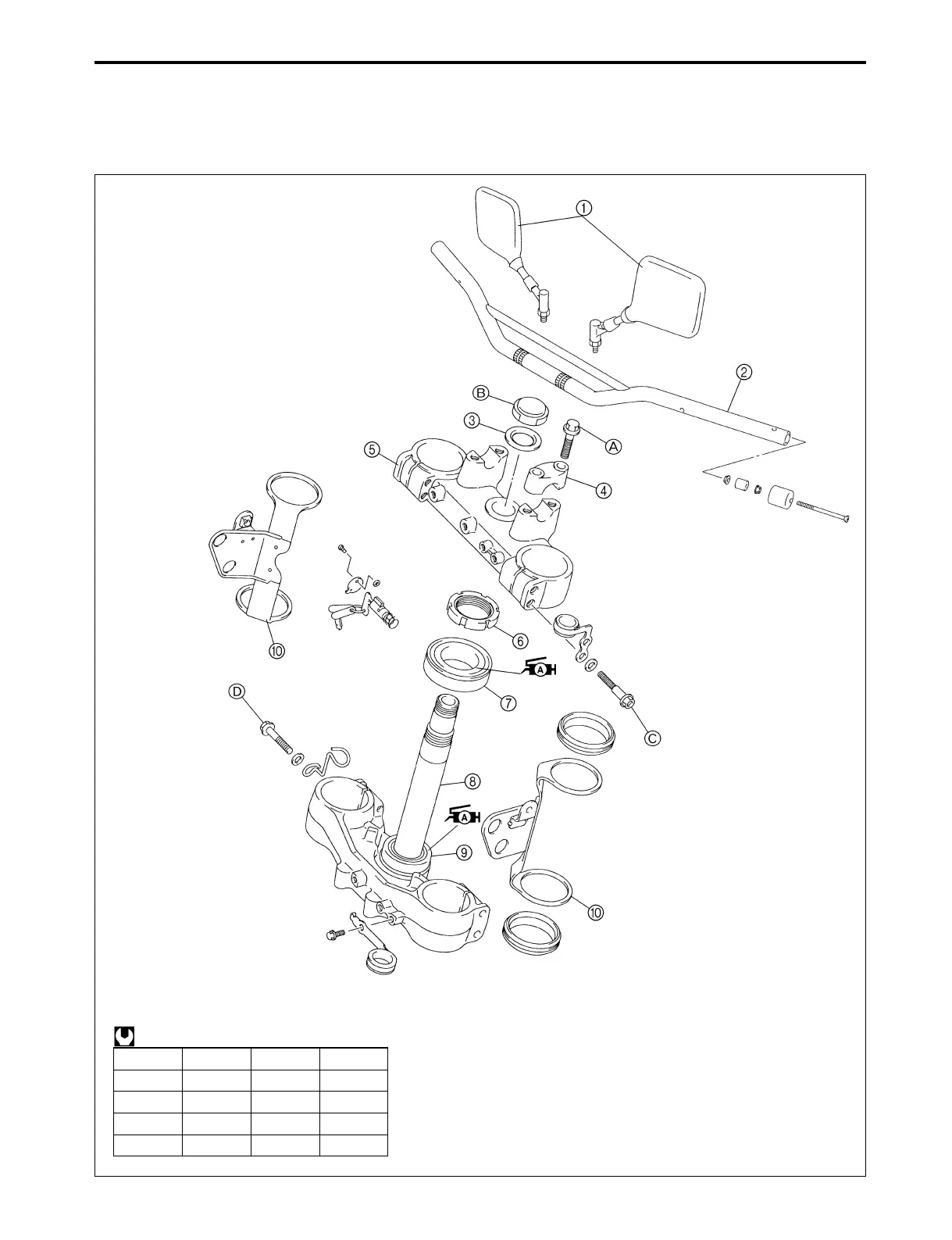

STEERING
CONSTRUCTION
1 Rear view mirror
2 Handlebar
3 Washer
4 Handlebar clamp
5 Steering stem upper bracket
6 Steering stem nut
7 Bearing
8 Steering stem
9 Bearing
0 Headlight cover bracket
A Handlebar clamp bolt
B Steering stem head nut
C Front fork upper clamp bolt
D Front fork lower clamp bolt
ITEM N·m kgf-m lb-ft
A 23 2.3 16.5
B 90 9.0 65.0
C 30 3.0 21.5
D 32 3.2 23.0

Suzuki DR-Z400S 2001 Specifications

General

Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Engine Type	398cc, 4-stroke, liquid-cooled, DOHC
Front Brakes	Single hydraulic disc
Rear Brakes	Single hydraulic disc
Ground Clearance	300 mm (11.8 in.)
Wheelbase	1, 485 mm (58.5 in)
Fuel Tank Capacity	10.0 L (2.6 US gal.)
Fuel System	Mikuni BSR36, single carburetor
