3-54 ENGINE
OIL PUMP

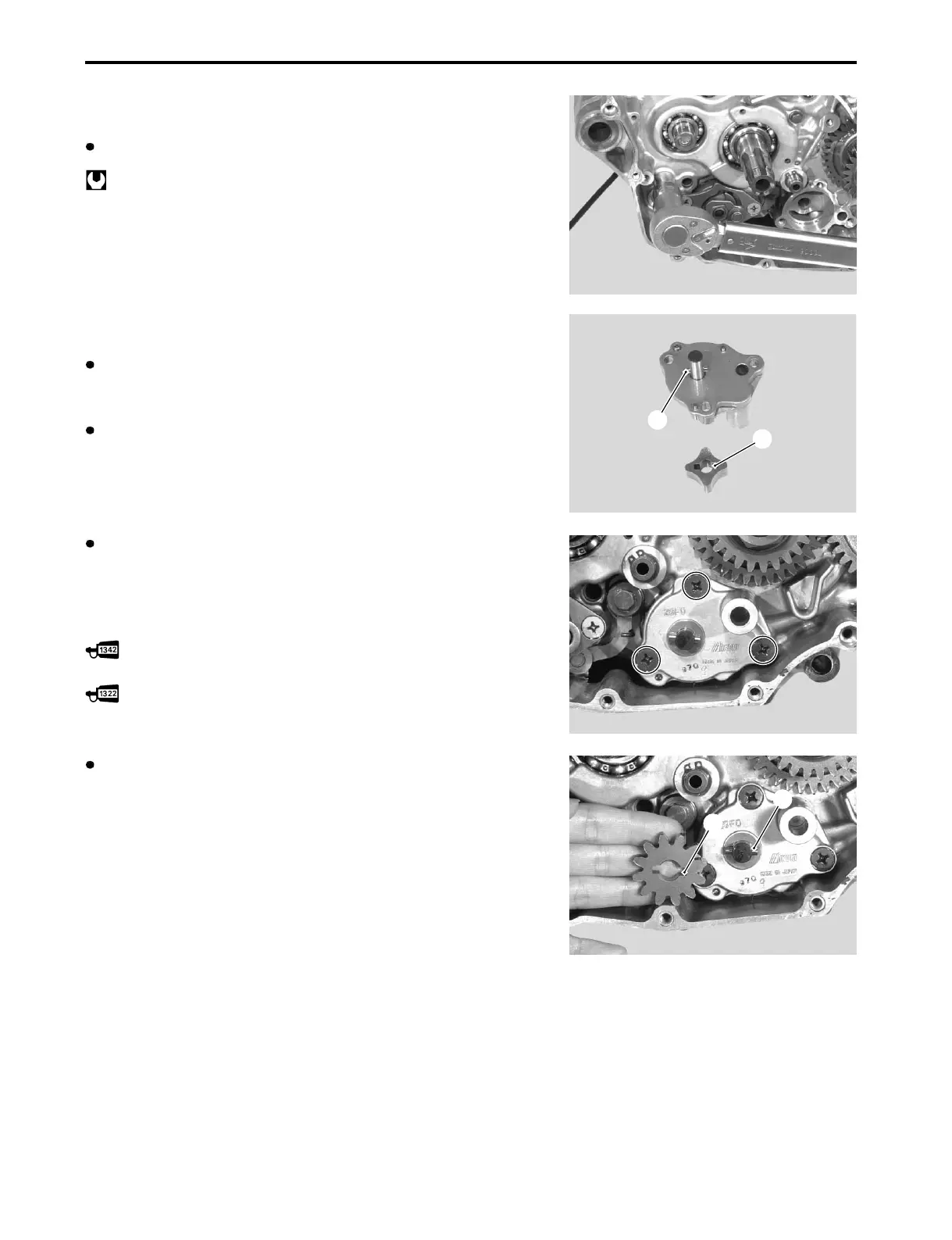

Before mounting the oil pump, apply engine oil to the sliding
surfaces of the oil pump case, outer rotor, inner rotor, and
shaft.
When installing the inner rotor, align the pin 1 with the
groove 2.
Apply a small quantity of THREAD LOCK “1342” or THREAD
LOCK SUPER “1322” to the threaded parts of the oil pump
mounting screws, and then tighten them.
For USA
99000-32050: THREAD LOCK “1342”
For the other countries
99000-32110: THREAD LOCK SUPER “1322”
When installing the oil pump driven gear, align the pin 3 with
the groove 4.
4
3
1
2
GEARSHIFT SHAFT
Tighten the gearshift arm stopper to the specified torque.
Gearshift arm stopper: 19 N·m (1.9 kgf-m, 13.5 lb-ft)
