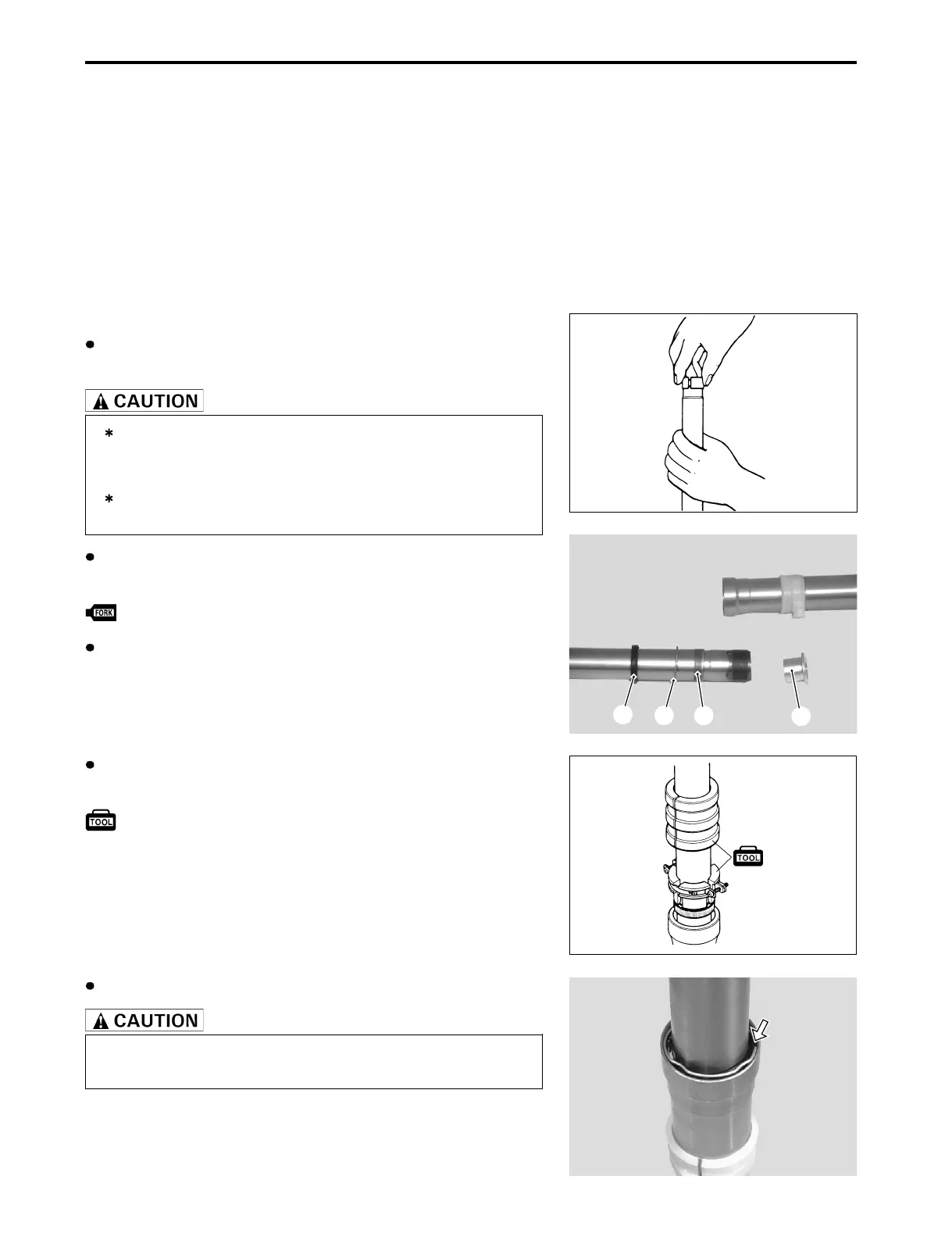

6-14 CHASSIS
Insert the inner tube into the outer tube and install the oil seal
using the special tool.
09940-52861: Front fork oil seal installer set
Install the oil seal stopper ring.
Make sure that the oil seal stopper ring is fitted se-
curely.
REASSEMBLY AND REMOUNTING
Reassemble and remount the front fork in the reverse order of
removal and disassembly. Pay special attention to the following
points:
ANTIFRICTION METALS, OIL SEAL, AND DUST SEAL
Hold the inner tube vertically, clean the metal groove, and
install the inner tube antifriction metal by hand.
Do not damage the Teflon coated surface of the in-
ner tube antifriction metal when mounting the inner
tube.
Apply fork oil to the inner and outer tube antifriction
metals.
Apply front fork oil to the lip of oil seal lightly before installing
it.
99000-99001-SS5: SUZUKI FORK OIL SS-05
Install the oil lock piece 1, outer tube antifriction metal 2, oil
seal retainer 3, and oil seal 4 onto the inner tube.
2
1
4
3
