8-12 SERVICING INFORMATION

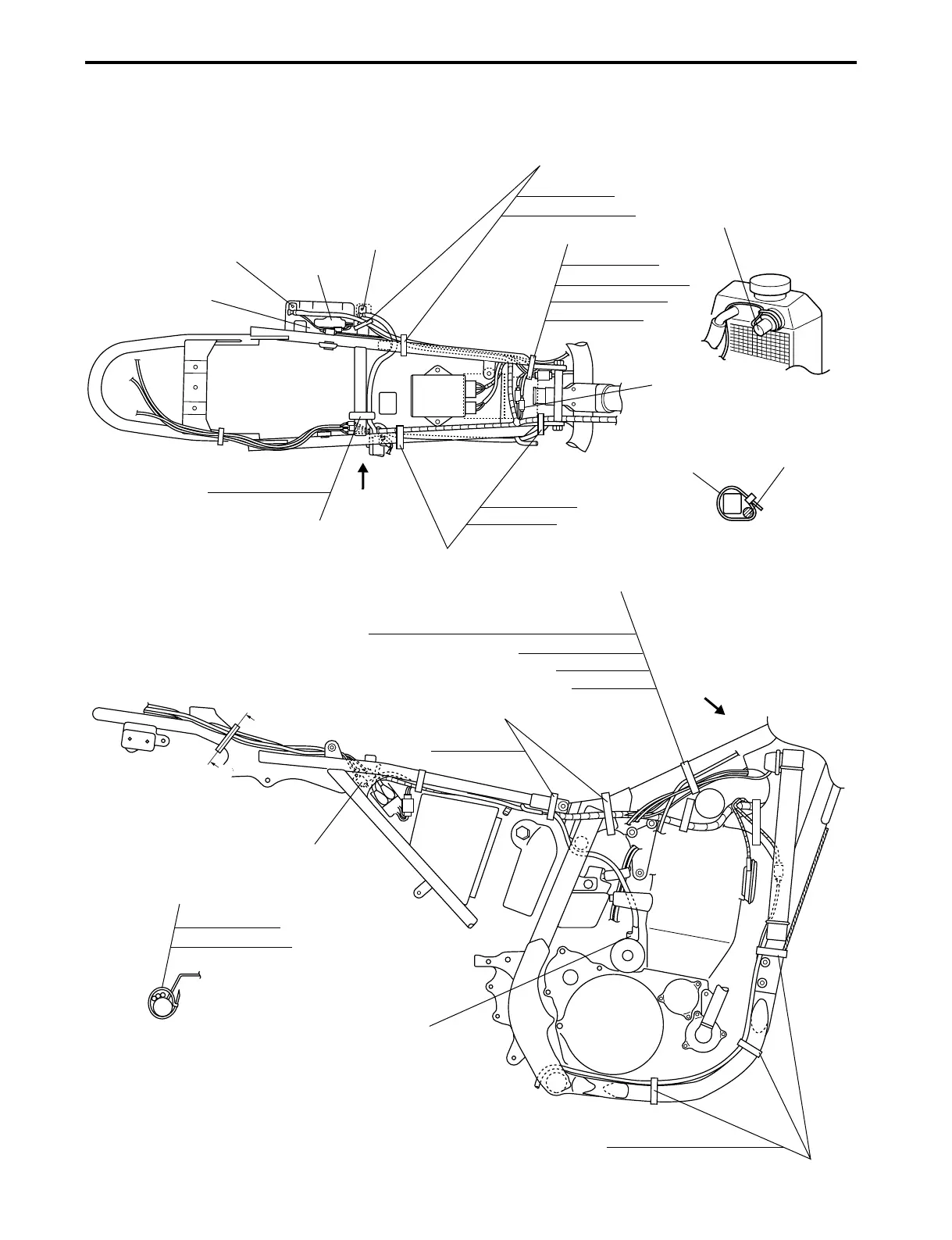

WIRE HARNESS, CABLE, AND HOSE ROUTING
WIRE ROUTING
1
- battery terminal
+ battery terminal
Fuse
Clamp
Wire harness
- battery lead wire
Clamp
Wire harness
- battery lead wire
Side stand switch
Neutral switch
Engine coolant temperature
thermoswitch
+ battery lead wire
Clamp
Clamp
Wire harness
Stater moter
A
Clamp
+ battery lead wire
VIEW B
VIEW A
Clamp
Clamp
Wire harness
Engine coolant temperature thermoswitch
Engine stop switch
Throttle cable
Clutch cable
B
Clamp
Turn signal light
Brake light/taillight
C – C
Starter motor terminal
Clamp
Front brake light switch
2
C
C
2
1 Set + battery and - battery coupler between frame and fuse holder.
2 Push the couplers into the frame.

Suzuki DR-Z400S 2001 Specifications

General

Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Engine Type	398cc, 4-stroke, liquid-cooled, DOHC
Front Brakes	Single hydraulic disc
Rear Brakes	Single hydraulic disc
Ground Clearance	300 mm (11.8 in.)
Wheelbase	1, 485 mm (58.5 in)
Fuel Tank Capacity	10.0 L (2.6 US gal.)
Fuel System	Mikuni BSR36, single carburetor
