3-40 ENGINE

TRANSMISSION

DISASSEMBLY

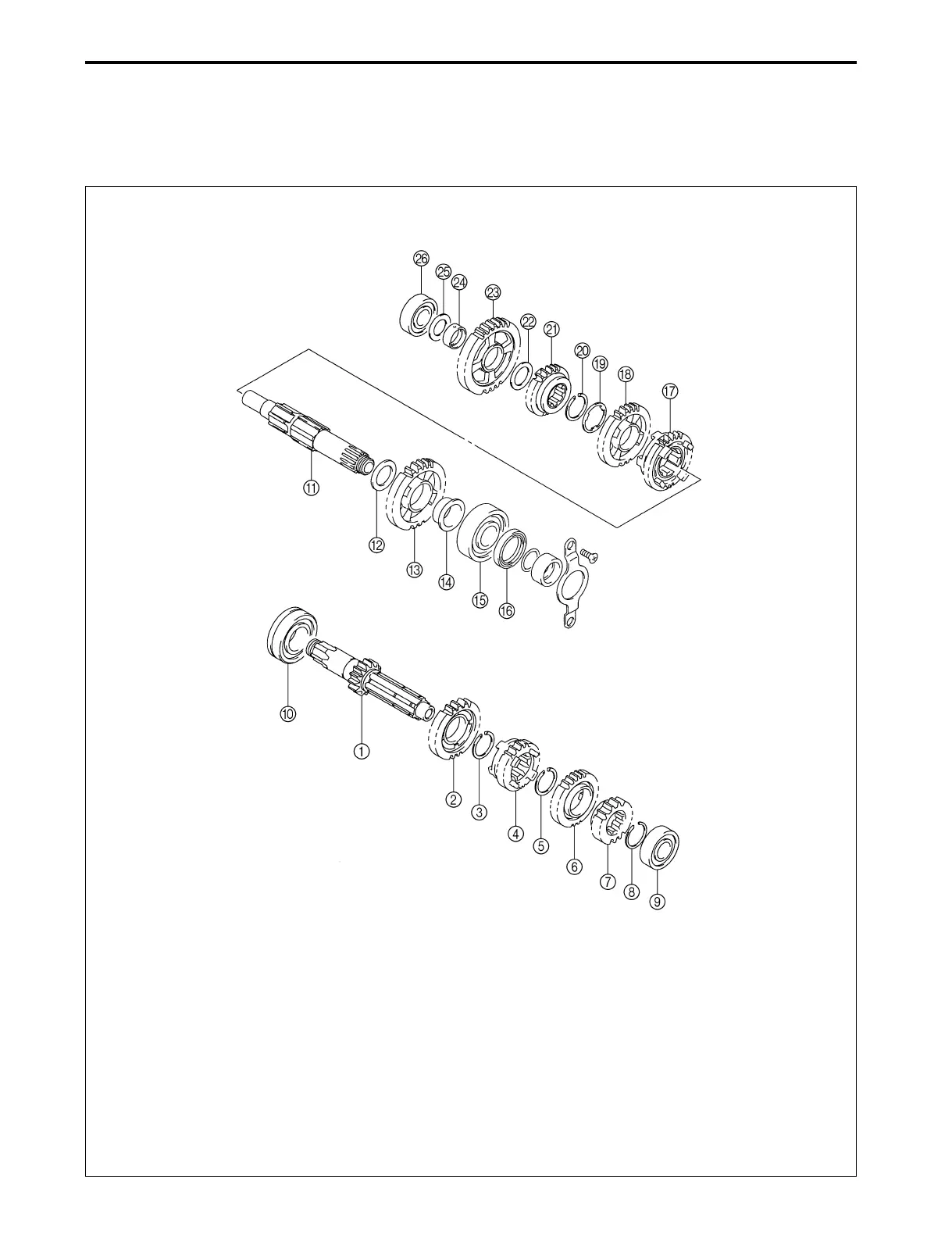

Disassemble the transmission gears as shown.

1 Countershaft

2 5th (top) drive gear

3 Circlip

4 3rd drive gear

5 Circlip

6 4th drive gear

7 2nd drive gear

8 Circlip

9 Bearing

0 Bearing

A Driveshaft

B Washer

C 2nd driven gear

D Spacer

E Bearing

F Oil seal

G 4th driven gear

H 3rd driven gear

I Washer

J Circlip

K 5th (top) driven gear

L Washer

M 1st (low) driven gear

N Spacer

O Washer

P Bearing

Questions and Answers:

General

Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Engine Type	398cc, 4-stroke, liquid-cooled, DOHC
Front Brakes	Single hydraulic disc
Rear Brakes	Single hydraulic disc
Ground Clearance	300 mm (11.8 in.)
Wheelbase	1, 485 mm (58.5 in)
Fuel Tank Capacity	10.0 L (2.6 US gal.)
Fuel System	Mikuni BSR36, single carburetor
