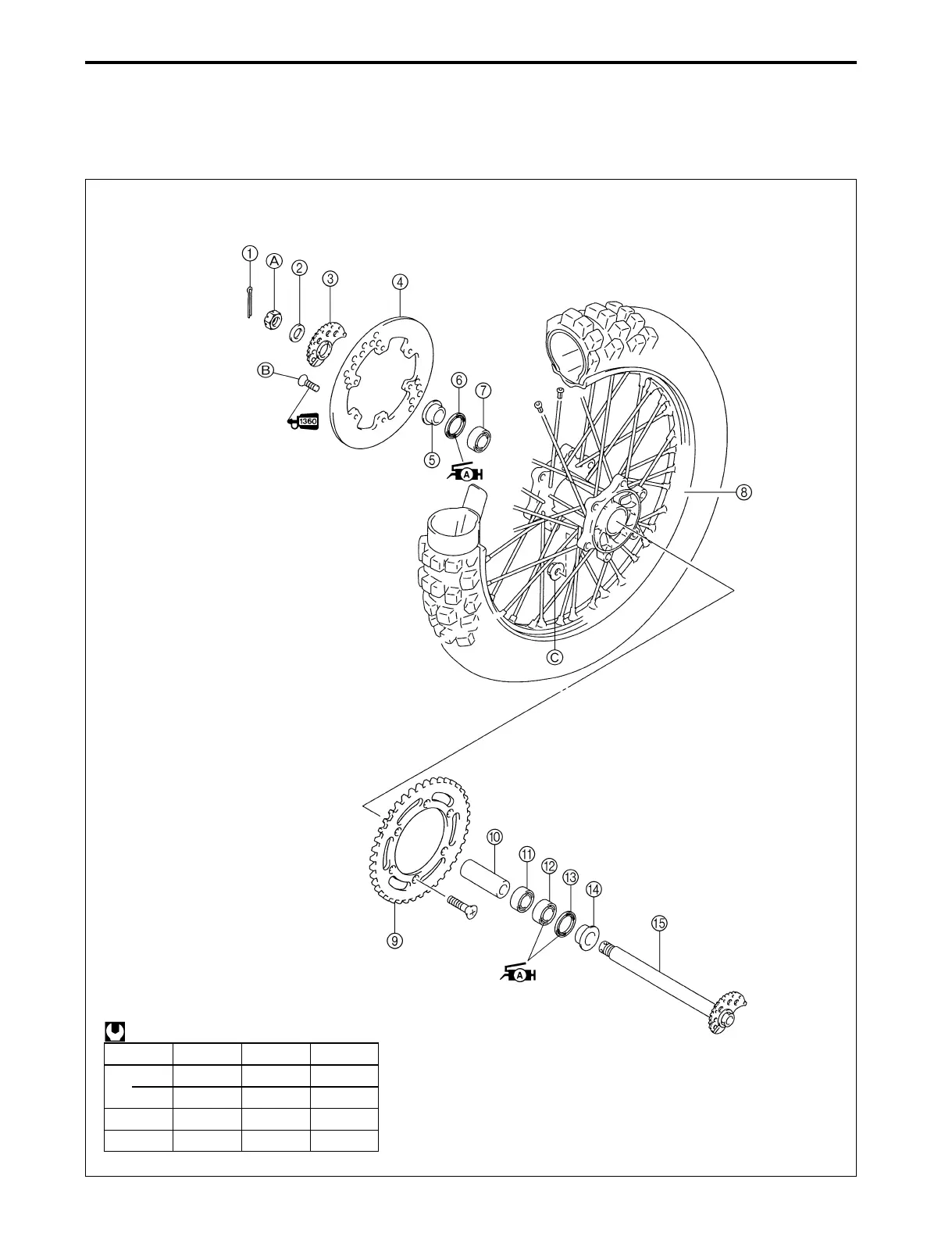

6-24 CHASSIS

REAR WHEEL

CONSTRUCTION

1 Cotter pin (For E-03, 28, 33)

2 Washer

3 Chain adjuster

4 Brake disc

5 Spacer

6 Dust seal

7 Bearing

8 Rear wheel

9 Rear sprocket

0 Spacer

A Bearing

B Bearing

C Dust seal

D Spacer

E Rear axle

A Rear axle nut

B Brake disc mounting bolt

C Rear sprocket nut

ITEM N·m kgf-m lb-ft

E-03, 28

100 10.0 72.5

Others

110 11.0 75.5

B 10 1.0 7.0

C 30 3.0 21.5

Questions and Answers:

General

Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Rear Tire	120/90-18
Seat Height	935 mm (36.8 in)
Engine Type	398cc, 4-stroke, liquid-cooled, DOHC
Front Brakes	Single hydraulic disc
Rear Brakes	Single hydraulic disc
Ground Clearance	300 mm (11.8 in.)
Wheelbase	1, 485 mm (58.5 in)
Fuel Tank Capacity	10.0 L (2.6 US gal.)
Fuel System	Mikuni BSR36, single carburetor
