ELECTRICAL SYSTEM 7-25

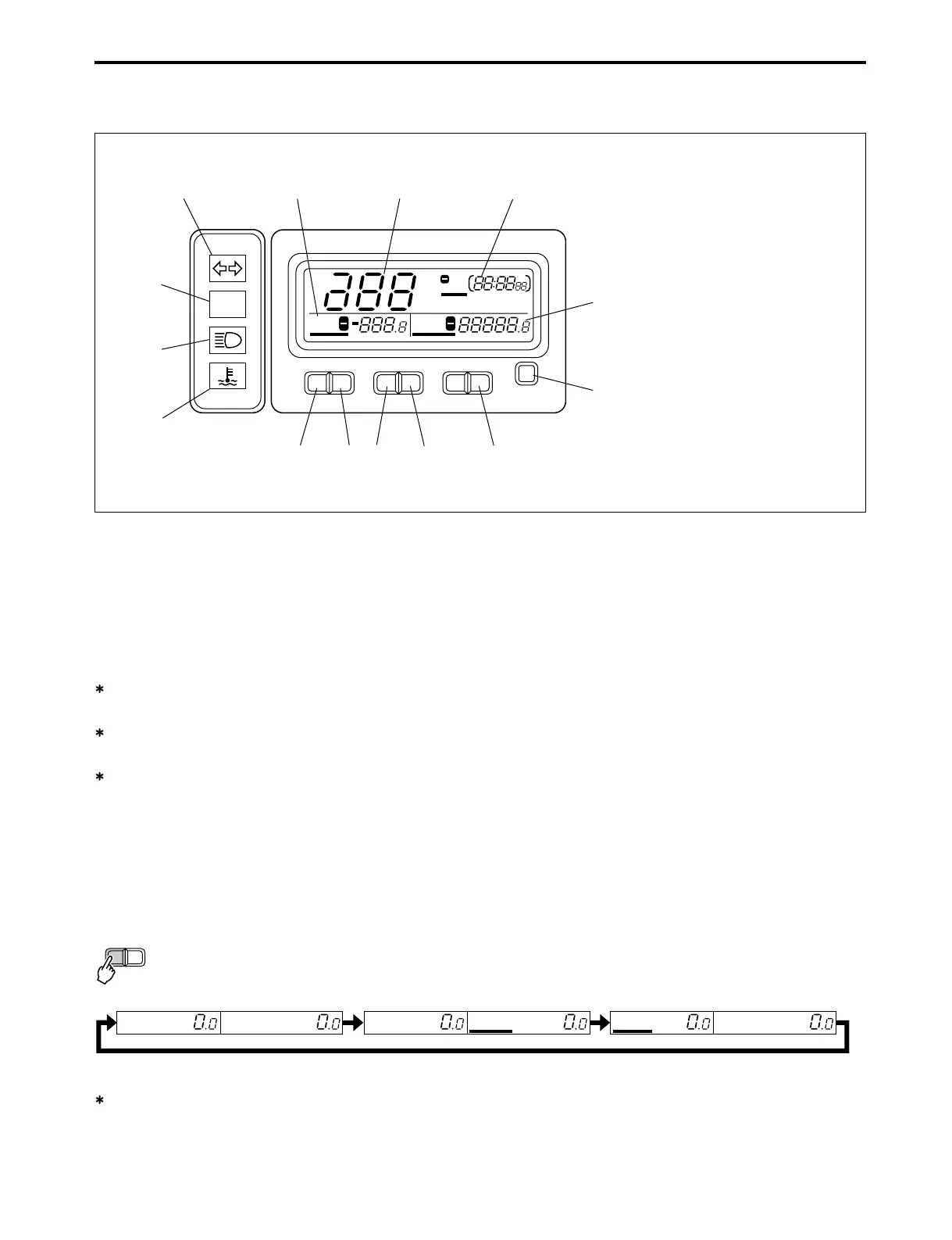

PARTS NAMES
1 Turn signal indicator light
2 Neutral indicator light
3 High beam indicator light
4 Engine coolant temperature
indicator light
5 Tripmeter A
6 Speedometer
7 Clock/stopwatch/timer
8 Tripmeter B/odometer
9 SELECT button (For E-02, 03, 33)
0 ADJUST button
A SET TIME/TRIP button
B SET TRIP button
C MODE TIME button
D MODE TRIP button
OPERATING PROCEDURE
INITIAL DISPLAY
When the ignition switch is set to ON, all indicators light up for
one second.
NOTE:
If the power supply is cut (e.g., when the battery is replaced):
The speedometer, clock, tripmeter A and odometer are dis-
played after the initial display appears.
Since the clock resets to “1:00 00”, it will need to be re-
adjusted.
The odometer, tripmeter A and B, tripmeter calculation modes
(addition and subtraction), and the calibration coefficients are
not affected.
CHANGING THE DISPLAY MODE
With each press of the MODE TRIP button, the display changes
between tripmeter A, tripmeter B and the odometer as shown
below.
TRIP TIME
MODE
Tripmeter A Odometer Tripmeter A Tripmeter B Tripmeter A Tripmeter B
TRIP
TOTAL
A
TRIP TRIP
A B
TRIP TRIP
AB
TRIP TIME
MODE
TRIP
TIME/
TRIP
SET
+ –
ADJUST
SELECT
TRIP TRIP
km/h
TOTAL
A
TIME
CLOCK
B
N
5
6
7
8
9
0A
BC
D
4
3
2
1
NOTE:
The cursor ( — ) indicates that the setting can be changed.
The cursor appears at only one position at a time.
