11

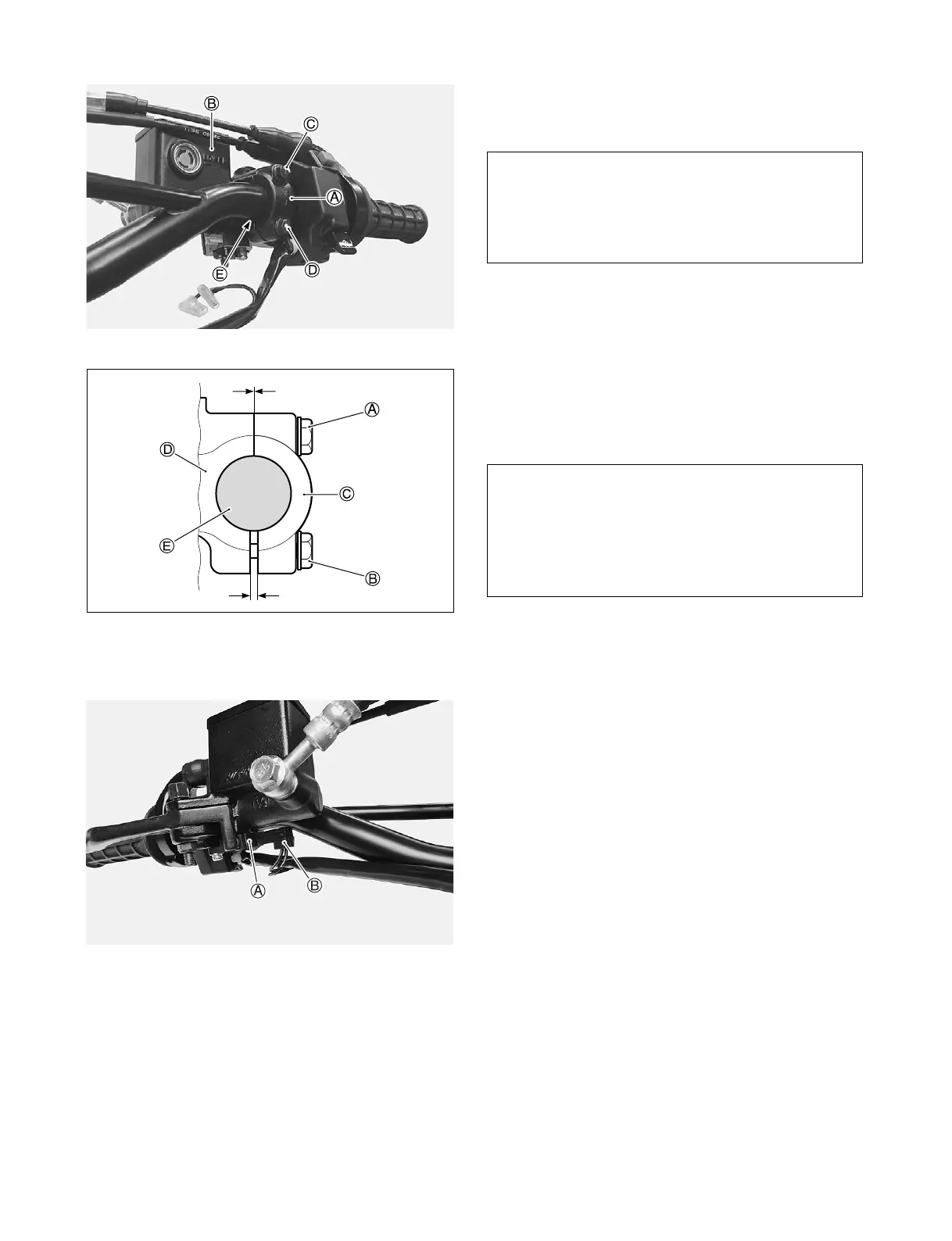

FRONT BRAKE MASTER CYLINDER
Install the front brake master cylinder onto the handle-
bars.
A: Holder
B: Front brake master cylinder
C: 6 × 22 mm flange bolt
D: 6 × 22 mm flange bolt
E: Dot mark
Tighten the front brake master cylinder mounting bolts
to the specified torque.
Front brake master cylinder mounting bolt:
10 N·m (1.0 kgf-m, 7.0 lbf-ft)
A
: 6 × 22 mm flange bolt
B:
6 × 22 mm flange bolt
C:
Holder
D: Front brake master cylinder
E: Handlebars
NOTE:
• Install the holder in position according to the
mark “UP”.
• Align the dot mark on the handlebars with the
master cylinder-to-holder fitting surface.
NOTE:
• First tighten the bolt A of the upper side with
specified torque and then tighten the bolt B of
the lower side.
• Make sure that the holder has no clearance at
the upper side.
Connect the lead wire coupler to the front brake light
switch.
A: Front brake light switch
B: Lead wire coupler
To Next Page
