12

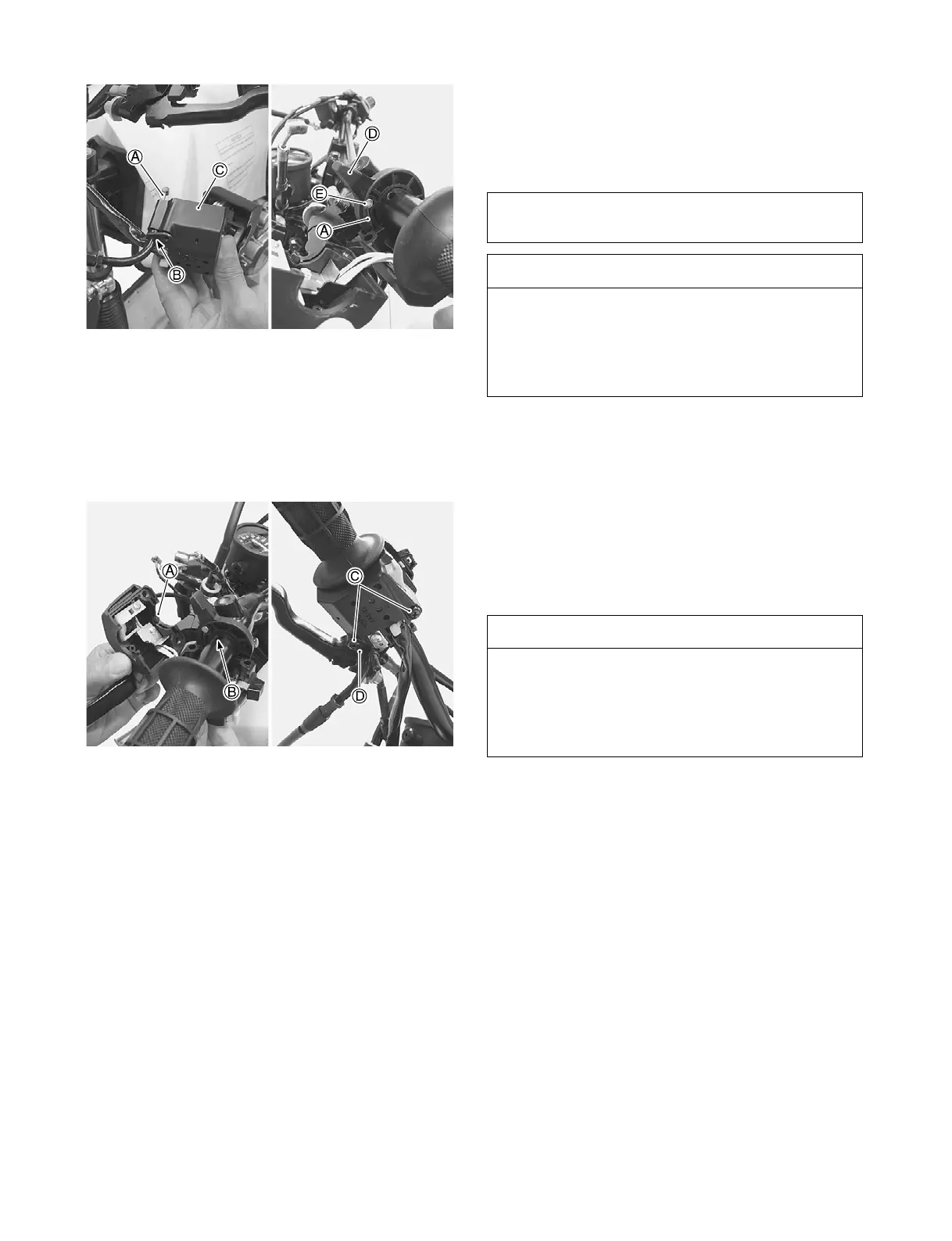

LEFT SWITCH
Pass the choke cable through the hole of left switch
housing.
Insert the choke cable into the recess of choke lever.
Fit the left switch housing to the handlebars.
A: Choke cable
B: Hole
C: Left switch housing
D: Choke lever
E: Cable end
Insert the boss of left switch housing into the hole on
the handlebars.
Set the choke cable holder with the front screw to the
left switch assembly.
Install the left switch assembly with two screws.
A: Boss
B: Hole
C: 5 × 45 mm screw
D: Cable holder
NOTE:
Before installing the cable, grease the cable end.
NOTICE
Improper installing of the choke lever can dam-
age the switch.
Check to ensure that the choke cable fit into the
recess of the choke lever correctly.
NOTICE
Pinching the lead wires in the parts can short or
break circuit.
Check the lead wire routing when assembling
the switch.
