Suzuki DR650SEM2 2021 - Front Fender; Brake Disc

20

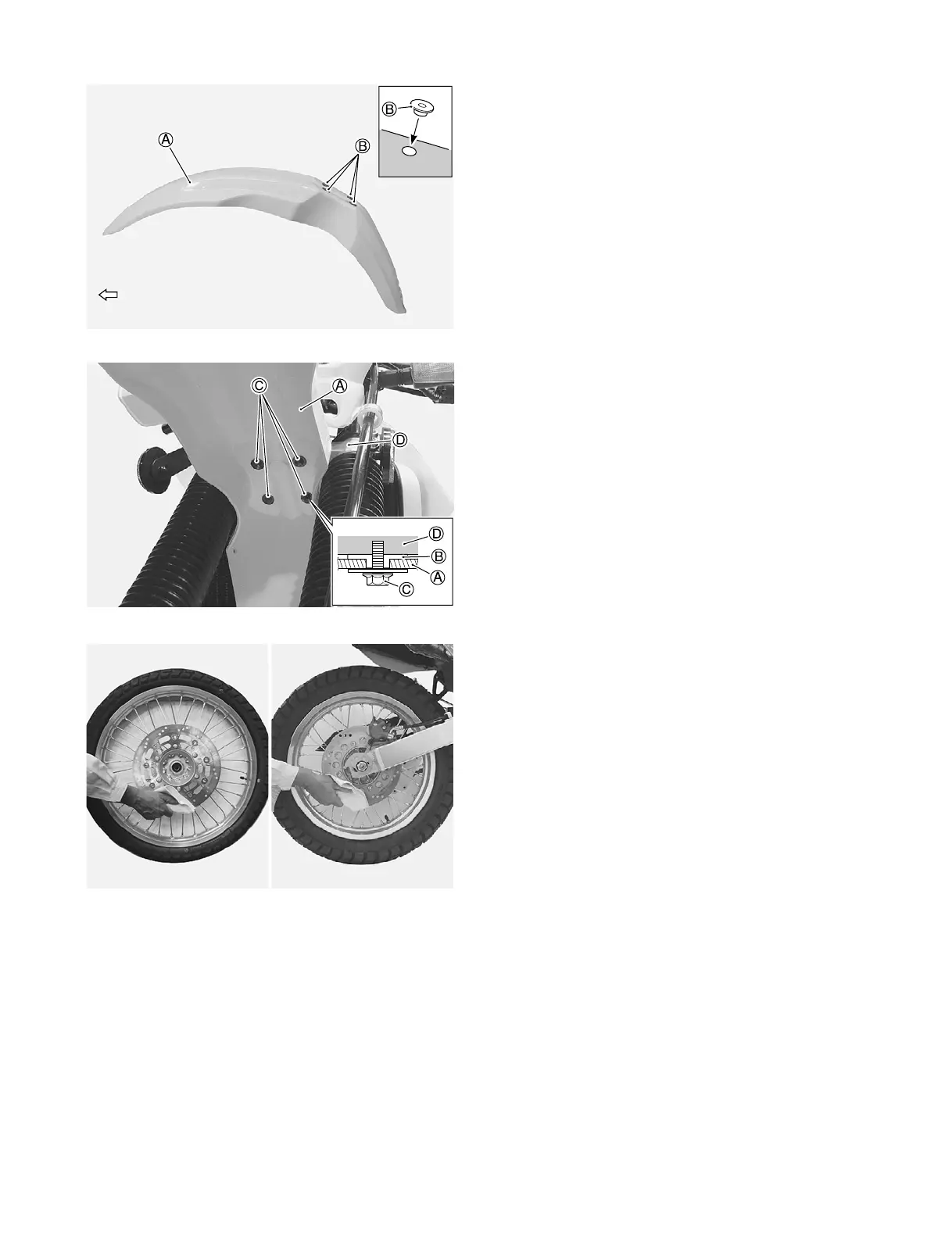

FRONT FENDER
Fit the collared spacer into the hole of the front fender.
A: Front fender
B: Collared spacer OD:17.0 mm ID:6.5 mm T:6.0 mm
Install the front fender to the front fork lower bracket.
A: Front fender
B: Collared spacer OD:17.0 mm ID:6.5 mm T:6.0 mm
C: 6 × 16 mm flange bolt (with washer)
D: Front fork lower bracket
FRONT REAR
BRAKE DISC
To prevent brake squeaking and pad contamination,
carefully clean the front and rear brake disc plates with
alcohol or other non-petroleum based solvent.
This will remove the rust-preventive coating and dirt.
FRONT
FRONT
