Suzuki DR650SEM2 2021 - Tightening Torque List

47
TIGHTENING TORQUE

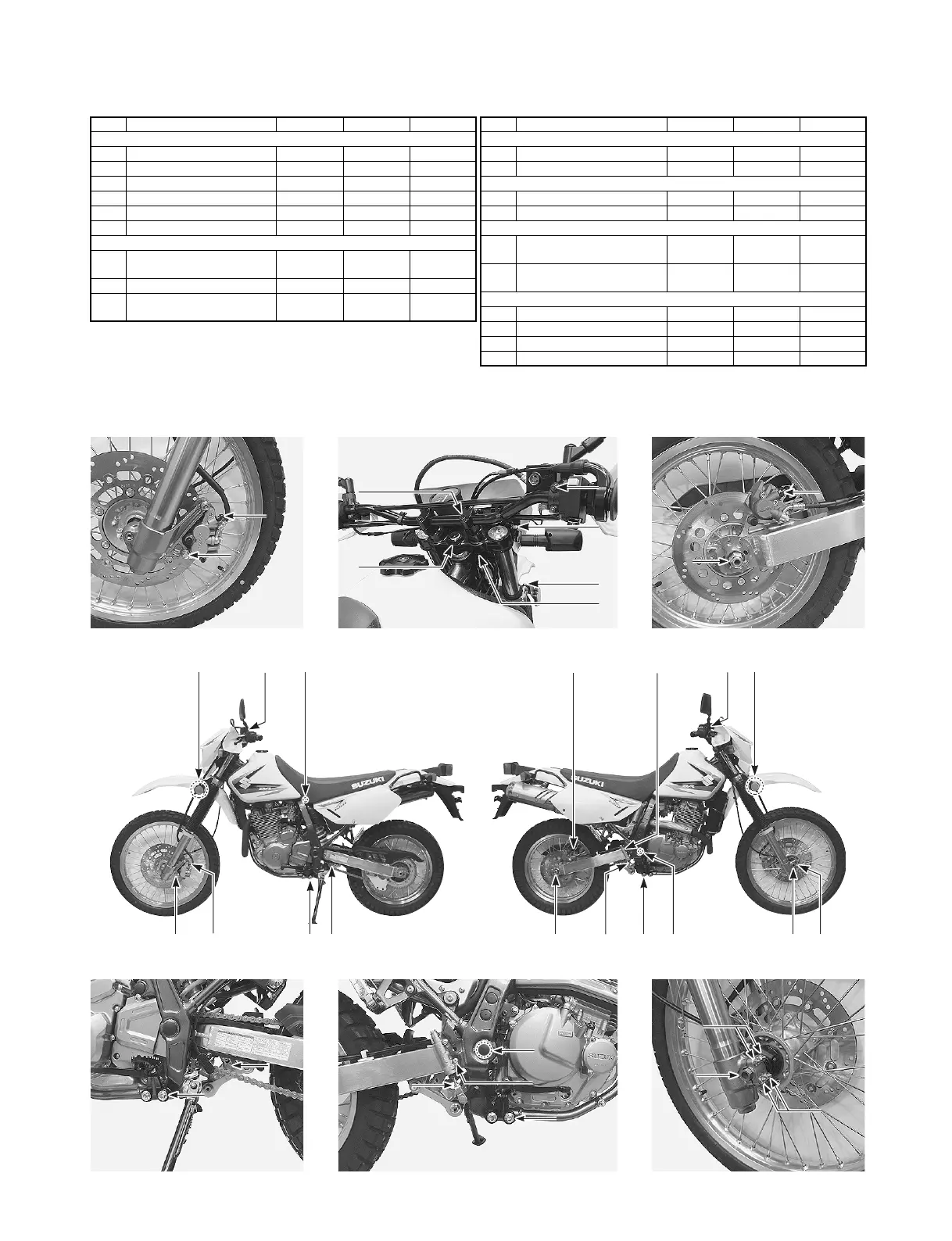

TIGHTENING TORQUE LIST
Each bolts and nuts should be tightened to the torque specified in “TIGHTENING TORQUE LIST”.
If no description or specification is provided, refer to the “TIGHTENING TORQUE CHART” on next page.
Item Part Name N·m kgf-m lbf-ft
FRONT FORK
A Handlebar clamp bolt 23 2.3 16.5
B Handlebar holder nut 25 2.5 18.0
C Steering stem head nut 90 9.0 65.0
D Front fork upper bracket bolt 29 2.9 21.0
E Front fork lower bracket bolt 26 2.6 19.0
F Front axle holder nut 10 1.0 7.0
BRAKE
G
Front brake master cylinder
mounting bolt
10 1.0 7.0
H Front brake caliper mounting bolt 26 2.6 19.0
I
Rear brake master cylinder mount-
ing bolt
10 1.0 7.0
Item Part Name N·m kgf-m lbf-ft
BRAKE
J Rear brake push rod lock nut 18 1.8 13.0
K Brake caliper air bleeder valve 7.5 0.75 5.5
AXLE
L Front axle 65 6.5 47.0
M Rear axle nut 110 11.0 79.5
ABSORBER
N
Rear shock absorber mounting
bolt (Upper)
55 5.5 40.0
O
Rear shock absorber mounting
bolt (Lower)
55 5.5 40.0
OTHERS
P Rear swingarm pivot nut 77 7.7 55.5
Q Front footrest bolt 39 3.9 28.0
R Reflex reflector nut 1.8 0.18 1.35
S Rear view mirror lock nut 28 2.8 20.0
KK
HH
GGG
BBB
EEE
DDD
AAA
CCC
KK
MM
QQ
OO
II
QQ
JJ
PP
FF
LL
FF
HK Q O
N
R
S
MJQP LF
IK
S
R
A
B
