FRONT WHEEL

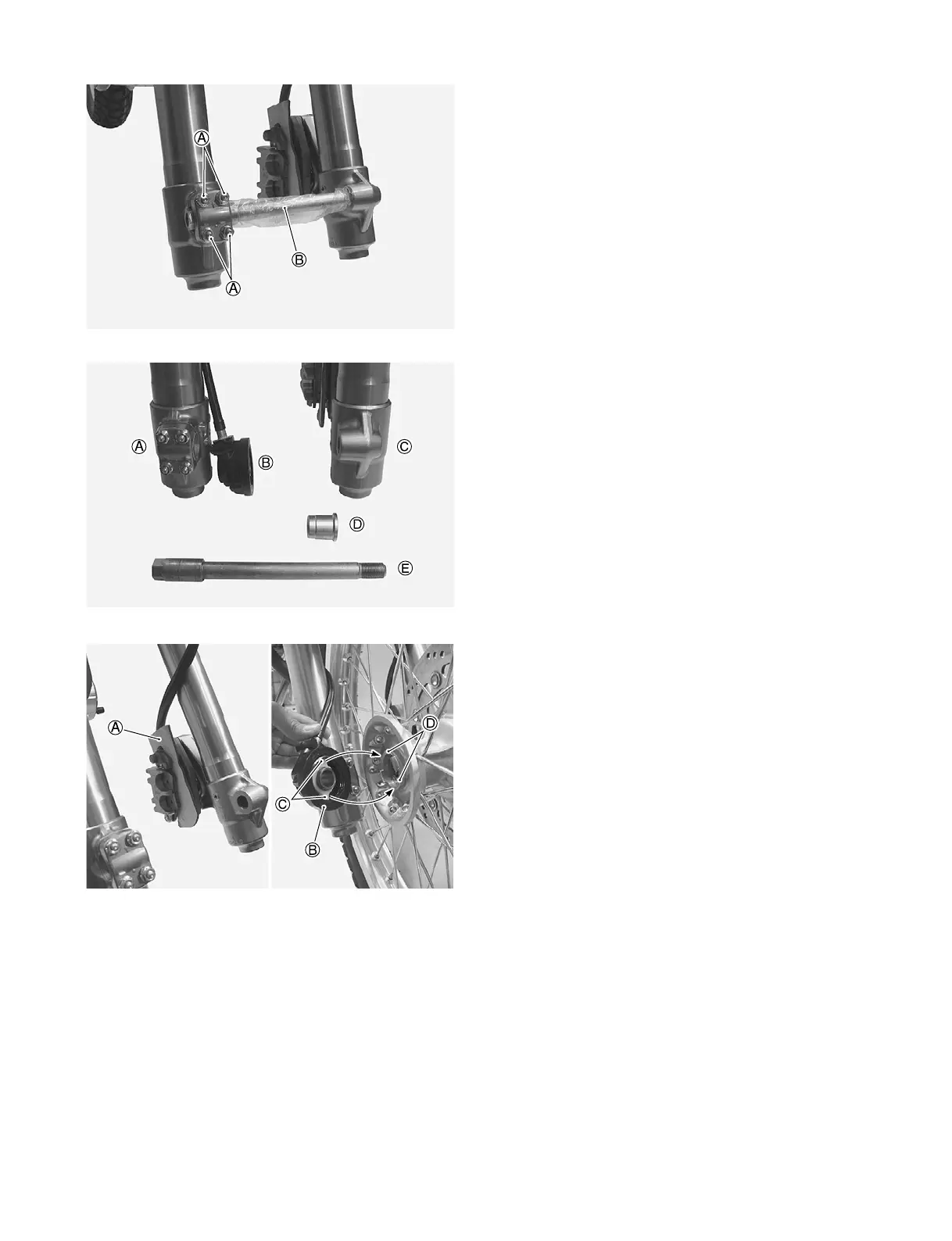

Loosen the axle holder nuts.
Remove the front axle from the fork legs.
A: Axle holder nut
B: Front axle
Mount the front wheel assembly properly.
A: Right fork leg
B: Speedometer drive gearbox
C: Left fork leg
D: Front wheel spacer
E: Front axle
LEFT RIGHT
Remove the supporter from the brake pad of the left
front brake caliper.
Insert the tabs of speedometer drive gearbox into the
grooves of front wheel hub.
A: Supporter
B: Speedometer drive gearbox
C: Tabs
D: Grooves
