16

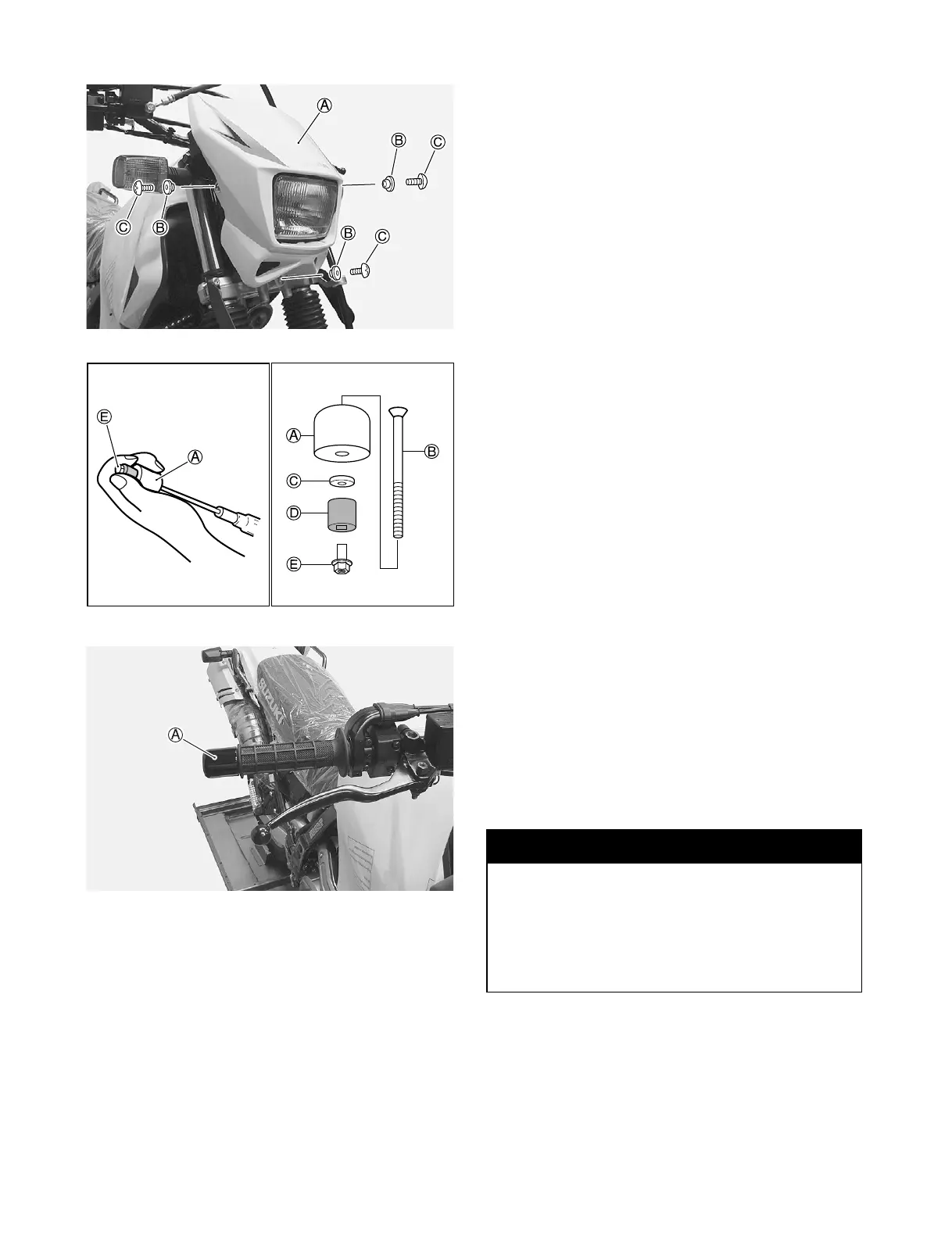

HEADLIGHT COVER
Install the headlight cover.
A: Headlight cover
B: Stepped washer OD:16.0 mm ID:6.5 mm T:4.5 mm
C: 6 × 12 mm screw
HANDLEBAR BALANCER
Assemble the handlebar balancer parts as shown.
A: Balancer weight
B: 6 × 55 mm screw
C: Washer OD:16.0 mm ID:6.5 mm T:4.0 mm
D: Rubber cushion
E: 6 mm spacer nut
Tighten the screw a little.
Insert the balancer sub-assembly into the handlebar
end all the way.
Tighten the screw securely.
Handlebar balancer screw:
7.0 N·m (0.70 kgf-m, 5.0 lbf-ft)
WARNING
Improper handlebar balancer fitting can inter-
fere with smooth throttle grip operation. It can
result in an accident.
Check to ensure that the throttle operates
freely and closes automatically.
A: Balancer assembly
