Suzuki DR650SEM2 2021 - Harness Routing

50

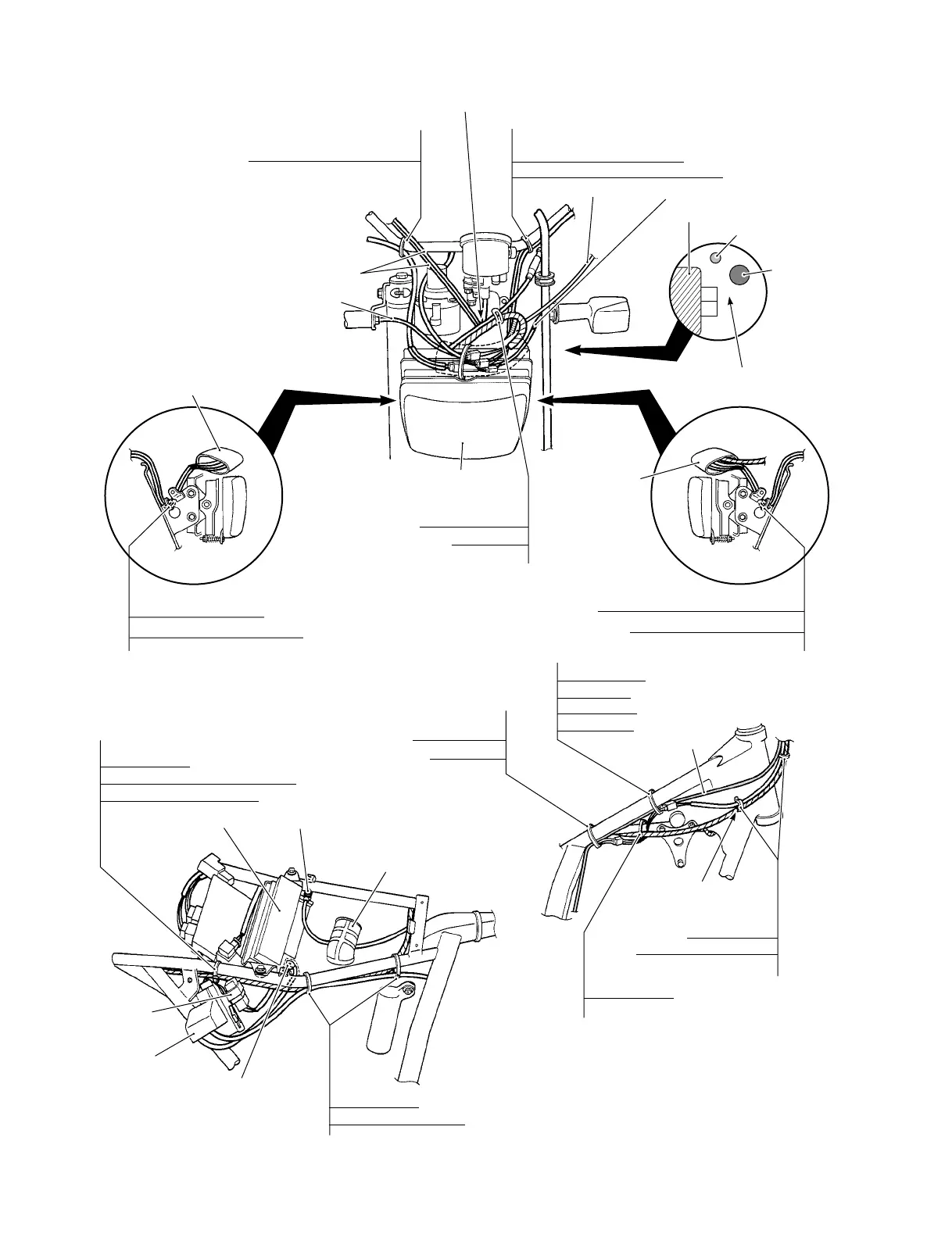

HARNESS ROUTING
Clamp
Clamp
Clamp
Blue mark
Air cleaner intake pipe
Battery + lead wire
Battery
Battery - terminal
Starter relay
Fuse box
Wiring harness
Wiring harness
Wiring harness
Wiring harness
Wiring harness
Clamp
Clamp
Rear turn signal light lead wire (R)
License plate light lead wire
Starter motor lead wire
Ignition switch lead wire
Clamp
Wiring harness
Clutch cable
Throttle cable
Choke cable
Clutch cable
Lead wire cover
Clamp
Clamp
Clamp
Throttle cables
Choke cable
Front turn signal lead wire
Front turn signal lead wire
Headlight
Clutch lever position switch lead wire
Clutch lever position switch lead wire
Handlebar switch lead wire (L)
Handlebar switch lead wire (R)
Handlebar switch lead wire (L)
Clamp
Clutch cable
Wiring harness
(Blue tape portion)
Clamp
Lead wire cover
Pass the clutch cable over the wiring harness.
Clutch cable
Wiring harness
Headlight socket cover
Don't pass the wiring harness
over the headlight socket cover.
Indicator light lead wire
Handlebar switch lead wire (R)
Clutch cable
