19
RIGHT
REAR TURN SIGNAL LIGHT (RIGHT)

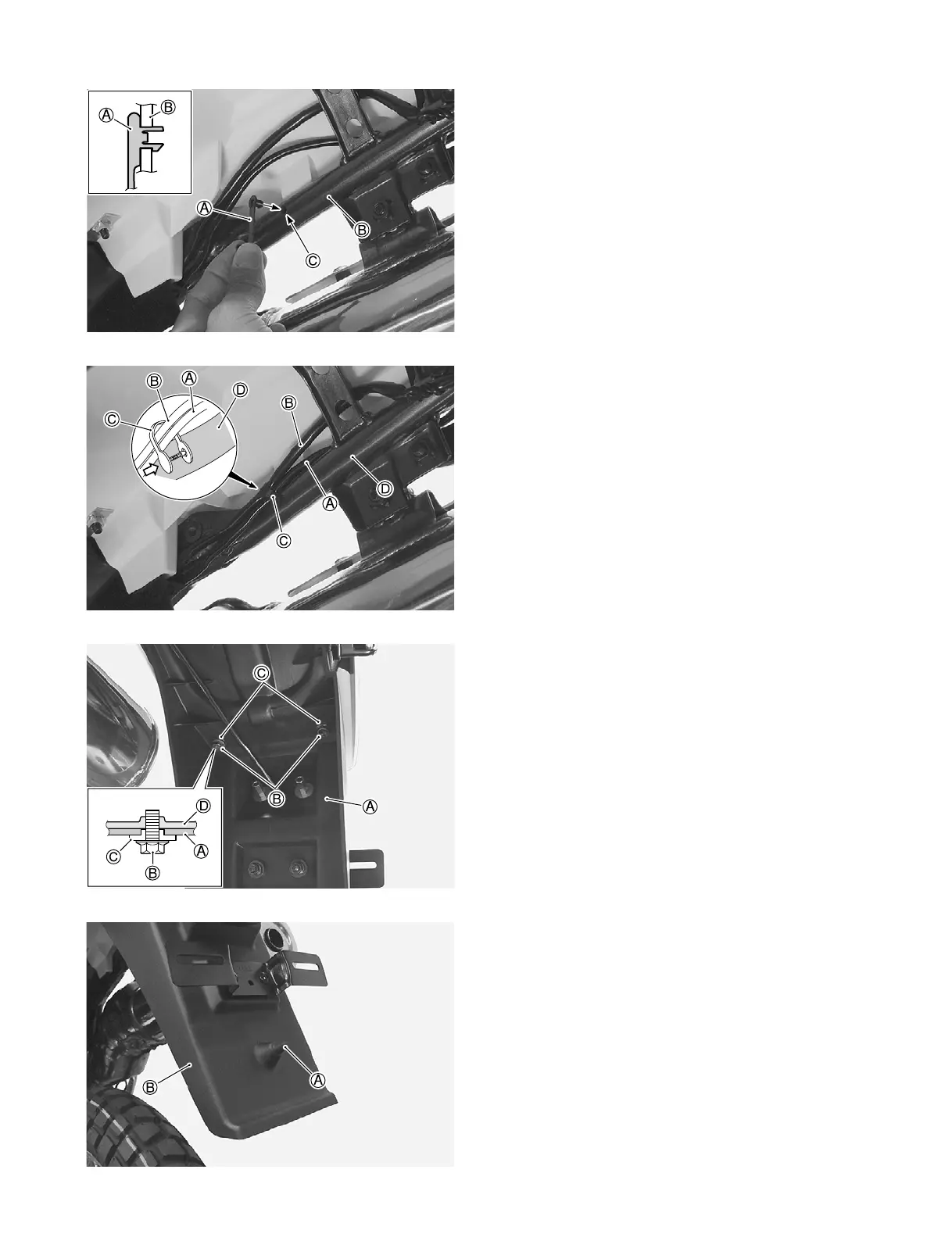

Install the clamp to the hole of the frame.
A: Clamp
B: Frame
C: Hole
Clamp the rear turn signal lead wire and license plate
light lead wire.
Fix the clamp by pushing the center pin.
A: Rear turn signal lead wire
B: License plate light lead wire
C: Clamp
D: Frame
REAR FENDER EXTENSION
Install the rear fender extension.
A: Rear fender extension
B: 6 × 16 mm flange bolt
C: Collared spacer OD:17.0 mm ID:6.5 mm T:6.0 mm
D: Frame
Install the license plate cushion to the rear fender
extension.
A: License plate cushion
B: Rear fender extension
