SERVICING
BATTERY

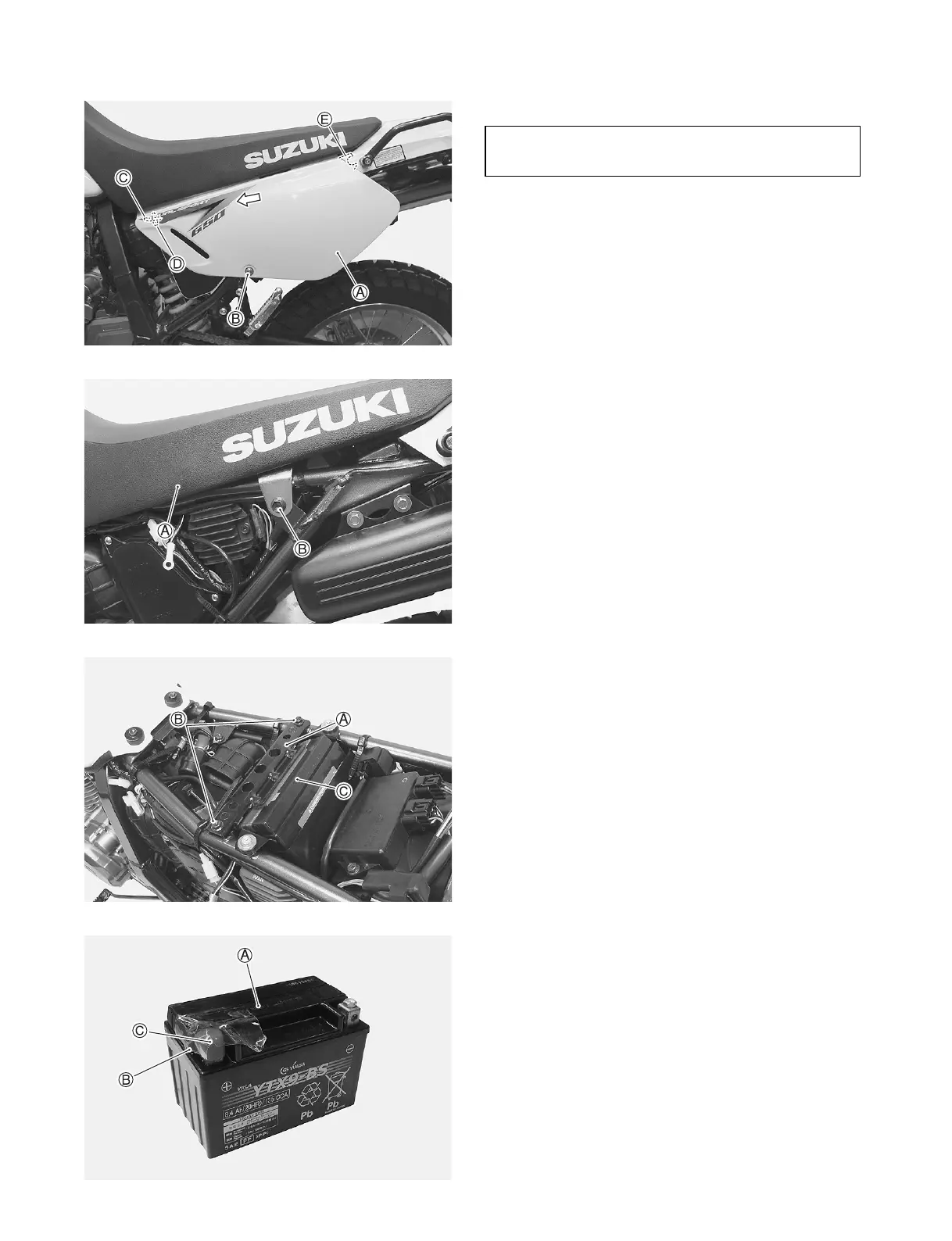

Remove the screw B.
Remove the frame cover A.
A: Frame cover
B: Screw, Stepped washer
C: Boss (Air cleaner box)
D: Hole (Frame cover grommet)
E: Lug
Remove the bolts B.
Remove the seat A.
A: Seat assembly
B: Bolt
Remove the bolts B.
Remove the battery holder A.
Remove the battery C from the motorcycle.
A: Battery holder
B: Bolt
C: Battery
Remove the protection tape B.
Remove the rubber cap C.
A: Battery
B: Protection tape
C: Rubber cap
NOTE:
The battery is located under the seat.
