34

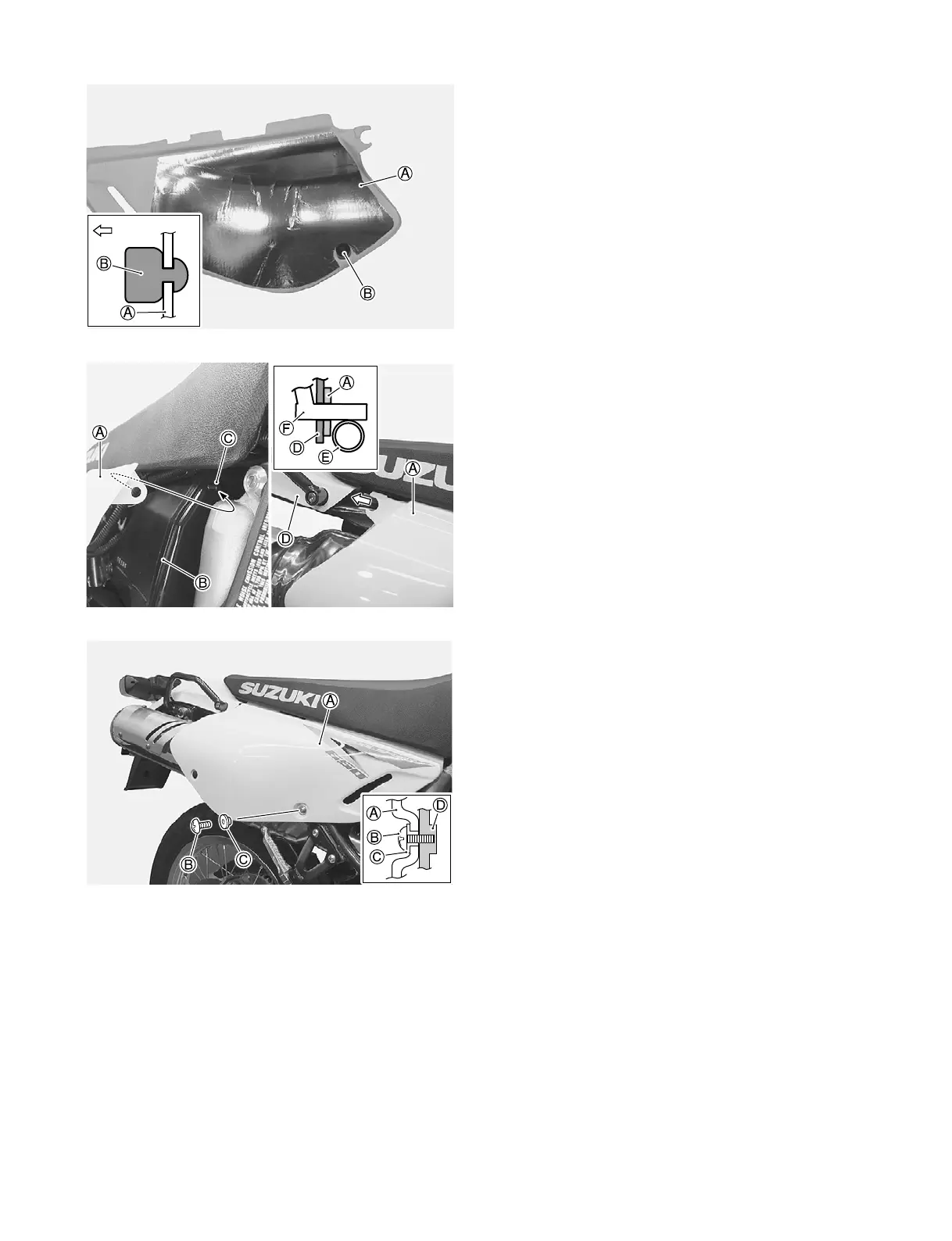

FRAME COVER (RIGHT AND LEFT)
Install the rubber cushion to the frame cover (right).
A: Frame cover (Right)
B: Rubber cushion
Insert the hole of the frame cover to the boss of the air
cleaner box.
Insert the lug at the rear end of the frame cover
between the rear fender and frame.
A: Frame cover
B: Air cleaner box
C: Boss (air cleaner box)
D: Rear fender
E: Frame
F: Grip
Install the frame cover to the frame.
A: Frame cover
B: 6 × 16 mm screw
C: Stepped washer OD:18.0 mm ID:6.5 mm T:4.0 mm
D: Frame
INSIDE
