CHASSIS
5-2

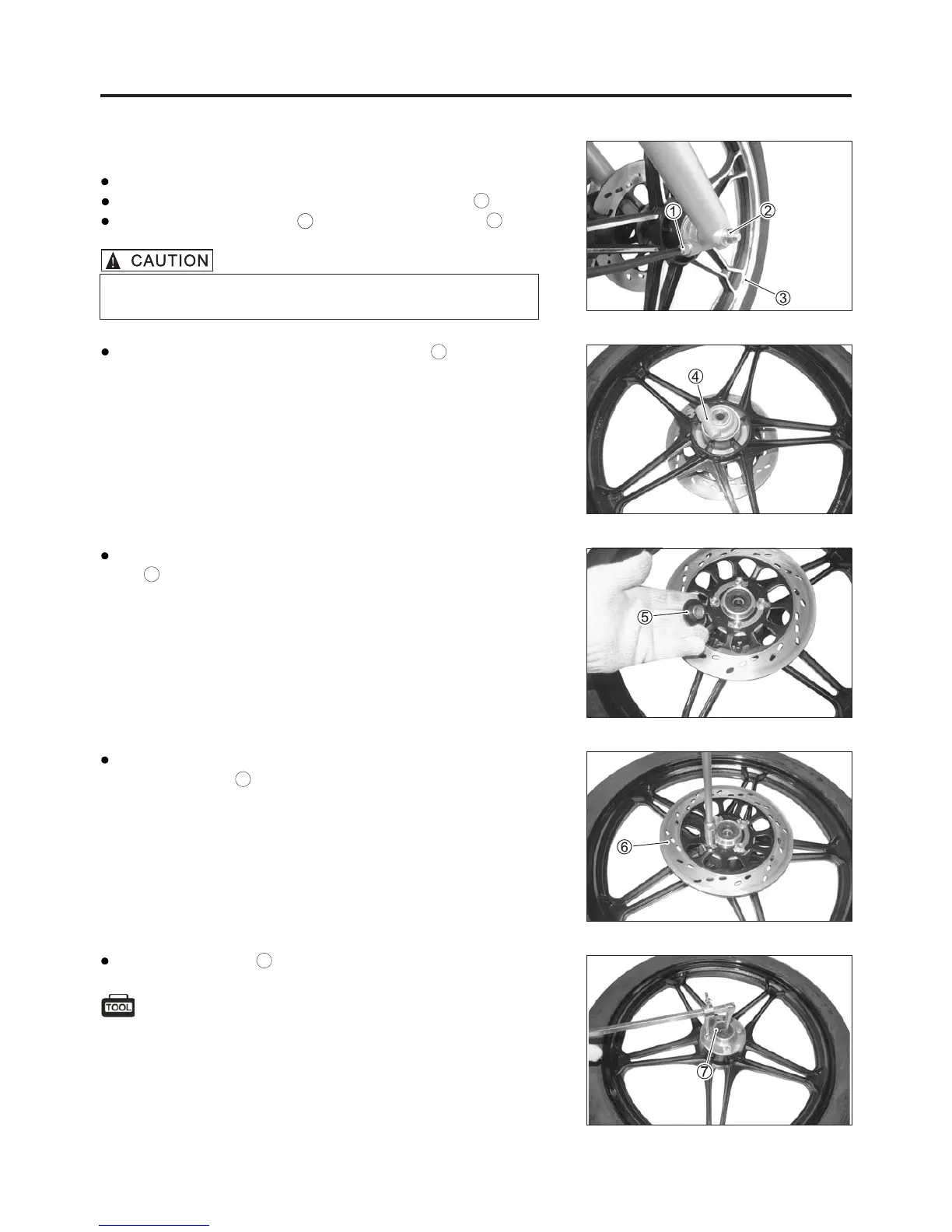

REMOVAL AND DISASSEMBLY
Support the motorcycle by the center stand.
Disconnect the front brake and speedometer cable .
Remove the front axle nut , take off the front wheel .
Remove the speedometer gearbox assembly .
Remove the front axle spacer and front wheel assembly dust
seal .
Flatten the lock washer, remove the brake disc bolts, take
off the brake disc .
Remove the oil seal on both sides with the special tool.
Do not operate the front brake lever when removing
the front wheel.
09913 50121: Oil seal remover-
7
1
3
2
4
6
5
