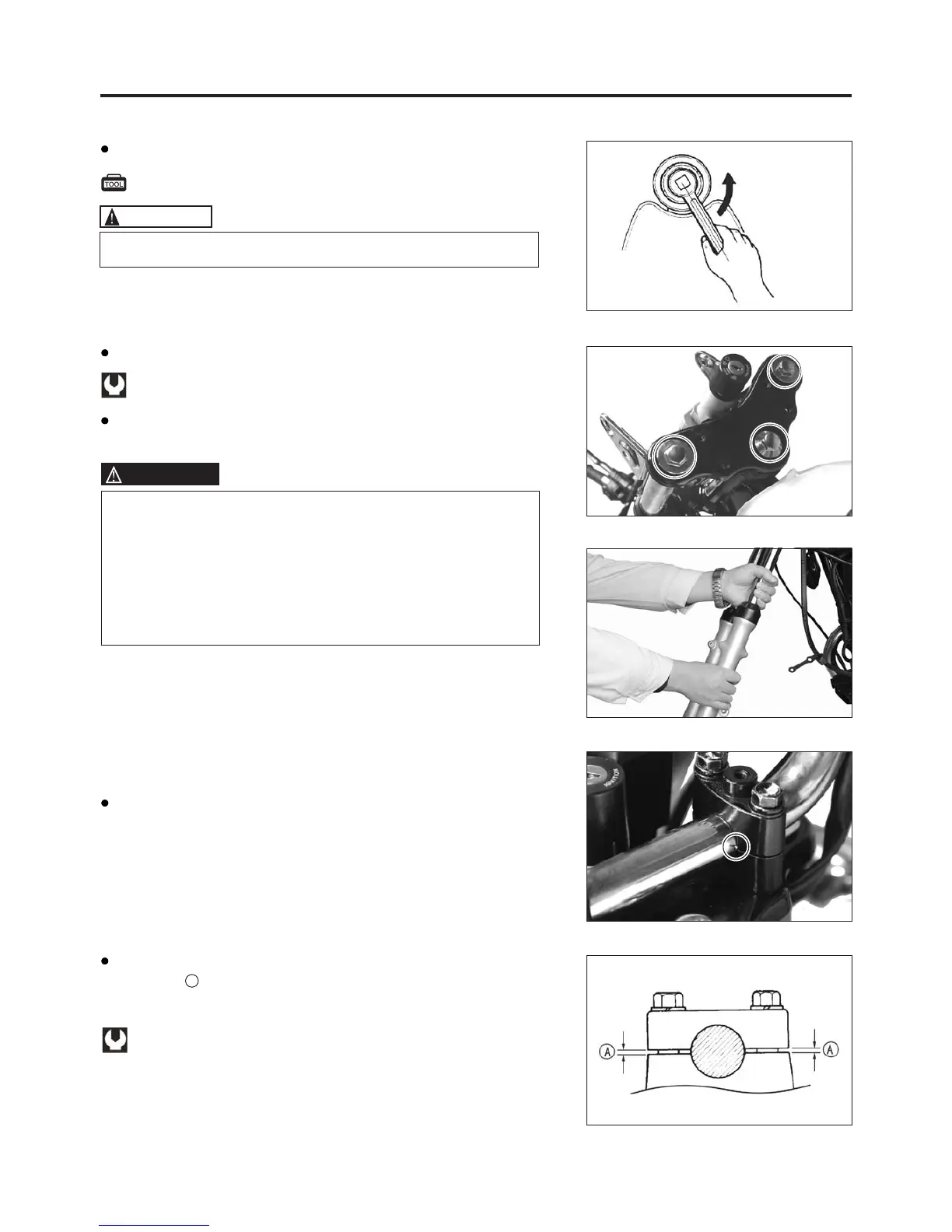

Turn back the stem nut by 1/4-1/2 turn.
1/4-1/2 turn back
The adjustment will vary from motorcycle to another.
Tighten the steering stem head bolts to the specified torque.
Set the handlebar to match its punched mark to the mating
face of the holder.
Secure the each handlebar clamp in such a way that the
clearance ahead of and behind the handlebar should be
equalized.
Steer stem bolt: 35~55 N•m
After performing the adjustment and installing the
steering stem upper bracket, “rock” the front wheel
assembly forward and backward to ensure that there is
no play and that the procedure was accomplished
correctly. Finally check that the steering stem moves
freely from left to right with its own weight. If play or
stiffness is noticeable, re-adjust the steering stem nut.
HANDLEBAR
A
Handlebar clamp bolt: 12~20 N•m
09910 60611: Universal wrench-
CAUTIONCAUTION
WARNING
Install and ighten the front absorber bolts and the brake
caliper bolts. (Refer to page 3-11)
