Suzuki GN125F - Steering Stem Service

CHASSIS
5-12
STEERING STEM

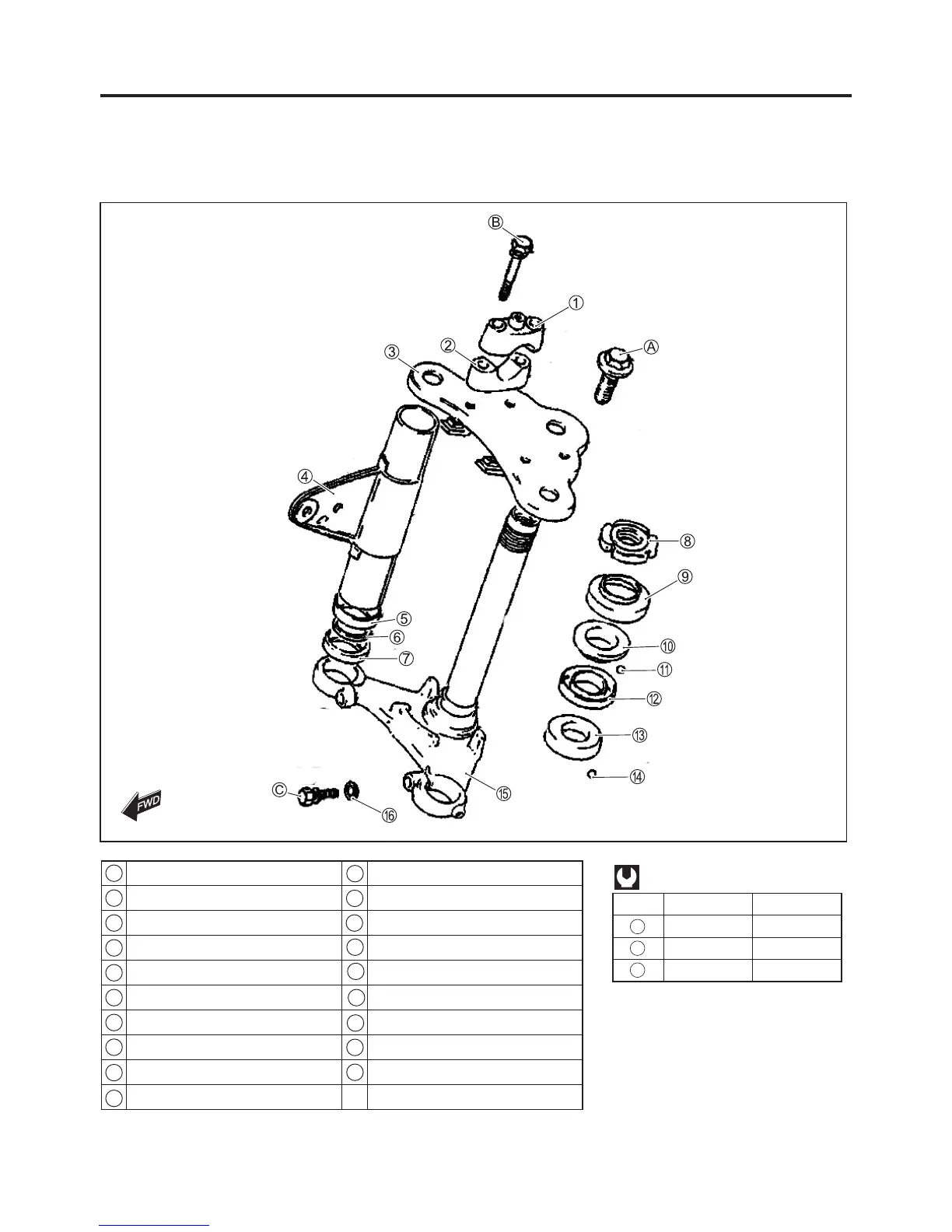

CONSTRUCTION
ITEM
N•m
kgf•m
A
B
C
35~55 3.5~5.5
12~20 1.2~2.0
25~35 2.5~3.5
11
12
13
14
15
16
A
Steering stem nut
Dust seal
Handlebar clamp bolt
Lower bracket clamp bolt
8
9
B
C
Upper bearing outer race
10
Steering stem bolt
Washer
Ball
Upper bearing inner race
Lower bearing inner race
Ball
Lower bracket
1
2
3
4
5
6
7
Steering stem upper bracket
Steering stem lower bracket
Upper bracket
Headlight right bracket
Spacer
Dust seal
Headlight bracket damper
