CHASSIS
5-11
REASSEMBLY

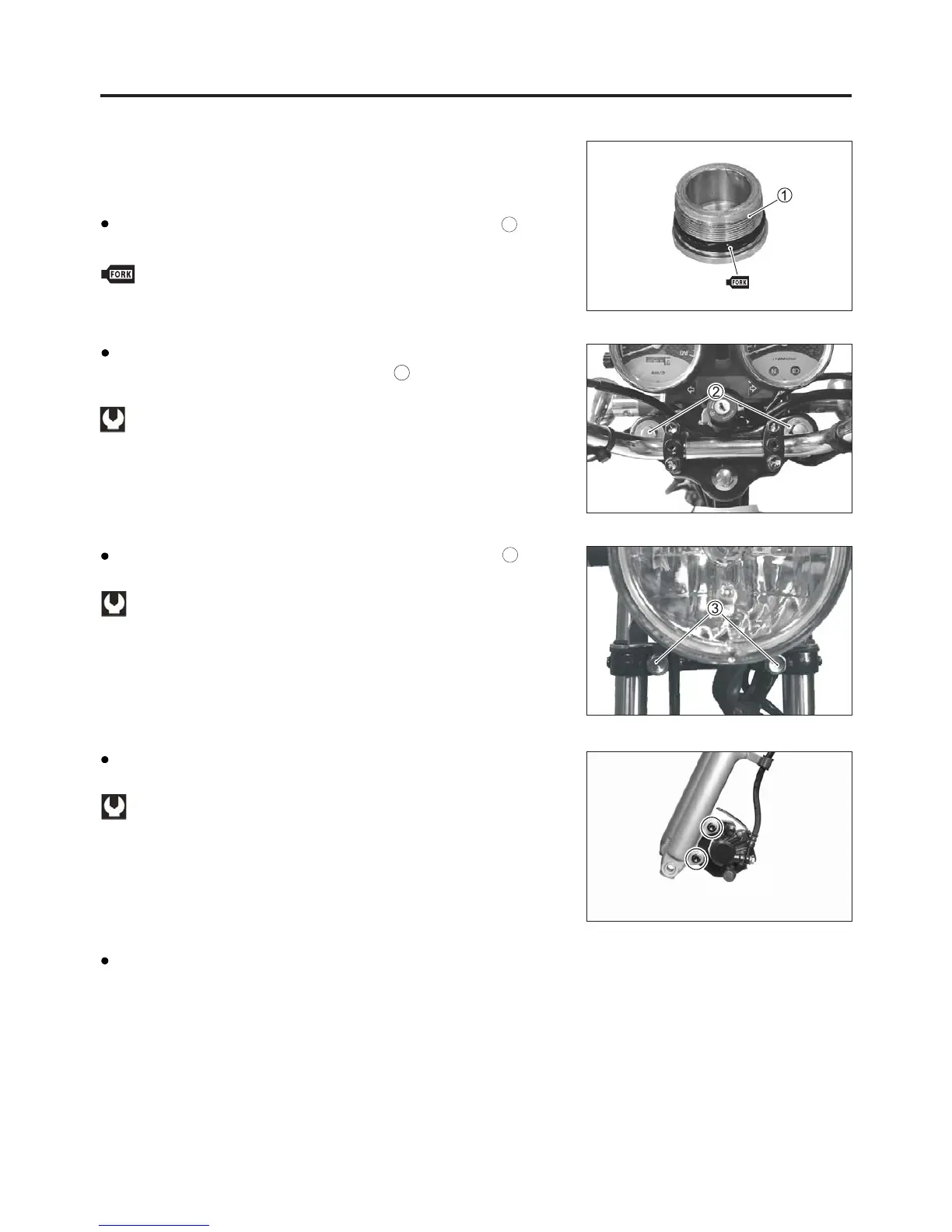

Reassemble the front absorbers in the reverser order of
removal. Pay attention to the following points:
Absorber oil type: #34
Apply a small quantity of absorber oil to the O-ring on
the front absorber.
Tighten the front absorber lower bracket clamp bolts to
the specified torque.
Lower bracket clamp bolt : 25-35 N•m
Install the front absorbers to the upper and lower bracket,
tighten the front absorber cap bolts to the specified
torque.
Front absorber cap bolts: 35-55 N•m
Install the front caliper, tighten the mounting bolts to the
specified torque.
Install the front wheel. (Refer to page 5-4)
Lower bracket clamp bolt: 18-28 N•m
1
3
2
