SHAFT DRIVE 4-23

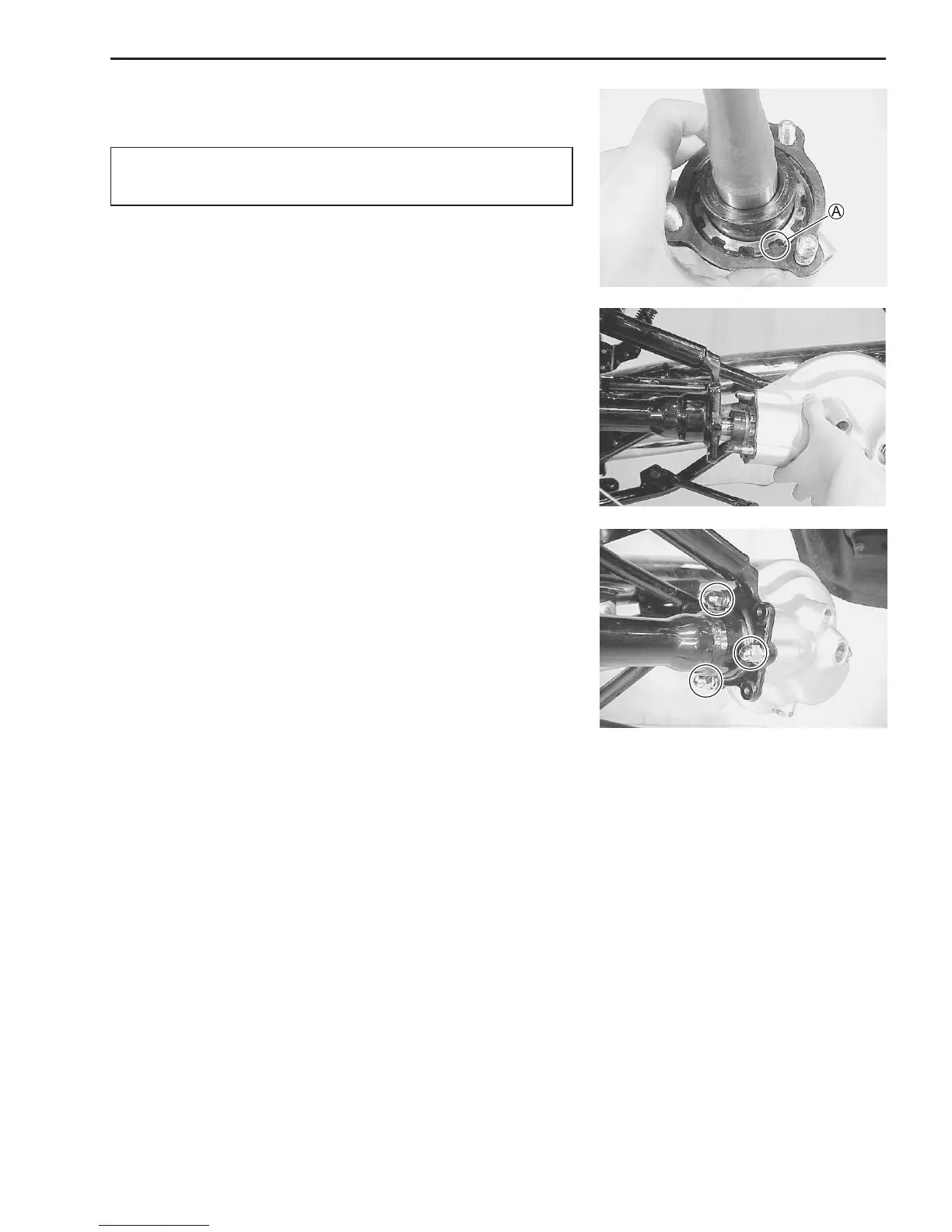

• Install the stopper plate.
$
When installing the plate, fit the protrusion A of plate to
the one of the bearing stopper grooves.
NOTE:
Two kinds of plates are available to lock the stopper at the proper
position.
FINAL GEAR CASE INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Refer to the following pages for the details of each step.
• Install the final gear case.
• Tighten the final gear case bolts to the specified torque.
! Final gear case nut: 40 N
.
m (4.0 kgf
.
m, 29.0 lb-f )
• Install the rear wheel. ("7-41)
• Pour final gear oil. ("2-15)

Suzuki Intruder VL800 Specifications

General

Engine Type	4-stroke, liquid-cooled, SOHC, 45-degree V-twin
Displacement	805cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16M/C 67H
Rear Tire	170/80-15M/C 77H
Overall Height	1, 105mm (43.5 inches)
Wheelbase	1, 655 mm
Ground Clearance	140mm (5.5 inches)
Seat Height	700 mm (27.6 in)
