7-10 CHASSIS

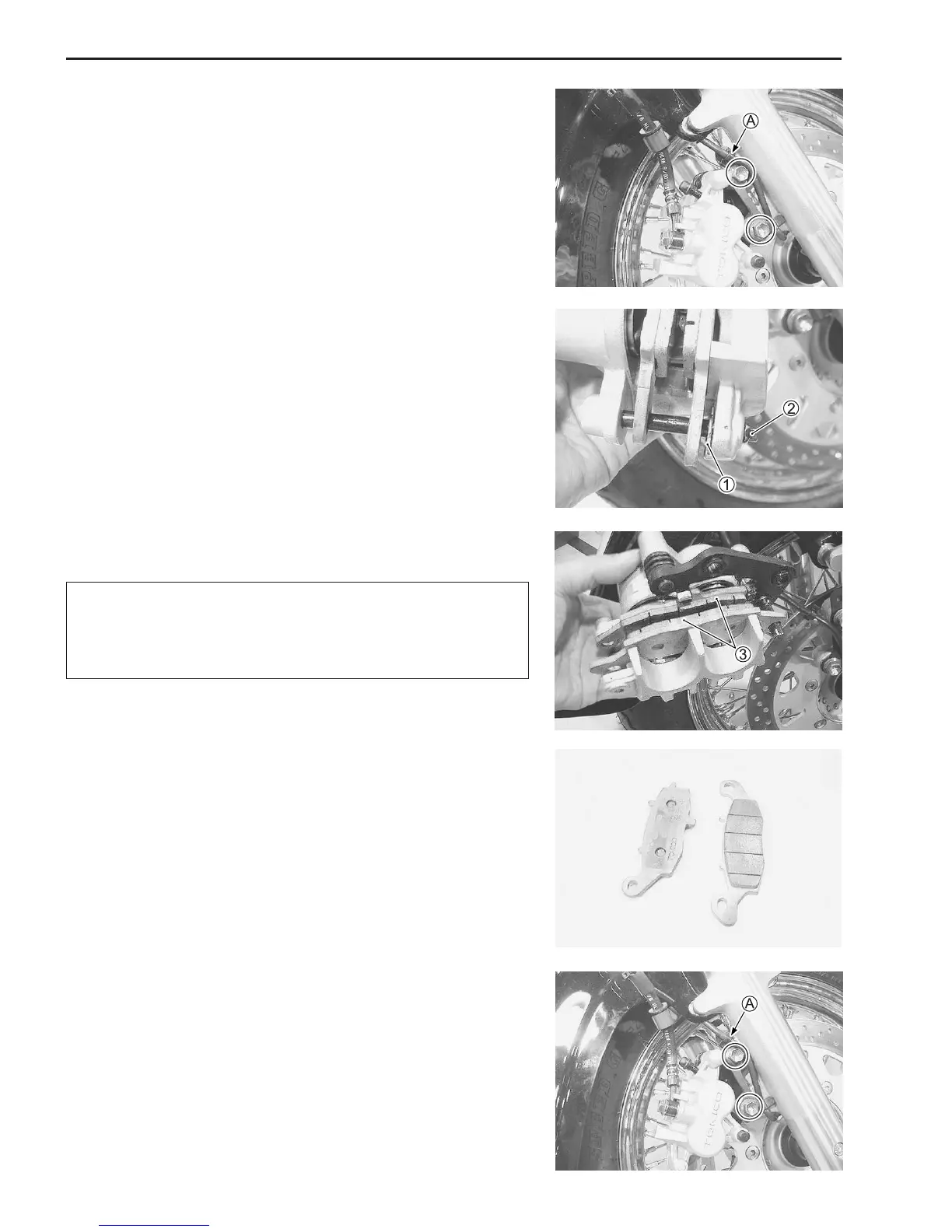

BRAKE PAD REPLACEMENT
• Remove the guide hook A.
• Remove the brake caliper by removing the brake caliper mount-
ing bolts.
• Remove the pin 1.
• Remove the pad pin 2.
• Remove the brake pads 3.
!
* Do not operate the brake lever during or afte br ke
pad removal.
* Replace the brake pads as a set, otherwise braking per-
formance will be adversely affected.
• Install the new brake pads.
• Tighten the brake caliper mounting bolts to the specified torque.
$ Brake caliper mounting bolts: 39 N
.
m (3.9 kgf
.
m, 28 lb-ft)
• Install the guide hook A.
NOTE:
After replacing the brake pads, pump the brake lever a few times
to check for proper brake operation and then check the brake
fluid level.

Suzuki Intruder VL800 Specifications

General

Engine Type	4-stroke, liquid-cooled, SOHC, 45-degree V-twin
Displacement	805cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16M/C 67H
Rear Tire	170/80-15M/C 77H
Overall Height	1, 105mm (43.5 inches)
Wheelbase	1, 655 mm
Ground Clearance	140mm (5.5 inches)
Seat Height	700 mm (27.6 in)
