Suzuki Intruder VL800 User Manual

VL800K5 (’05-MODEL) 14-103

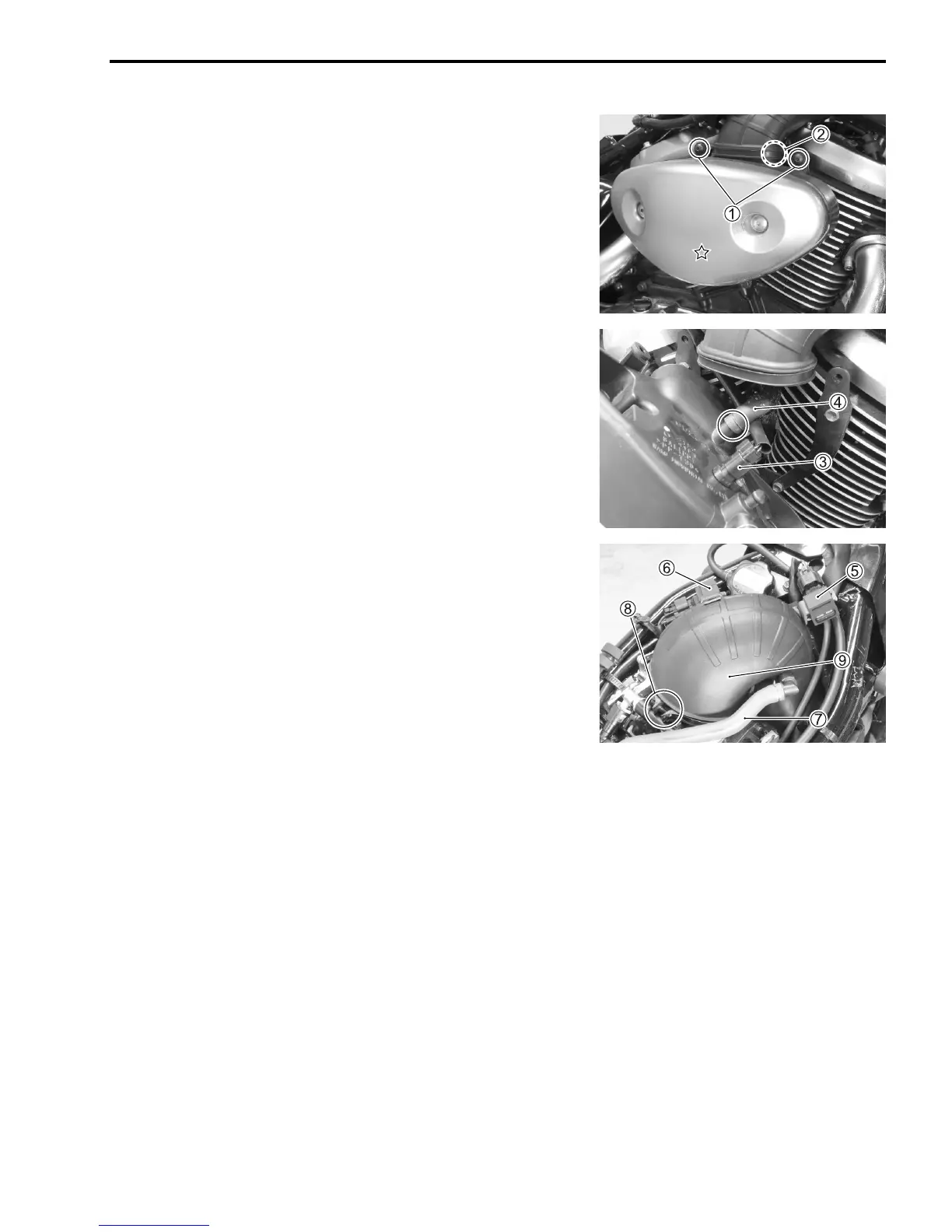

AIR CLEANER BOX REMOVAL
• Remove the fuel tank. ($14-93)
• Remove the bolts

1 and lossen the clamp screw

2.
NOTE:
“✩” indicates hook location.
• Disconnect the IAT sensor lead wire coupler

3.
• Disconnect the PAIR hose

4.
• Remove the IAP sensors (Front cylinder side

5 and Rear cyl-
inder side

6) from the mount stay.
• Remove the PCV hose

7 and loosen the clamp screw

8.
• Remove the air intake pipe

9.
AIR CLEANER BOX INSTALLATION
Installation is in the reverse order of removal.

Suzuki Intruder VL800 Specifications

General

Engine Type	4-stroke, liquid-cooled, SOHC, 45-degree V-twin
Displacement	805cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16M/C 67H
Rear Tire	170/80-15M/C 77H
Overall Height	1, 105mm (43.5 inches)
Wheelbase	1, 655 mm
Ground Clearance	140mm (5.5 inches)
Seat Height	700 mm (27.6 in)
