18-52 VL800/C/TK9 (’09-MODEL)

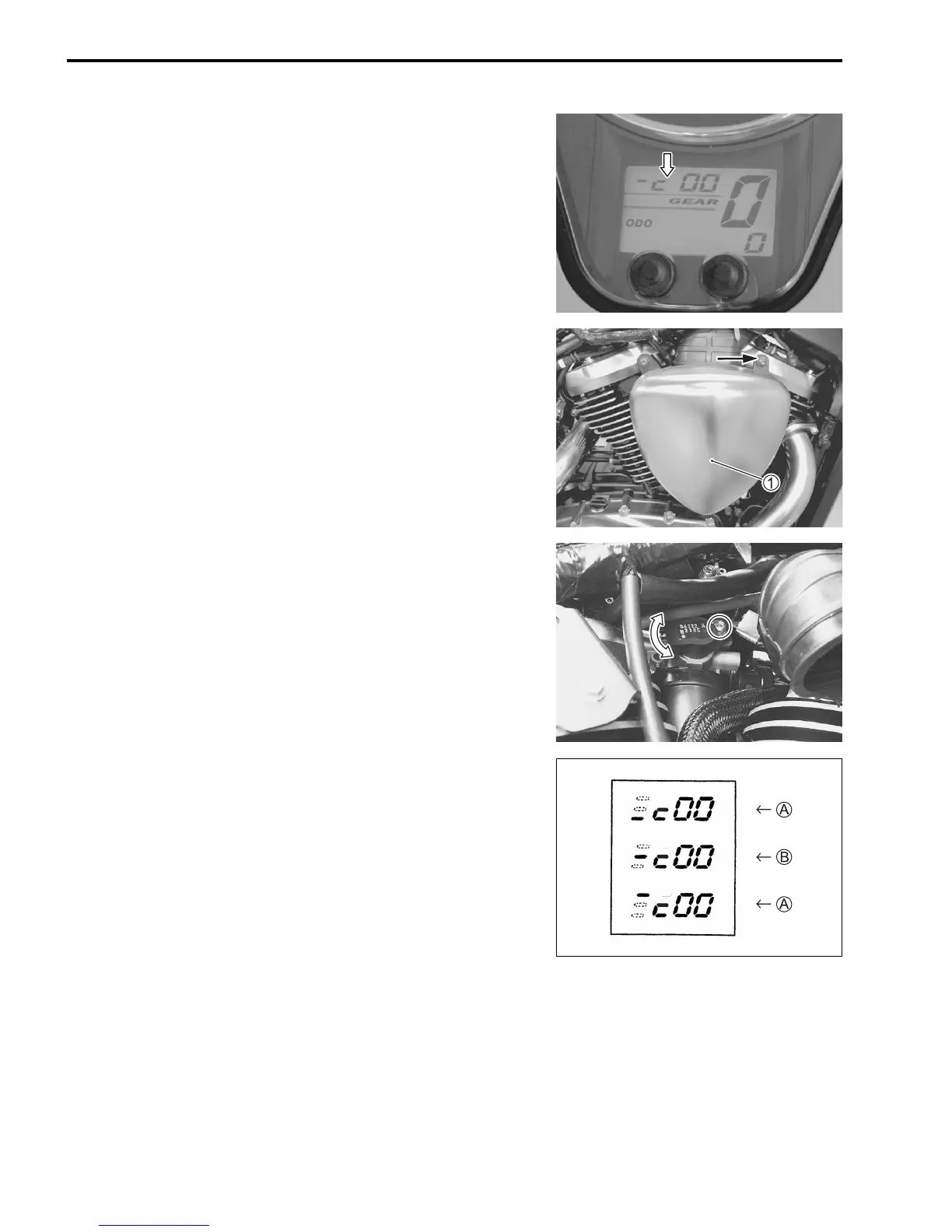

TP SENSOR ADJUSTMENT
After all adjustments are completed, check or adjust the TPS
setting condition.
1. Remove the right frame cover. ( Page 7-2)
2. Connect the special tool (Mode select switch) to the dealer
mode coupler at the wiring harness. ( Page 14-37)
3. Turn the ignition switch ON and mode select switch ON.
4. If the throttle position sensor adjustment is necessary, lift and
support the fuel tank. ( Page 14-93)
5. Remove the air cleaner box 1. (Page 18-8)
6. Move the air cleaner outlet tube forward.
7. Loosen the screw and turn the throttle position sensor and
bring the line to the middle.
8. Then, tighten the screw to fix the throttle position sensor
 09930-11950: Torx wrench
09930-82720: Mode select switch
 TP sensor mounting screw: 3.5 N·m (0.35 kgf-m, 2.5 lbf-ft)
The LCD displays the line for 0.4 sec at a time, and when such
a display repeats two times, it indicates the current position
where the sensor is fixed.
A Incorrect
B Correct position

Suzuki Intruder VL800 Specifications

General

Engine Type	4-stroke, liquid-cooled, SOHC, 45-degree V-twin
Displacement	805cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16M/C 67H
Rear Tire	170/80-15M/C 77H
Overall Height	1, 105mm (43.5 inches)
Wheelbase	1, 655 mm
Ground Clearance	140mm (5.5 inches)
Seat Height	700 mm (27.6 in)
