Suzuki Intruder VL800 User Manual

VL800K5 (’05-MODEL) 14-95
FUEL PUMP INSPECTION
Turn the ignition switch ON and check that the fuel pump oper-
ates for few seconds.
If the fuel pump motor does not make operating sound, replace
the fuel pump assembly or inspect the fuel pump relay and
tip-over sensor.

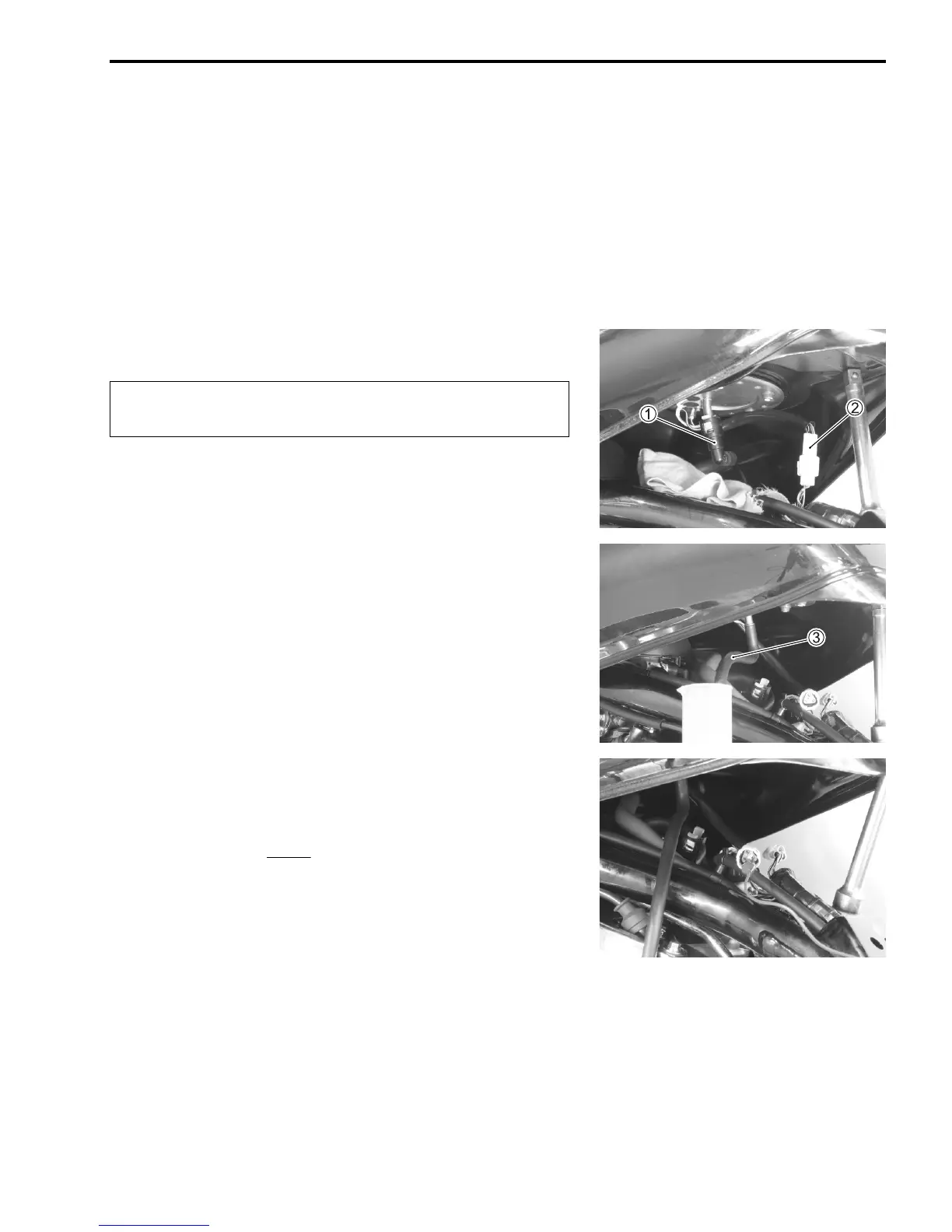

FUEL DISCHARGE AMOUNT INSPECTION
+
• Lift and support the fuel tank. ($14-93)
• Disconnect the fuel feed hose

1 from the fuel pump and fuel
pump lead wire coupler

2.
• Connect a proper fuel hose

3 to the fuel pump.
• Place the measuring cylinder and insert the fuel hose end into
the measuring cylinder.
• Connect a proper lead wire into the fuel pump lead wire cou-
pler (fuel pump side) and apply 12 volts to the fuel pump (Y/R
wire) for 10 seconds and measure the amount of fuel dis-
charged.
Battery

+ terminal (Yellow with red tracer)
If the pump does not discharge the amount specified, it means
that the fuel pump is defective or that the fuel filter is clogged.
! Fuel discharge amount: 168 ml and more/10 sec.
(5.7/5.9 US/Imp oz)/10 sec.
NOTE:
The battery must be in fully charged condition.
Gasoline is highly flammable and explosive.
Keep heat, spark and flame away.

Suzuki Intruder VL800 Specifications

General

Engine Type	4-stroke, liquid-cooled, SOHC, 45-degree V-twin
Displacement	805cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16M/C 67H
Rear Tire	170/80-15M/C 77H
Overall Height	1, 105mm (43.5 inches)
Wheelbase	1, 655 mm
Ground Clearance	140mm (5.5 inches)
Seat Height	700 mm (27.6 in)
