VL800K5 (’05-MODEL) 14-93
FUEL SYSTEM

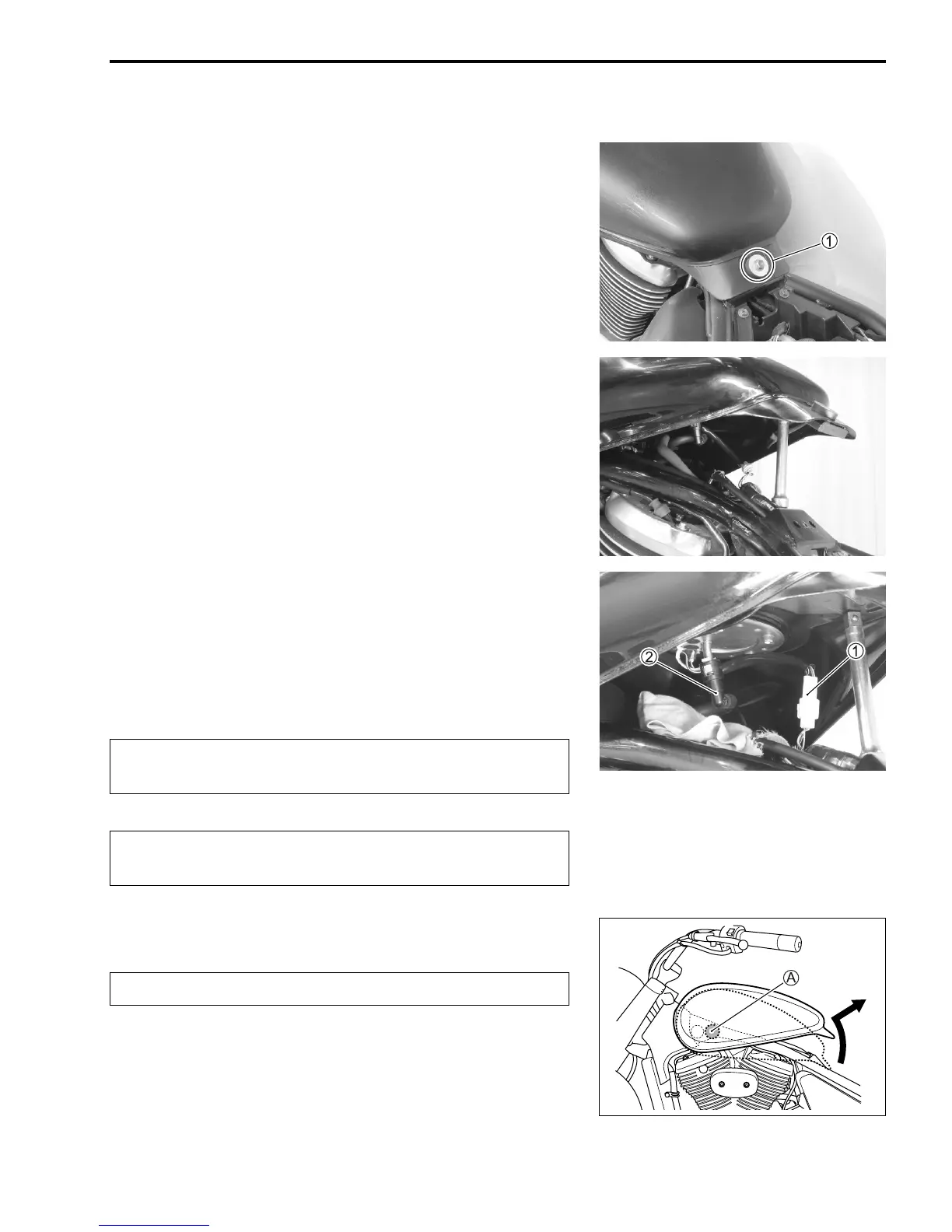

FUEL TANK LIFT-UP
• Remove the seat. ($7-2)
• Remove the fuel tank mounting bolt

1.
• Lift and support the fuel tank about 10 cm (3.94 in) with the
prop stay.
NOTE:
Be careful not to lift the fuel tank more than about 10 cm (3.94
in), or hoses will be twisted.
FUEL TANK REMOVAL
• Remove the speedometer. ($5-3)
• Lift and support the fuel tank. ($14-93)
• Disconnect the fuel pump lead wire coupler

1
• Place a rag under the fuel feed hose and remove the fuel feed
hose

2.
#
+
• Remove the fuel tank.
#
FUEL TANK INSTALLATION
• Installation is in the reverse order of removal.
When removing the fuel tank, do not leave the fuel
feed hose

2 on the fuel tank side.
Gasoline is highly flammable and explosive.
Keep heat, spark and flame away.
Be careful not to damage the frame

A by the fuel tank.

Suzuki Intruder VL800 Specifications

General

Engine Type	4-stroke, liquid-cooled, SOHC, 45-degree V-twin
Displacement	805cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16M/C 67H
Rear Tire	170/80-15M/C 77H
Overall Height	1, 105mm (43.5 inches)
Wheelbase	1, 655 mm
Ground Clearance	140mm (5.5 inches)
Seat Height	700 mm (27.6 in)
