Suzuki Intruder VL800 User Manual

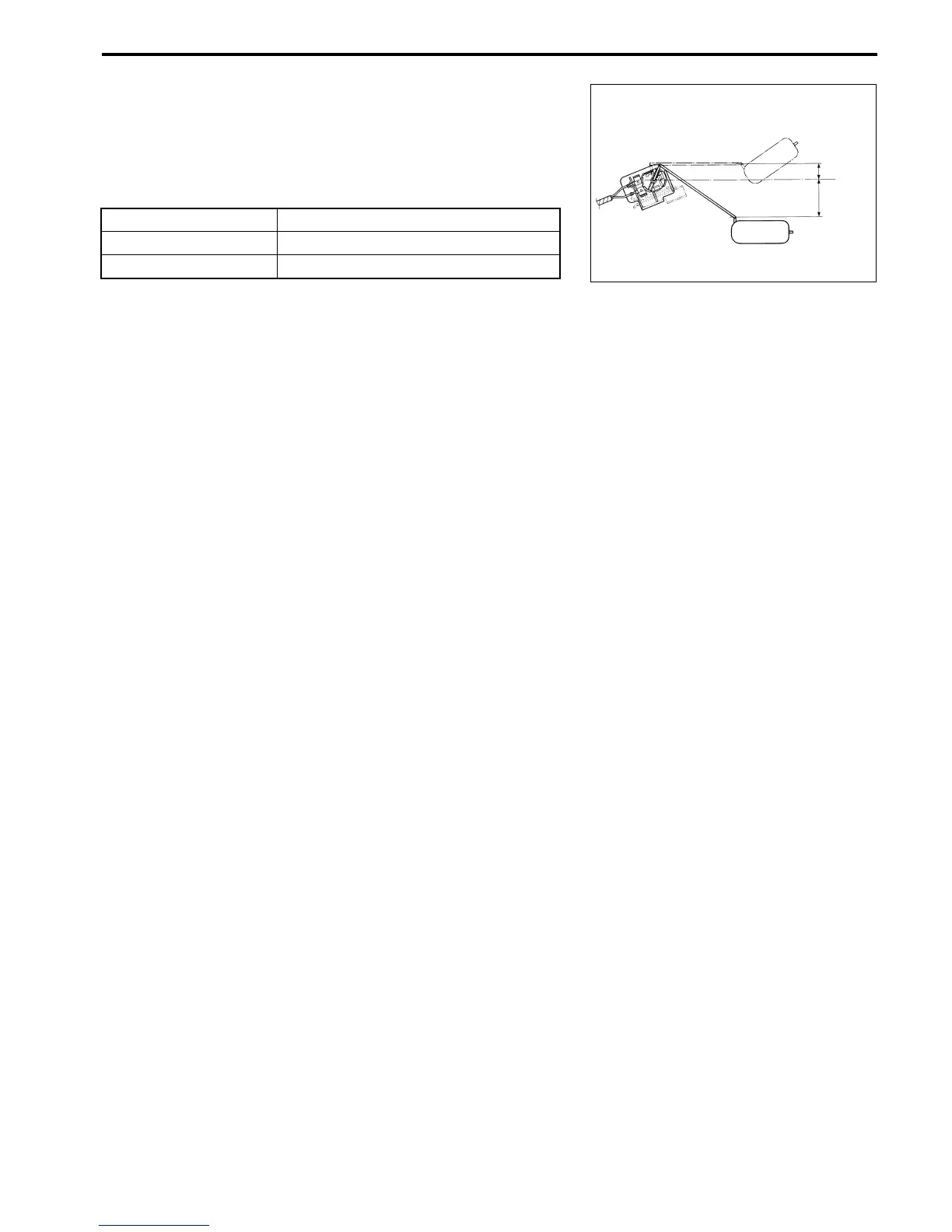

FUEL LEVEL GAUGE INSPECTION
• Remove the fuel level gauge assembly.
• Measure the resistance at each fuel level gauge float position.
If the resistance is incorrect, replace the fuel level gauge with
a new one.
' 09900-25008: Multi-circuit tester set
( Tester knob indication: Resistance (Ω)
Float position Resistance
19.5 mm (0.77 in) Approx. 10 Ω
45.9 mm (1.81 in) Approx. 216 Ω
19.5
(0.77 in)
45.9
(1.81 in)
E
F
VL800/TK7 ('07-MODEL) 17-15

Suzuki Intruder VL800 Specifications

General

Engine Type	4-stroke, liquid-cooled, SOHC, 45-degree V-twin
Displacement	805cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16M/C 67H
Rear Tire	170/80-15M/C 77H
Overall Height	1, 105mm (43.5 inches)
Wheelbase	1, 655 mm
Ground Clearance	140mm (5.5 inches)
Seat Height	700 mm (27.6 in)
