ELECTRICAL SYSTEM 8-11
Check the starter relay.
(! 8-13)
Incorrect • Faulty starter relay
Correct
• Poor contact of the starter relay
The starter motor runs when the transmission is in neutral, but does not run when the transmission is in
any position other than neutral, with the side-stand up.
Check the side-stand switch.
(! 8-14)
Incorrect • Fau ty side-stand switch
Correct
• Open circuit in wire harness
• Poor contact of connector
Others
Engine does not turn though • Faulty starter clutch
the starter motor runs.

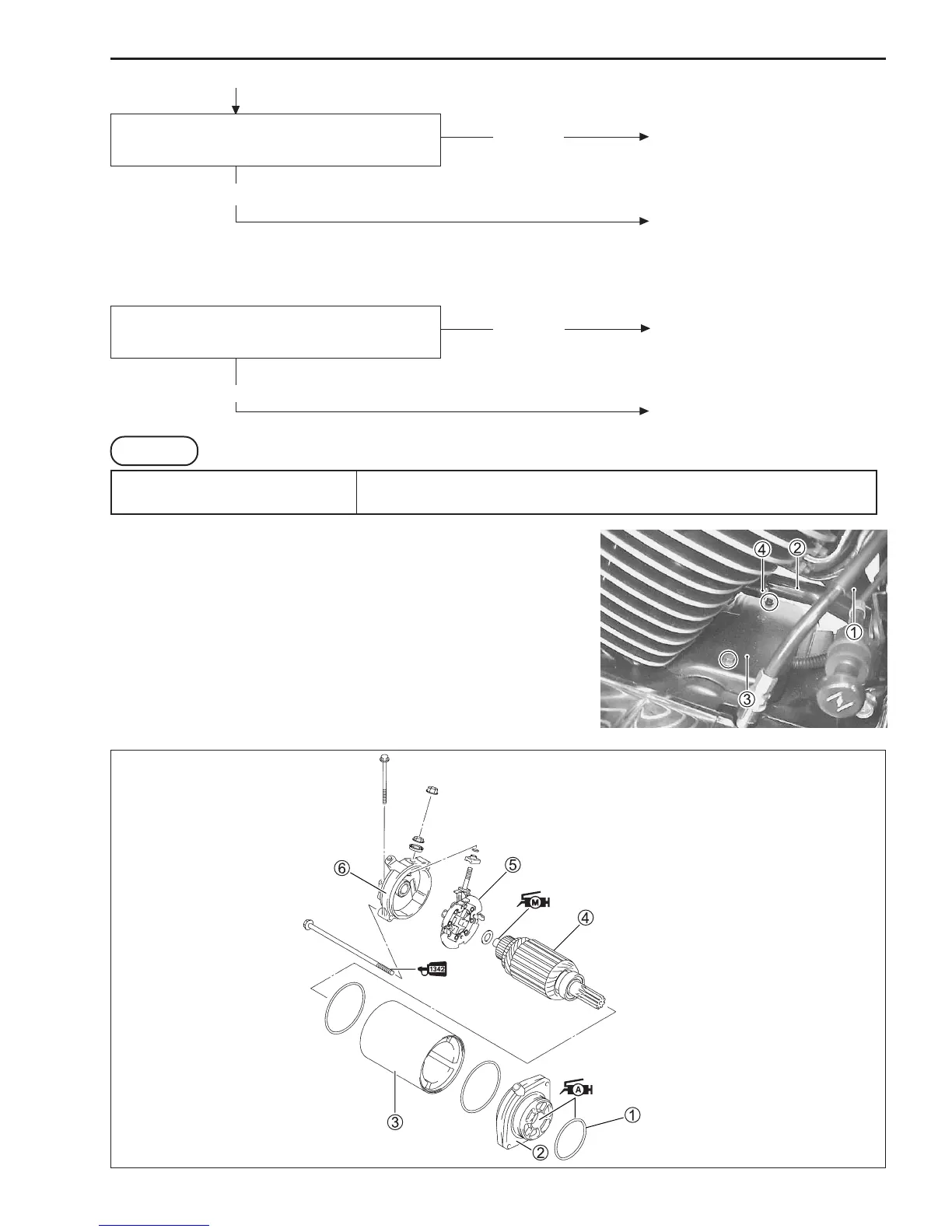

STARTER MOTOR REMOVAL AND
DISASSEMBLY
• Drain engine coolant. (!2-13)
• Remove the muffler (No.1) 1. (!3-5)
• Remove the engine coolant pipe 2. (!3-13)
• Remove the starter motor cover 3.
• Remove the engine coolant inlet 4.
• Remove the starter motor. (!3-14)
• Disassemble the starter motor as shown in the illustration.
1 O-ring
2 Housing end (inside)
3 Starter motor case
4 Armature
5 Brush holder
6 Housing end (outside)
