Swann AMI Oxytrace - Fluidics

AMI Oxytrace QED
Product Description
A-96.250.531 / 300617 11
Fluidics AMI Oxytrace

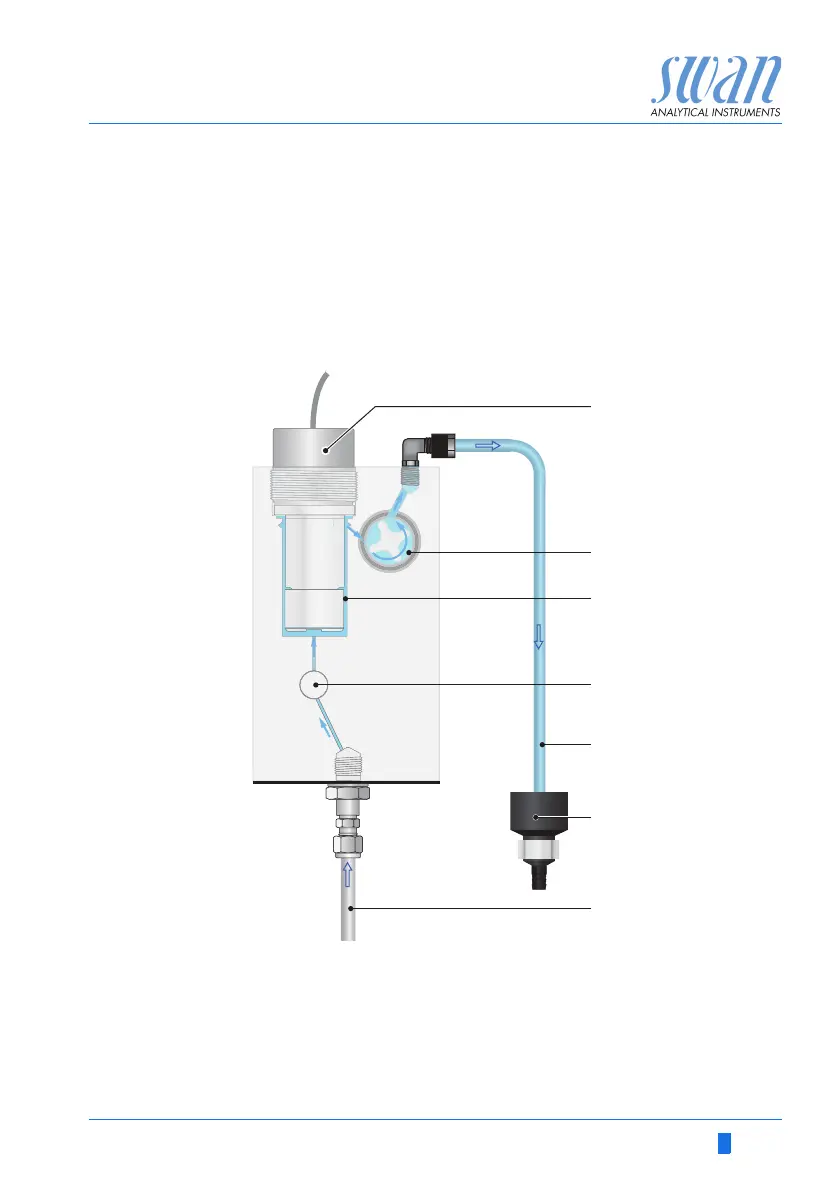

Swansensor oxygen combined with QV-flow PMMA OTG flow cell.
The sample flows via sample inlet [G] through the flow regulating
valve [D], where the flow rate can be adjusted. Then the sample
flows into the measuring cell [C] were the Oxygen concentration
and temperature of the sample is measured.
The sample leaves the measuring cell via flow sensor [B] through
the sample outlet [E] and the drain funnel [F].
A
B
C
D
Oxygen sensor
Flow sensor
Flow cell
Flow regulating valve
E
F
G
Sample outlet
Drain funnel
Sample inlet
A
B
C
D
E
F
G
