Swann AMI Oxytrace - Fluidics (AMI Oxytrace QED)

12 A-96.250.531 / 300617
AMI Oxytrace QED
Product Description
Fluidics AMI Oxytrace QED

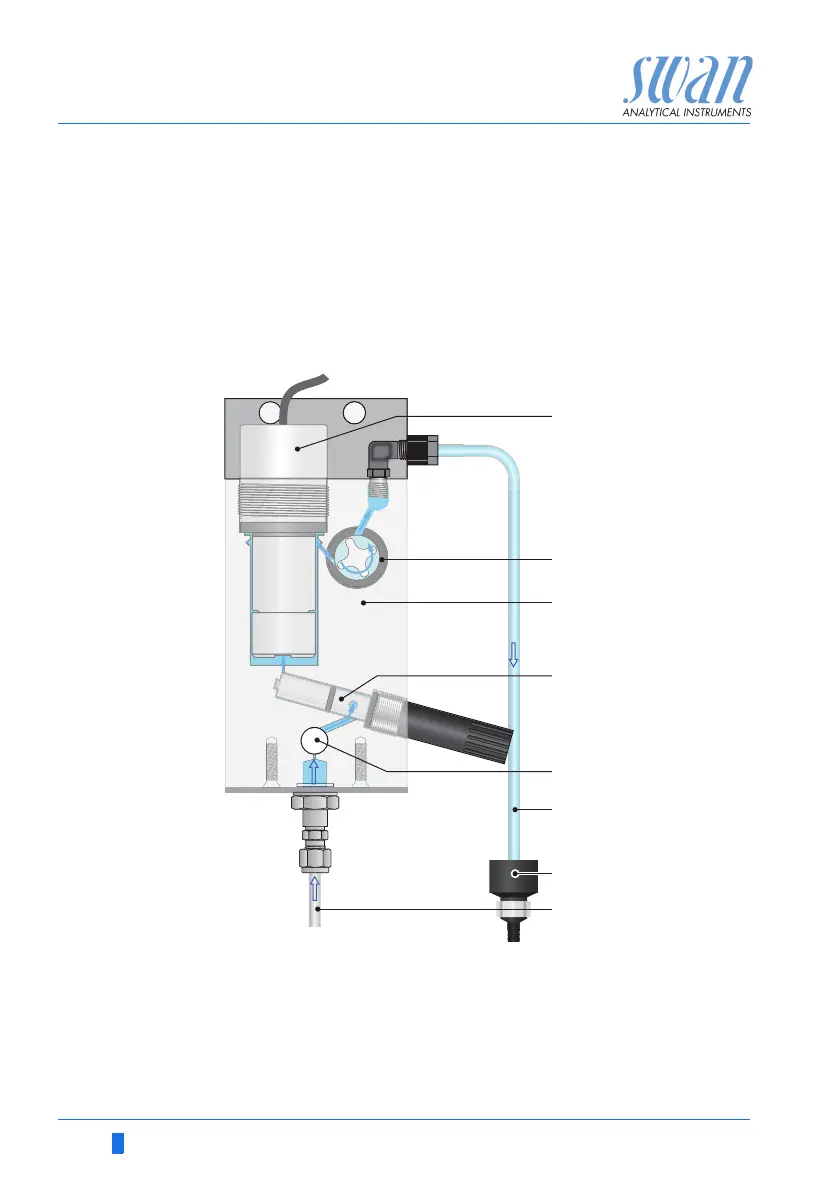

Swansensor oxygen combined with QV-flow PMMA OTG flow cell.
The sample flows via sample inlet [H] through the flow regulating
valve [E], where the flow rate can be adjusted. Then the sample
flows through the faraday electrode [D] into the measuring cell [C]
were the Oxygen concentration of the sample is measured.
The sample leaves the measuring cell via flow sensor [B] through
the sample outlet [F] and the drain funnel [G].
A
B
C
D
Oxygen sensor
Flow sensor
Flow cell
Faraday electrode
E
F
G
H
Flow regulating valve
Sample outlet
Drain funnel
Sample inlet
A
B
C
D
F
E
G
H
