AMI Powercon
Installation
A-96.250.341 / 061015 31
3.6. Input
Note:Use only potential-free (dry) contacts.
Terminals 16/42
For programming see Program Overview, p. 65.
3.7. Relay Contacts
3.7.1 Alarm Relay
Note:Max. load 1 A/250 VAC
Alarm output for system errors.
Error codes see Error List, p. 62.
NOTICE: With certain alarms and certain settings of the AMI
transmitter the alarm relay does not switch. The error, however,
is shown on the display.
1) usual use

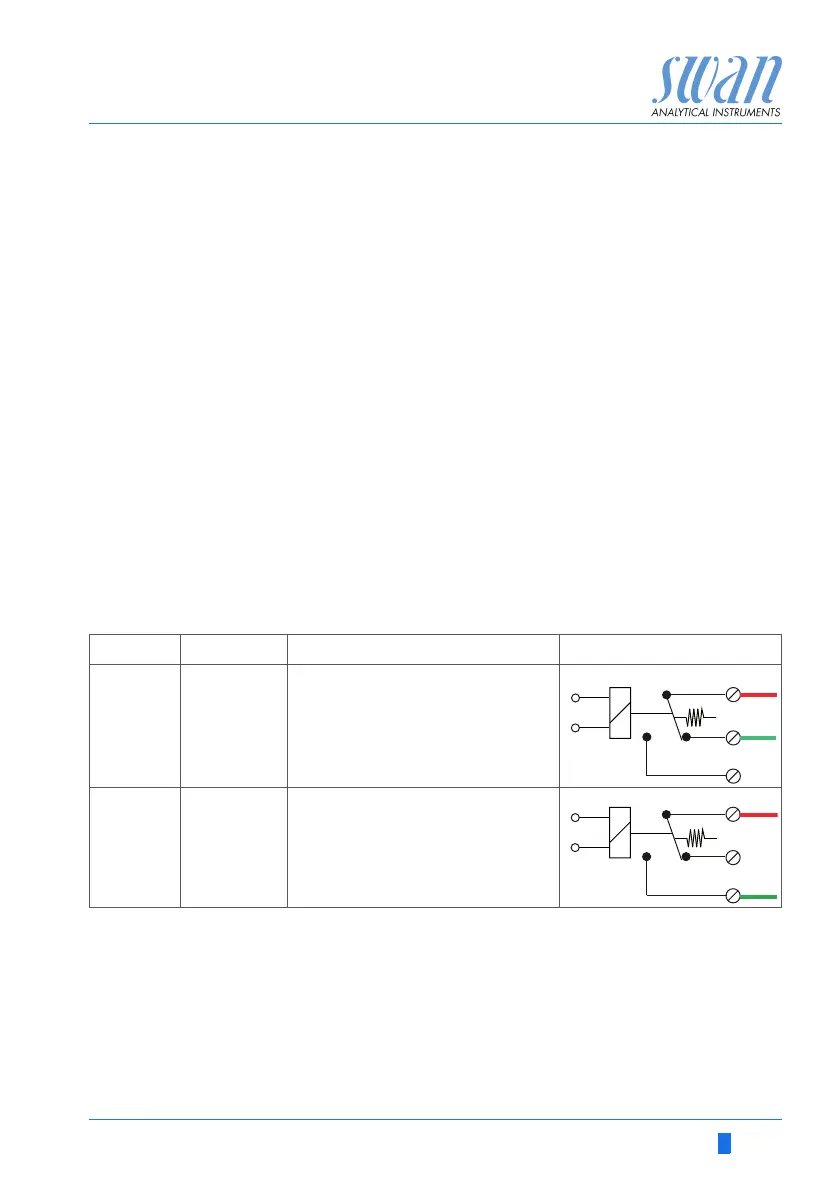

Terminals Description Relay connection
NC
1)
Normally
Closed
10/11 Active (opened) during normal
operation.
Inactive (closed) on error and
loss of power.
NO
Normally
Open
12/11 Active (closed) during normal
operation.
Inactive (opened) on error and
loss of power.
10
12
11
0V
1)
10
12
11
0V
