AMI Powercon
Installation
A-96.250.341 / 061015 35
3.9. Interface
3.9.1 Interface RS232
Terminal 50, 52, 53

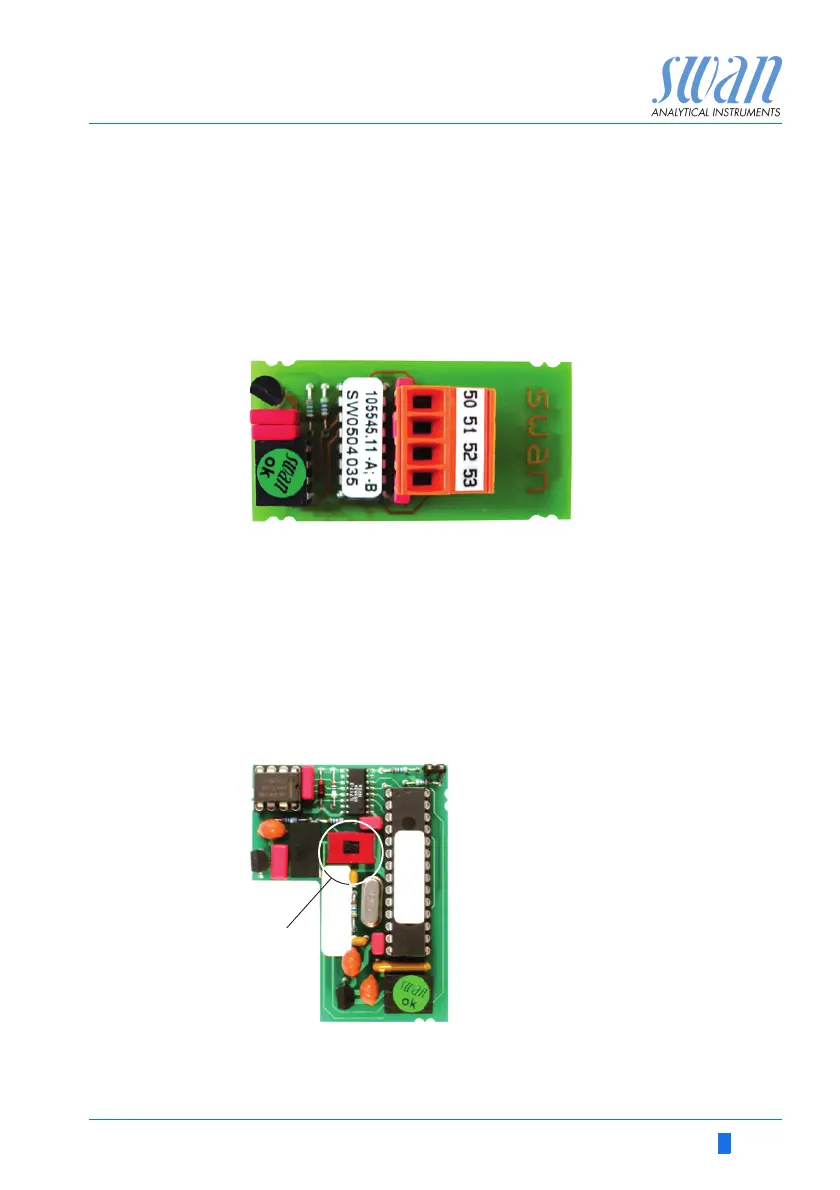

The AMI Interface RS232 PCB is used for Logger down load and
Firmware up load. For detailed information see the corresponding
manual “AMI RS232 Interface”.
RS232 Interface PCB
3.9.2 Interface RS485
Terminal 37 PB, Terminal 38 PA
To connect several instruments by means of a network or to config-
ure a PROFIBUS DP connection, consult the PROFIBUS manual.
Use appropriate network cable.
Note:The switch must be ON, if only one instrument is installed,
or on the last instrument in the bus.
RS485 Interface PCB
A On - OFF switch
PB-DPV1 V5.5
ON
OFF
81.420.020
Profibus
A
