Swann AMI Powercon - Sample Flow

AMI Powercon
Program List and Explanations
A-96.250.341 / 061015 75
5.2 Signal Outputs
Note:The navigation in the menu <Signal Output 1> and
<Signal Output 2> is equal. For reason of simplicity only the
menu numbers of Signal Output 1 are used in the following.
5.2.1 Signal Output 1: Assign process value, the current loop range and
a function to each signal output.
5.2.1.1 Parameter: Assign one of the process values to the signal output.
Available values:
 Conductivity
 Temperature
 Sample flow
 Cond. uc
5.2.1.2 Current Loop: Select the current range of the signal output.
Make sure the connected device works with the same current
range.
Available ranges: 0–20 mA or 4–20 mA
5.2.1.3 Function: Define if the signal output is used to transmit a process
value or to drive a control unit. Available functions are:
 Linear, bilinear or logarithmic for process values.
See As process values, p. 75
 Control upwards or control downwards for controllers.
See As control output, p. 77
As process
values

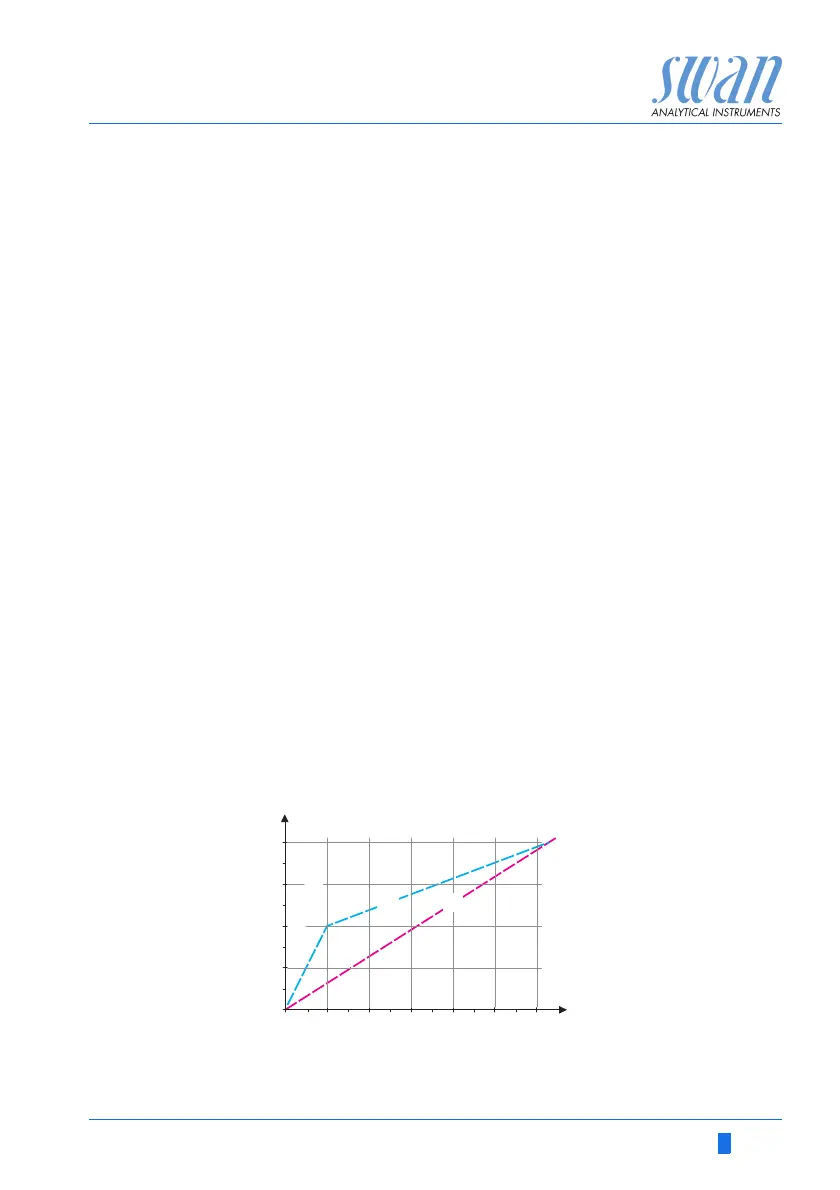

The process value can be represented in 3 ways: linear, bilinear or
logarithmic. See graphs below.
A
B
linear
bilinear
X Measured value
20
0.0 0.1 0.2 0.3 0.4 0.5
10 12
(0 - 20 [mA])
0 / 4
(4 - 20 [mA])
[mA]
X
AB
