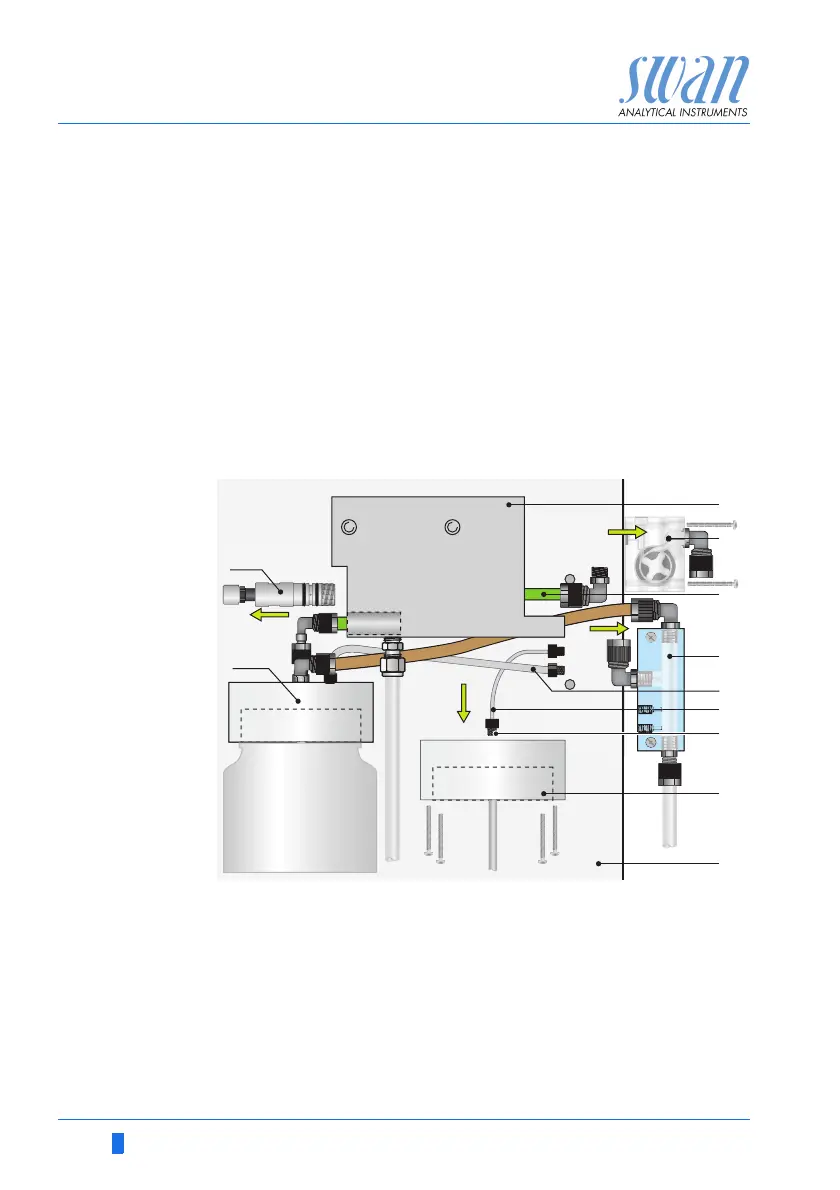

6.7. Replace the Deaeration Tubes
Depending on your application, it might be necessary to change the
deaeration tube, e.g. when contaminated with iron.
Note:There are two different tubes:
 The deaeration tube [F] of the cation exchanger bottle has an
inner diameter of 1 mm.
 The deaeration tube [E] of the pre-rinse bottle, has an inner
diameter of 2 mm.
Preparation 1 Close the main tap to stop the sample flow.
2 Remove cation exchanger bottle from the bottle holder [H].
A
B
C
D
E
F
Flow cell
Flowmeter
Pre-rinse inlet
Sample collector
Deaeration tube pre-rinse
bottle
Deaeration tube exchanger
bottle
G
H
I
J
K
Tube fitting
Bottle holder cation
exchanger bottle
Panel
Bottle holder pre-rinse bottle
Flow regulating valve
A
B
C
D
E
F
G
I
H
J
K
