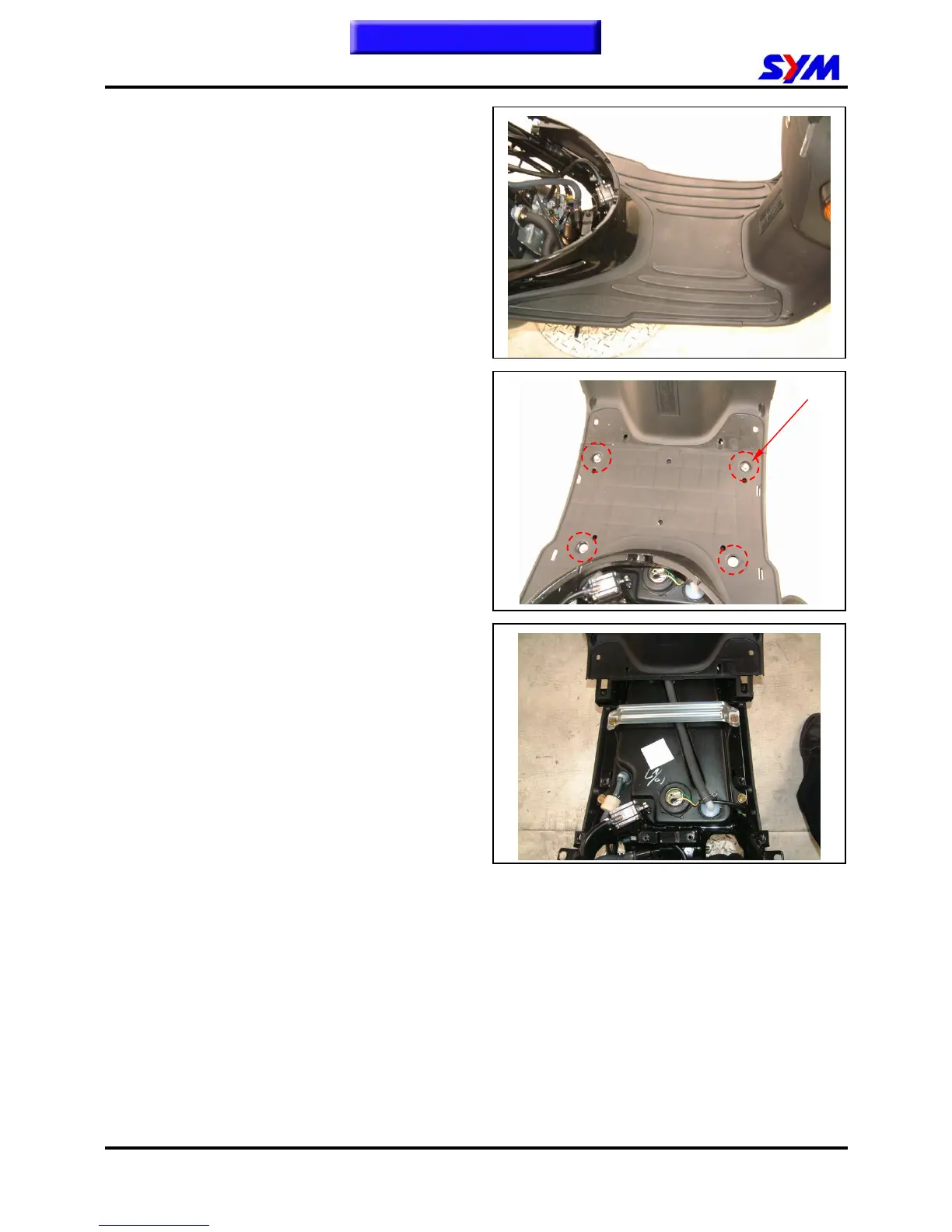

12. BODY COVER
12-8
Floor Panel
1. Removal:
y Remove the luggage box, rear carrier,
right / left side covers and body cover.
y Remove the floor panel mat.
y Remove the floor panel. (4 bolts)
2. Installation:
y Install in reverse order of removal
procedures.
Bolts
