2. SERVICE MAINTENANCE INFORMATION
2-7

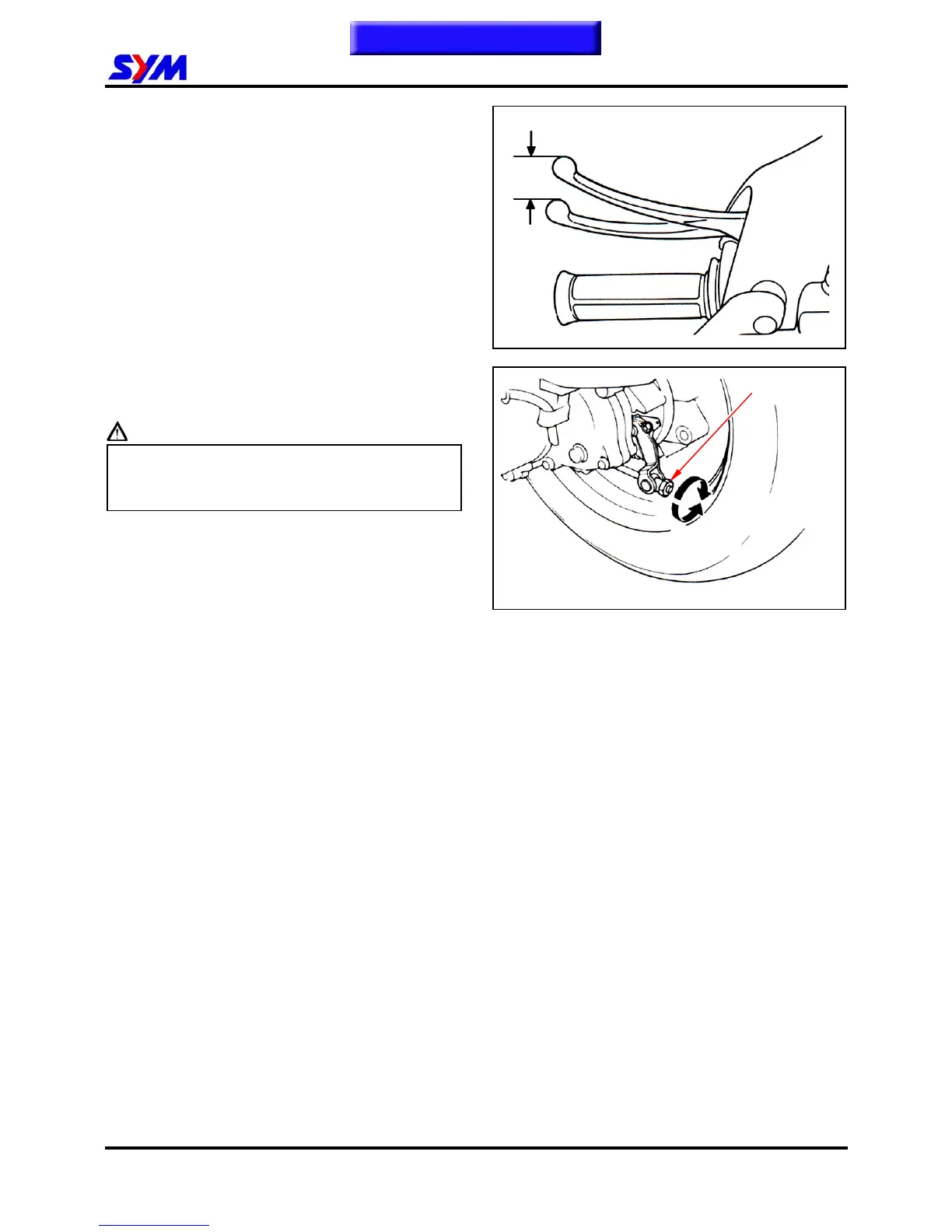

Rear Brake Free Play: (Drum Brake
Type)
Measure the free play of the rear brake lever at
the end of the lever.
Free play: 10-20 mm (3/8-3/4 in)
Adjust the free play by turning the front brake
adjustment nut if necessary.
Brake Confirmation
Caution
After brake adjustment, it has to check the
brake operation to make sure the front and rear
wheel can be braked.
10～20mm
(
3/8～3
/
4in
)
Adjustment nut
Increasing
free play
Decreasing
free play
This chapter Contents

Sym Fiddle 50 Specifications

General

Displacement	49.5 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	6.5 liters
Dry Weight	95 kg
Engine Type	4-Stroke
Transmission	CVT
