Sym Fiddle 50 User Manual

15. ELECTRICAL EQUIPMENT
15-17

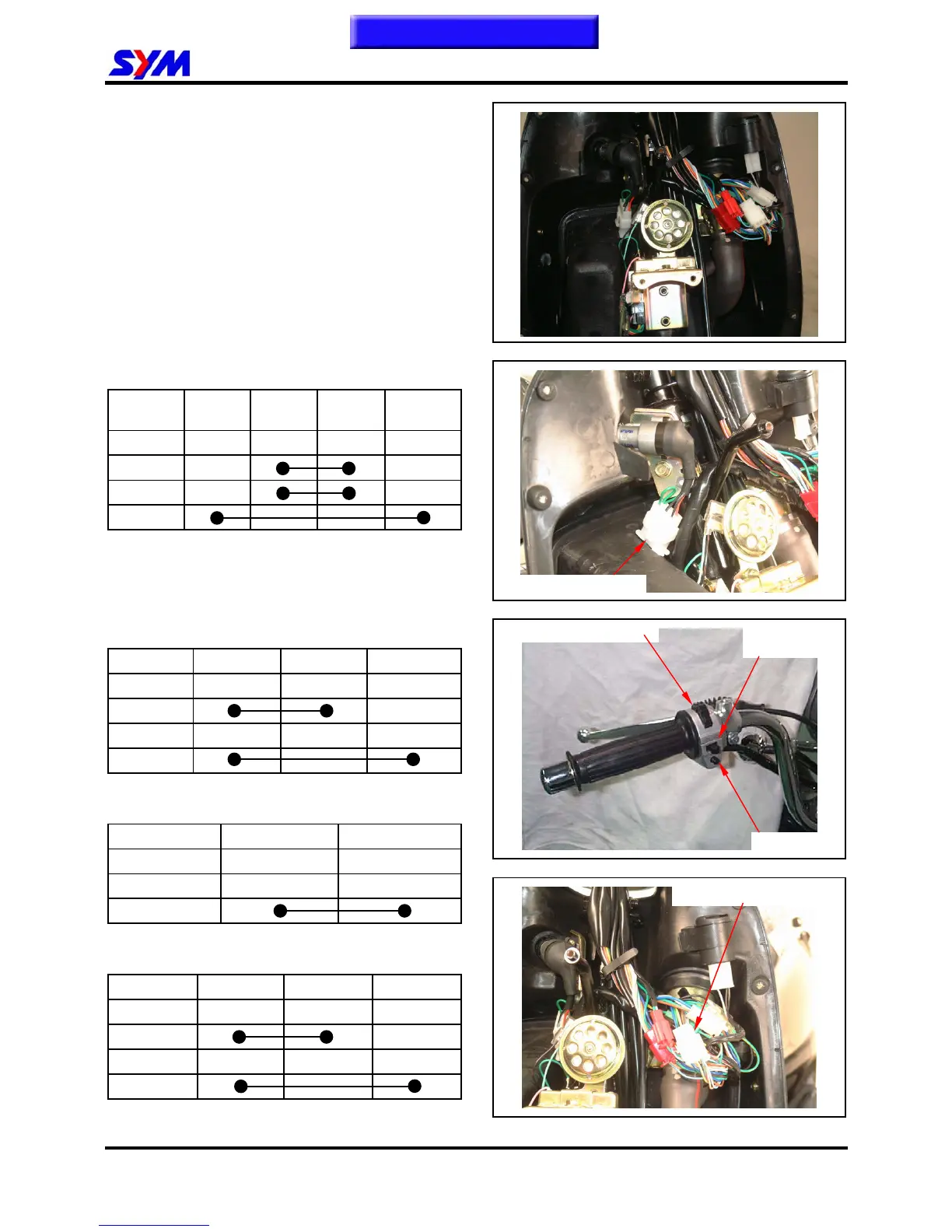

Switch / Horn
Remove front cover.
Check continuity on each switch.
The connected circles with a line are that they
should be in continuity.
Main Switch
Wire
color
Black
Black /
White
Green Red
Mark BAT2 IG E BAT1
LOCK
OFF
ON
Left Handle Switch
Winker light switch
Wire color Gray Sky blue Orange
Mark W R L
R
N
L
Horn switch
Wire color Light green Black
Mark HO BAT2
FREE
PUSH
High/Low beam switch
Wire color Brown White Blue
Mark HL LO HI
LO
(N)
HI
High / low beam switch
Winker light
switch
Horn switch
This chapter Contents
Main switch coupler
Left handle switch coupler

Sym Fiddle 50 Specifications

General

Displacement	49.5 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	6.5 liters
Dry Weight	95 kg
Engine Type	4-Stroke
Transmission	CVT
