Sym Fiddle 50 User Manual

15. ELECTRICAL EQUIPMENT
15-18

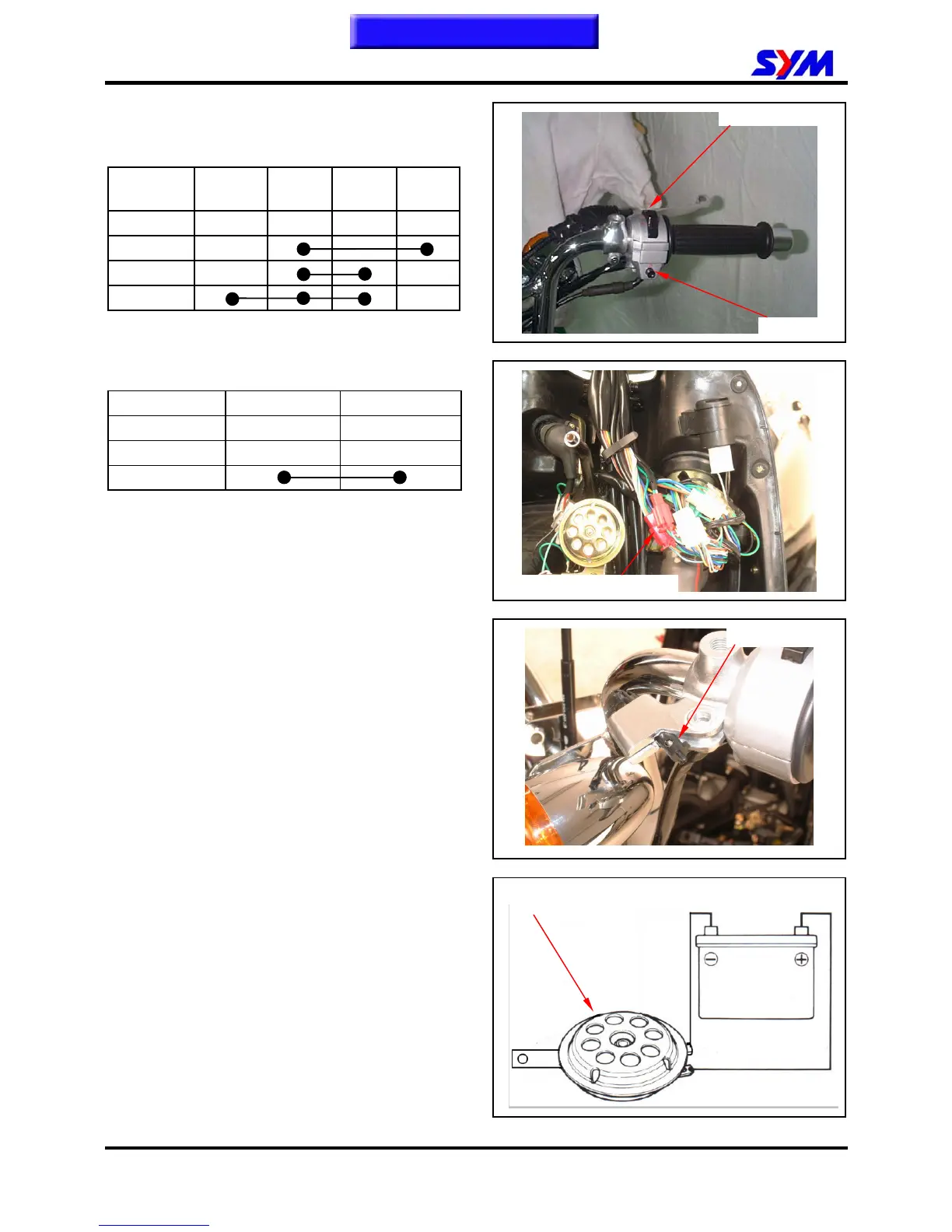

Right Handle Switch
Headlight switch
Wire color
Brown /
White
Yellow Brown Pink
Mark HL CI TL RE
OFF
P
H
Starter Switch
Wire color Yellow / Red Green
Mark ST E
FREE
PUSH
Front / Rear Brake Light Switch
If the switch is in continuity as braking, it is in
normal. The switch is non-adjustable.
Horn
If the horn give out sound as connecting to 12V
battery, it means that it is in normal.
Horn
This chapter Contents
Headlight switch
Starter switch
Right handle switch coupler
Brake Light Switch
