Sym Fiddle 50 User Manual

2. SERVICE MAINTENANCE INFORMATION
2-5

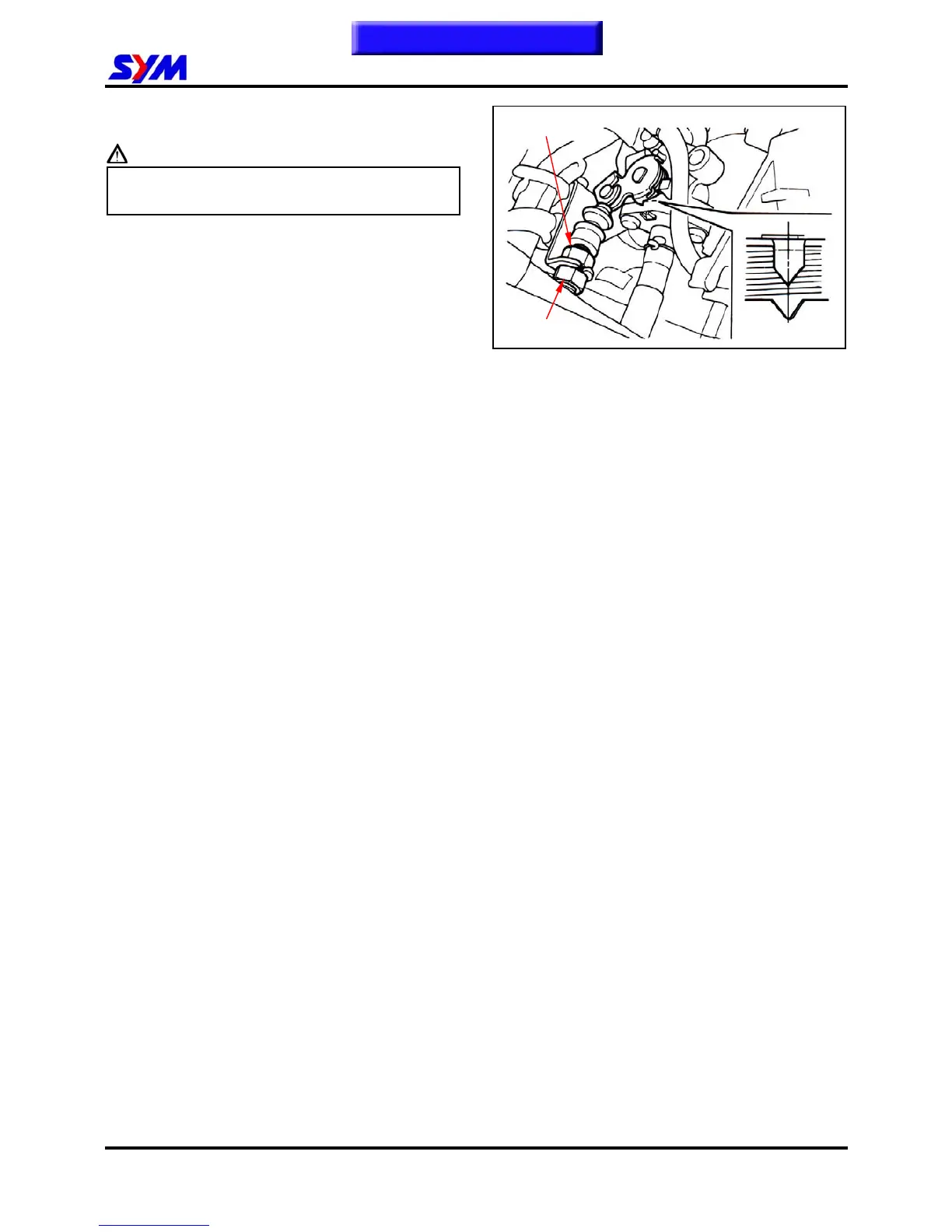

Oil Pump Control Cable
Caution
To adjust the oil pump control cable after
adjusted the throttle grip play.
Remove the body cover.
Wide open the throttle valve, and check if the
calibration point aligns on the oil pump lever with
the mark of pump body.
Loosen the adjustment nut of the oil pump control
cable.
Turn the adjustment nut and align with the point,
then tighten the nut.
Mounting nut
Adjustment nut
This chapter Contents

Sym Fiddle 50 Specifications

General

Displacement	49.5 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	6.5 liters
Dry Weight	95 kg
Engine Type	4-Stroke
Transmission	CVT
