Sym Fiddle 50 User Manual

7. “V” TYPE BELT DRIVE SYSTEM/KICK-STARTER
7-4

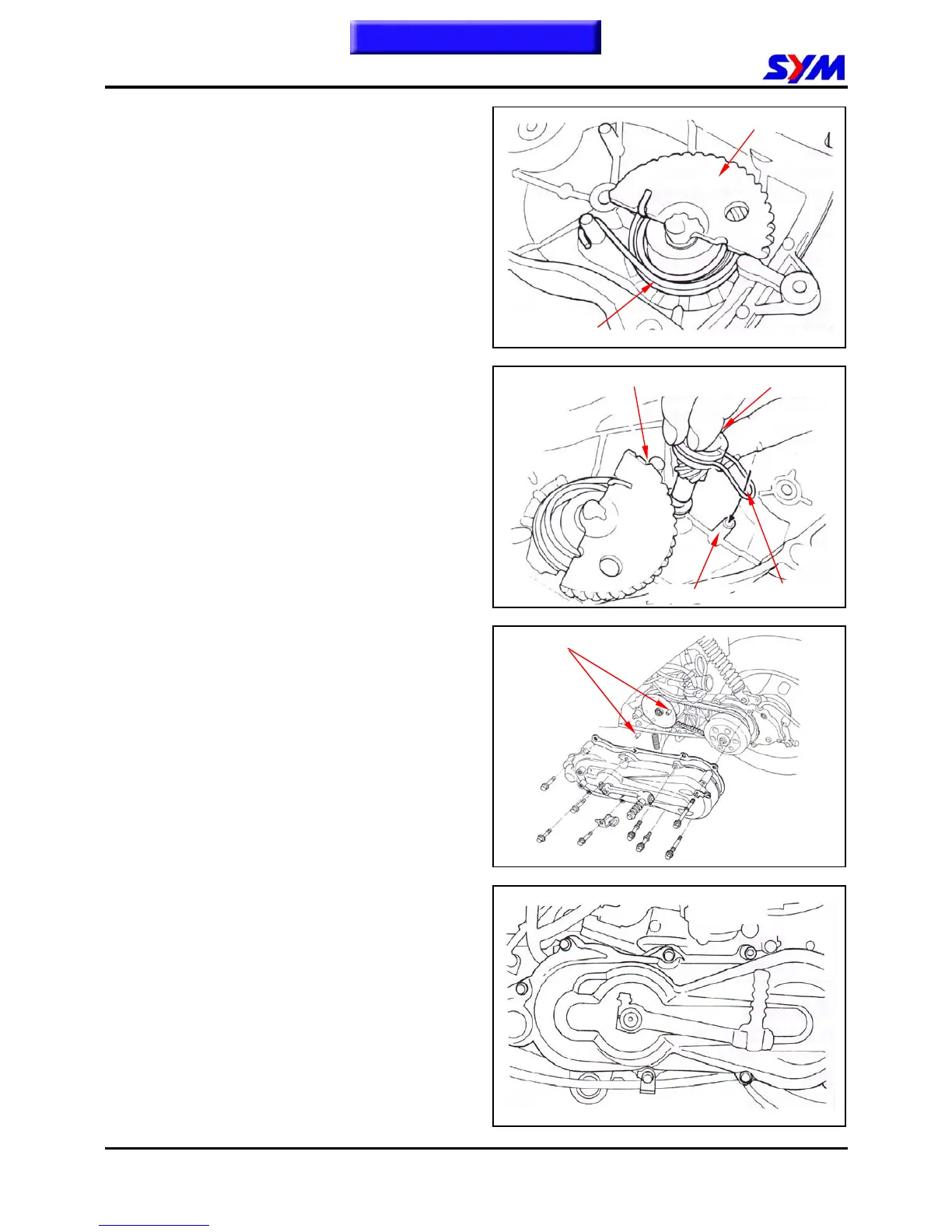

Reassembly of Kick Starter
Install bush, return spring and starter spindle as
diagram shown.
Install thrust washer and snap clip onto starter
spindle.
Install Kick starter lever temporary.
Slightly rotate the lever and then align driven
gear with width-tooth on the starter spindle.
Install the friction spring of drive gear onto
convex part of the cover.
Installation of the Left Crankcase
Cover
Install the dowel pin and gasket.
Install the left crankcase cover.
Install kick start arm.
Kick starter spindle
Convex part
Friction spring
Width-tooth
Return spring
Driven gear
Dowel pin
This chapter Contents

Sym Fiddle 50 Specifications

General

Displacement	49.5 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	6.5 liters
Dry Weight	95 kg
Engine Type	4-Stroke
Transmission	CVT
