Sym Fiddle 50 User Manual

14. REAR WHEEL/SUSPENSION
14-3

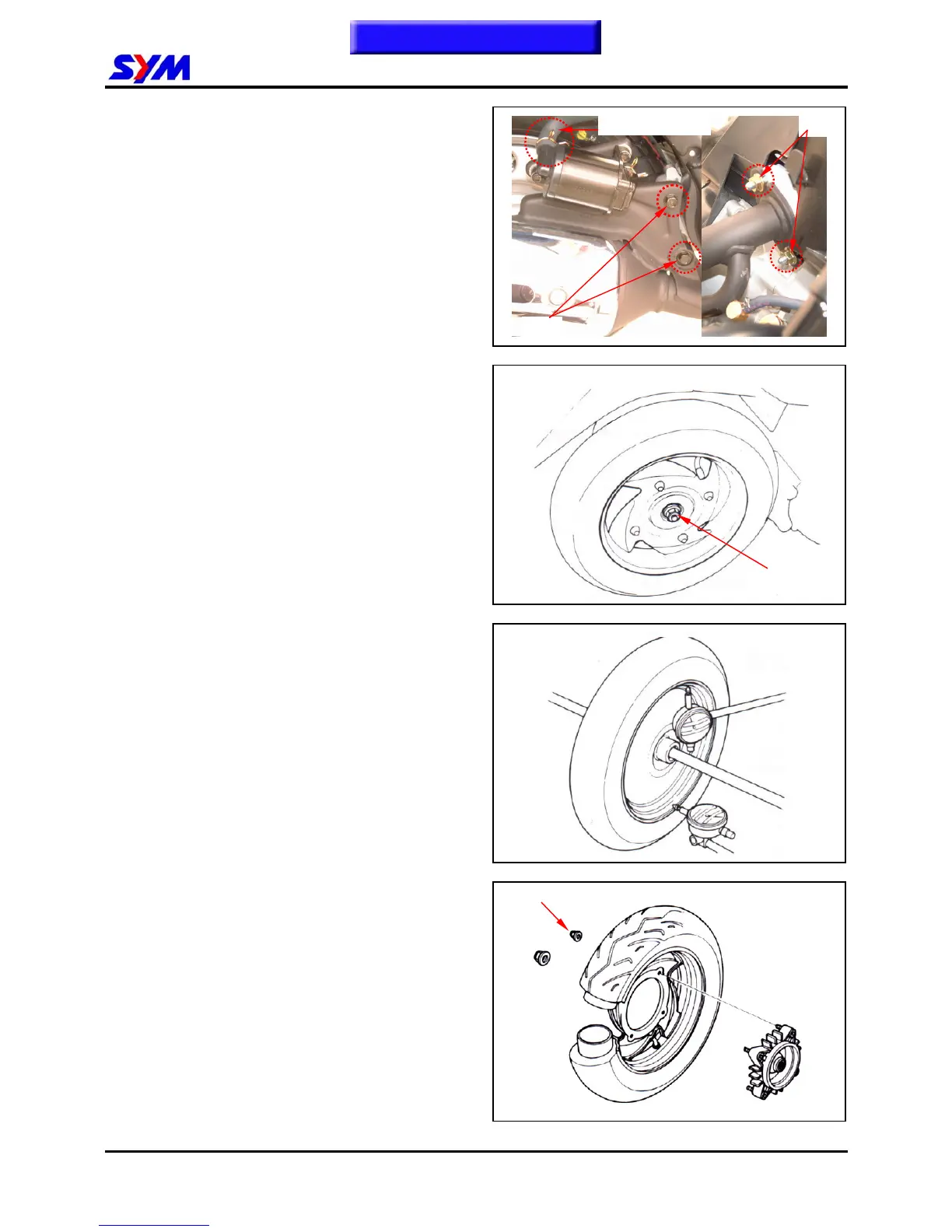

Rear Wheel
Remove
Remove AICV system hose.
Remove exhaust pipe nuts (2 nuts).
Remove exhaust muffler bolt (2 bolts), then
remove the muffler.
Remove rear wheel shaft nut and then remove
the rear wheel.
Inspection
As the diagram shown, measure wheel rim
wobbling with a dial gauge.
Service limit:
Radial: 2.0 mm (0.08 in)
Axial: 2.0 mm (0.08 in)
Brake Hub Replacement
Remove 4 nuts of cover and wheel rim, and then
remove the wheel hub.
Install the wheel hub and tighten the nuts.
Tighten torque: 2.3~2.7kgf-m
Bolts
Shaft nut
This chapter Contents
Hub nut
Nuts
AICV system hose

Sym Fiddle 50 Specifications

General

Displacement	49.5 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	6.5 liters
Dry Weight	95 kg
Engine Type	4-Stroke
Transmission	CVT
