10. FUEL SYSTEM
10-1
Maintenance Information··················10-2
Troubleshooting································10-2
Throttle Valve ····································10-4
Carburetor Remove···························10-5
Auto By-Starter··································10-5
Float/Float Valve/Jet ·························10-8
Flaot Level Inspection······················10-9
Carburetor Installation ·····················10-9
Reed Valve·········································10-9
Fuel Pump ·········································10-10
Air Cleaner·········································10-11
10

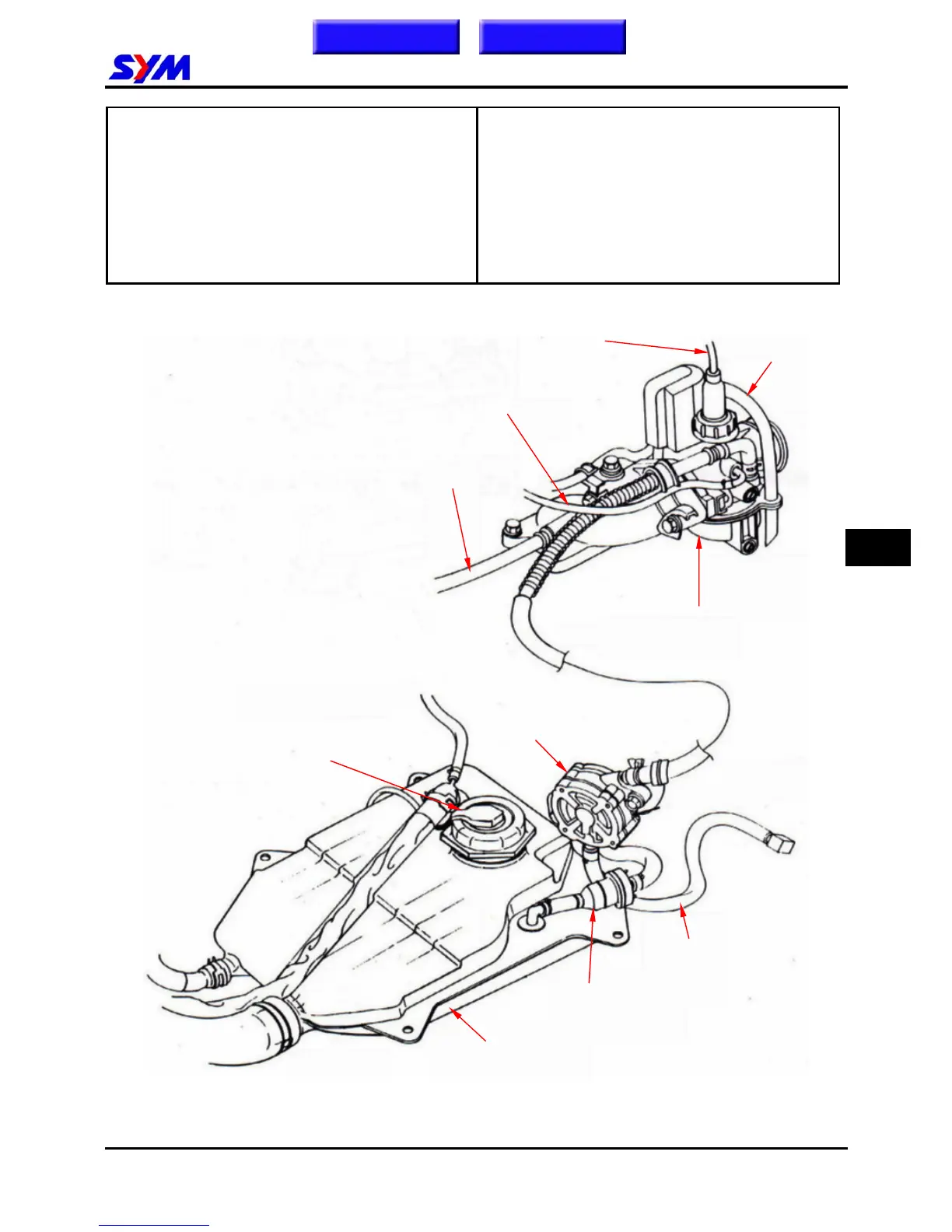

Fuel tank
Fuel unit
Fuel filter
Vacuum tube
Fuel pump
Carburetor
Oil tube
Air hose
Vacuum hose
Throttle valve cable
