Sym Fiddle 50 User Manual

12. BODY COVER
12-10
Front Inner Box

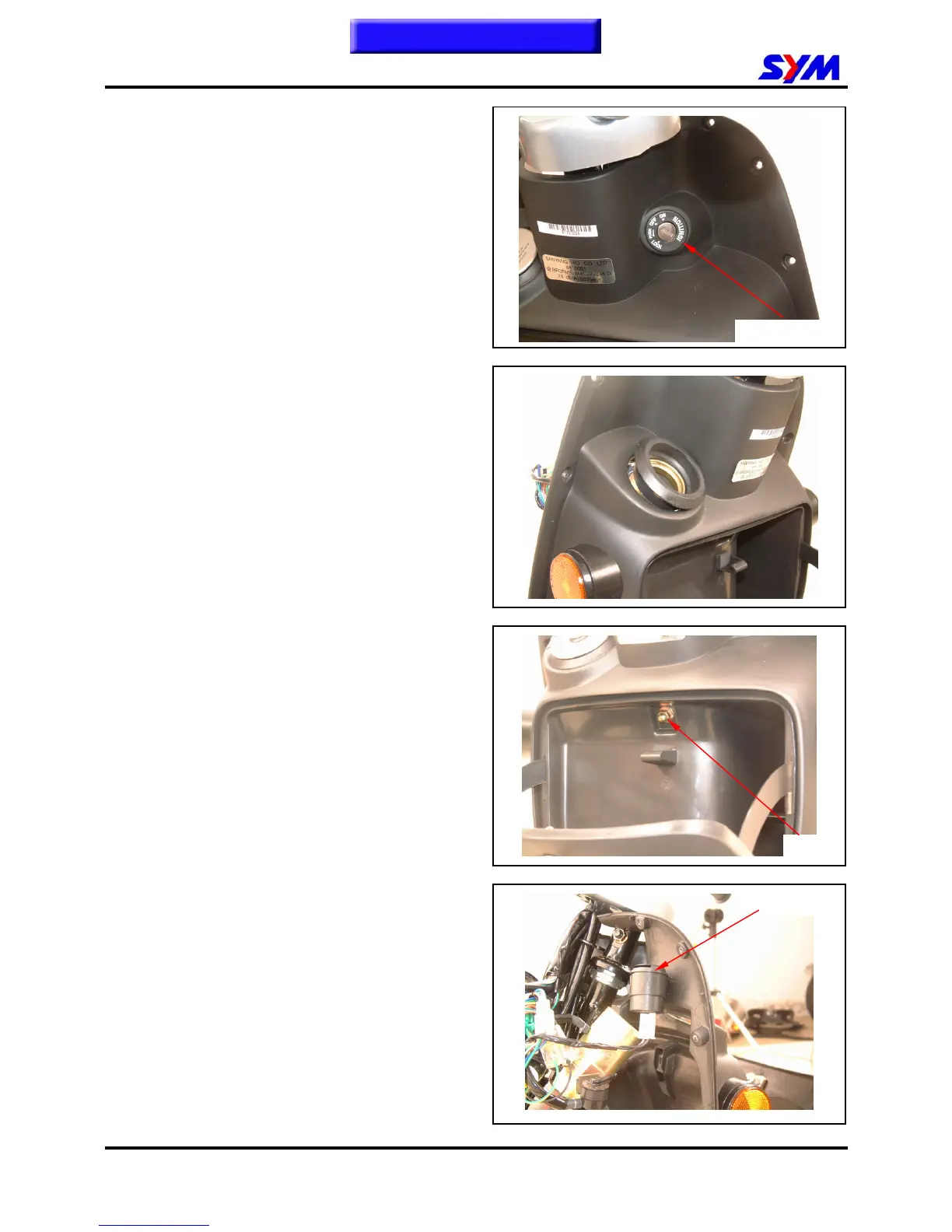

1. Removal:
y Remove the front cover.
y Remove the front under spoiler.
y Remove 2 bolts from the floor panel.
y The counter clock revolves main switch
cap and remove it
y Remove fuel tank cap and rubber.
y Open the inner box lid Remove 1 nut.
y Remove winker relay.
y Remove the front inner box.
2. Installation:
y Install in reverse order of removal
procedures.
Winker relay
Nut
Main switch cap
This chapter Contents

Sym Fiddle 50 Specifications

General

Displacement	49.5 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	6.5 liters
Dry Weight	95 kg
Engine Type	4-Stroke
Transmission	CVT
