Sym Fiddle 50 User Manual

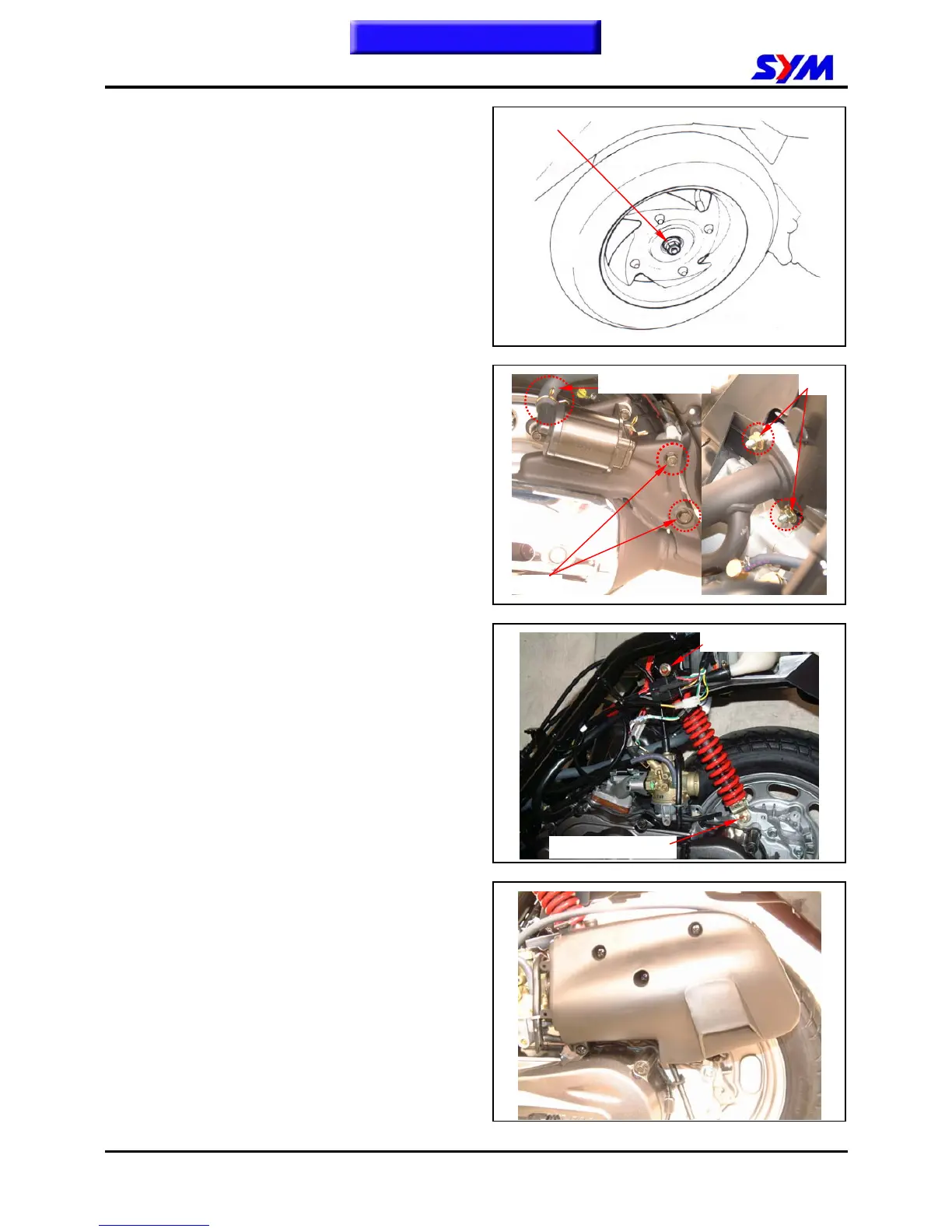

14. REAR WHEEL/SUSPENSION
14-4
Installation
Install the rear wheel and tighten the nut.
Tighten torque: 10.0~12.0kgf-m
Install exhaust pipe & muffler.
Install AICV system hose.
Tighten torque (bolt): 3.0~3.6kgf-m
Tighten torque (nut): 1.0~1.4kgf-m
Rear Cushion
Removal
Remove body cover.
Remove air cleaner.
Remove rear cushion upper & lower bolts.
Remove rear cushion.
Installation
Install the rear cushion.
Tighten the upper & lower mounting bolts to
specified torque.
Torque value:
Upper mounting bolt: 3.5~4.5kgf-m
Lower mounting bolt: 2.4~3.0kgf-m
Press down the tail of the scooter for several
times to check cushion operation.
Installation all components in reverse order of
removal procedures.
Install air cleaner.
Upper mounting bolt
Shaft nut
This chapter Contents
Lower mounting bolt
Bolts
Nuts
AICV system hose

Sym Fiddle 50 Specifications

General

Displacement	49.5 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	6.5 liters
Dry Weight	95 kg
Engine Type	4-Stroke
Transmission	CVT
