Sym Fiddle 50 - Under Cover; Rear Fender

12. BODY COVER
12-11

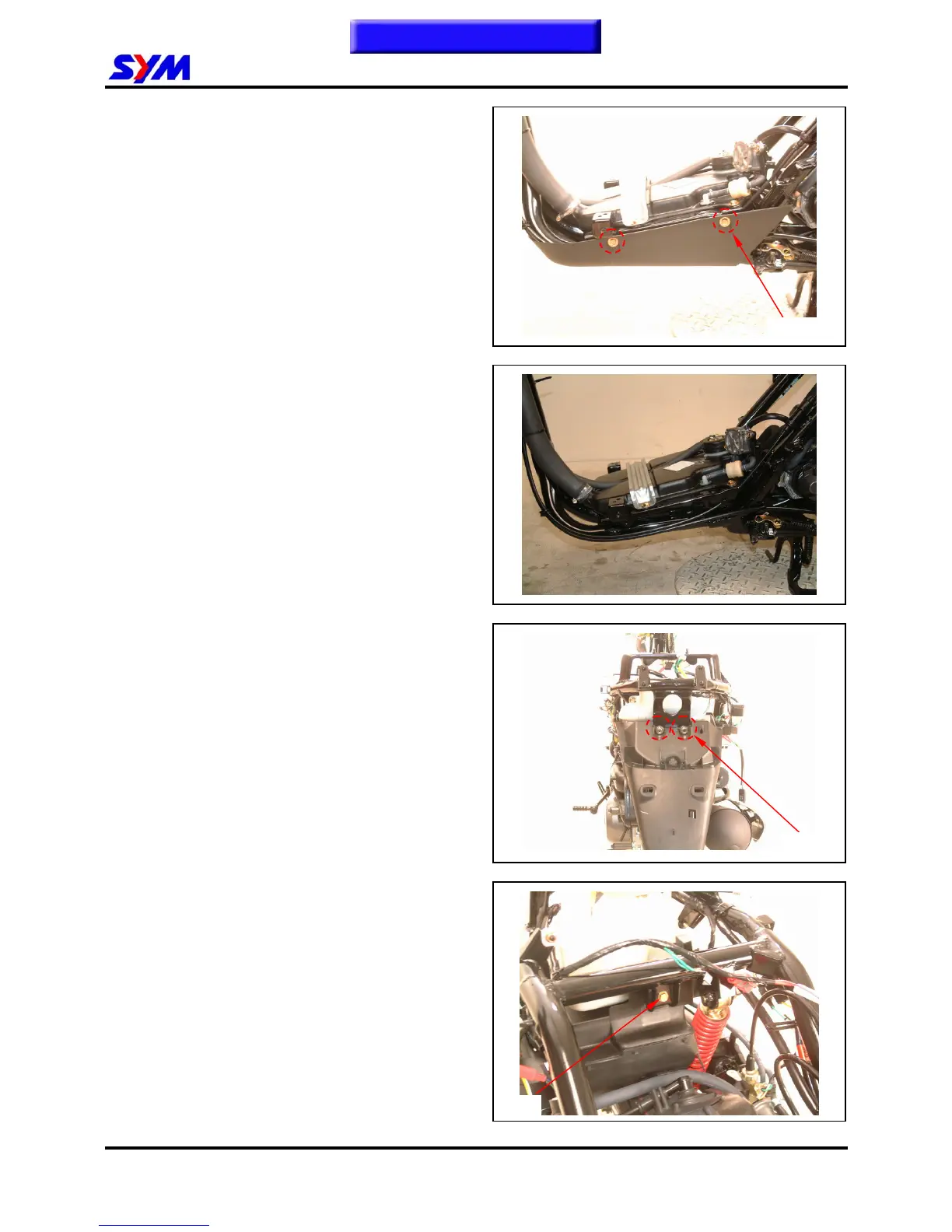

Under cover
1. Removal:
y Remove right / left side covers.
y Remove under cover right / left side 4
bolts.
y Remove the under cover (4 bolts)
2. Installation:
y Install in reverse order of removal
procedures.
Rear fender
Removal:
y Remove right / left side cover.
y Remove rear carrier.
y Remove luggage box.
y Remove body cover.
y Remove ignition coil.
y Remove 2 nuts from after rear fender.
y Remove 1 bolt from front rear fender then
remove the rear fender.
2. Installation:
y Install in reverse order of removal
procedures.
4 Bolts
2 nuts
