Sym Fiddle 50 User Manual

13. STEERING/FRONT WHEEL/SUSPENSION
13-12

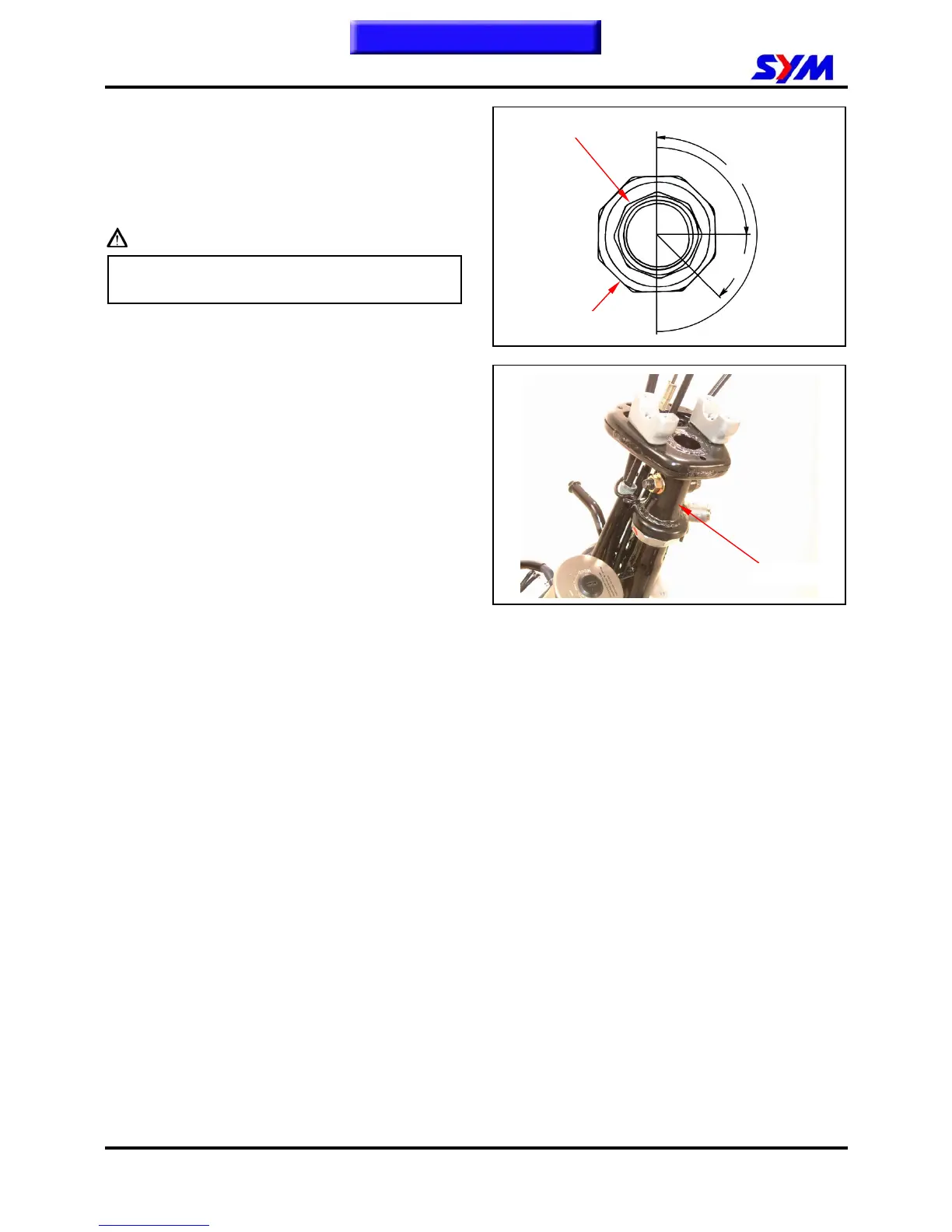

Lubricate the top cone race seat with grease.
Screw the cone race in to top ball bearing seat till
touching, and then screw out the cane race
1/4~3/8 turns.
Torque value: 0.25kgf-m
Caution
Check the steering stem that should be rotated
freely and no clearance in vertical direction.
Install the steering stem lock nut and tighten the
nut by means of holding the top cone race body.
Torque value: 1.5kgf-m
Install handle post.
Torque value: 4.0~5.0kgf-m
Install in reverse order of removal procedures.
Steering lock nut
Top cone-race
Return 1/2 turns
Locking to
1/4~3/8 turns
Handle post
This chapter Contents

Sym Fiddle 50 Specifications

General

Displacement	49.5 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	6.5 liters
Dry Weight	95 kg
Engine Type	4-Stroke
Transmission	CVT
